Description
This speaker package includes the DAS Audio EVENT-26A Ultra-Compact 2x6.5" Powered Line Array Module with 800 W peak Class D amplification, FIR filtering, and FSSTM rigging for precise coverage, paired with the EVENT-115A Powered 15" Subwoofer delivering 1200 W peak bass performance and compatible rigging for flown or stacked setups, along with the 3-Feet D.A.S. Combo Jumper Cable for quick power and audio linking, the JP-EV26 Joining Plate for secure array-to-subwoofer connections, and the INTEGRAL-M26X 1U DSP Processor featuring advanced EQ, delay, and remote control via ALMA software, completed with the PL-EV115S Transport Dolly for moving up to two EVENT-115A subwoofers and the PL-EV26S Transport Dolly for moving up to six EVENT-26A line array speakers with smooth-rolling casters.

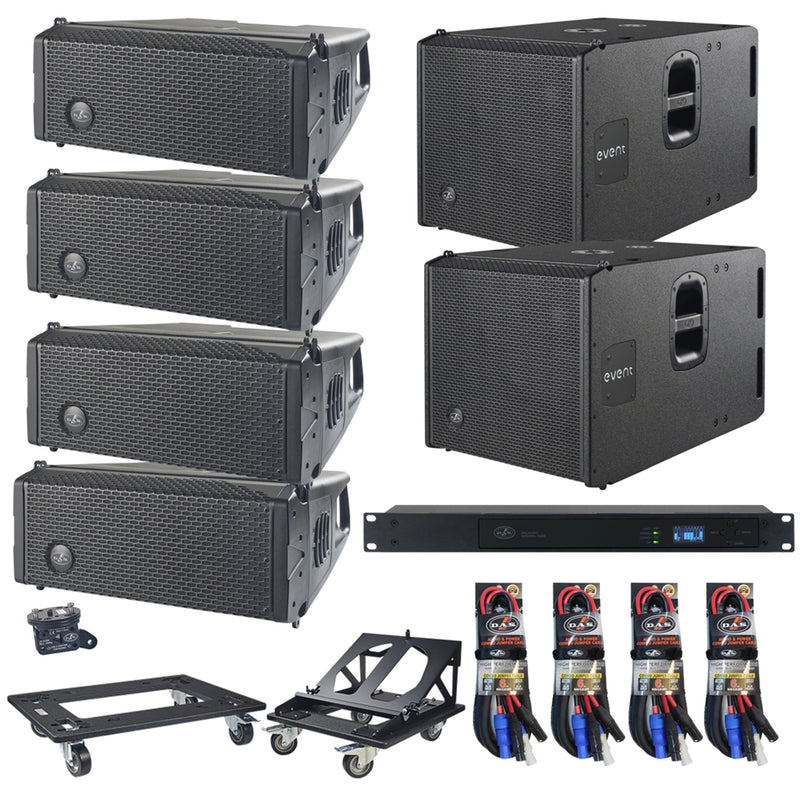

This Speaker Package Includes,
- 4 DAS Audio EVENT-26A, Powered 2-Way Compact Line Array Module - Black
- 2 DAS Audio EVENT-115A, Powered 15-Inch Bass Reflex Subwoofer System - Black
- 4 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable
- 1 DAS Audio JP-EV26, Joining Plate for Array Assembling EVENT-26A/EVENT-115A - Black
- 1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor
- 1 DAS Audio PL-EV115S, Wooden Transport Dolly for EVENT-115A - Black
- 1 DAS Audio PL-EV26S, Transport Dolly for Event-26A - Black
4 DAS Audio EVENT-26A, Powered 2-Way Compact Line Array Module - Black
The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.
The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric «V» shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.
Powered by a two-channel Class D amplifier providing 800 W peak power, the amp´s rear panel includes quality Neutrik XLR and powerCON connectors. The DAS control interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.
Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º. Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.
Product Specifications:
Frequency Range (-10 dB): 76 Hz -19 kHz
Horizontal Coverage (-6 dB): 100º
Vertical Coverage: Splay Dependent
Maximum Peak SPL at 1 m: 131 dB
Nominal Amplifier Power (continuous): 400 W
Nominal Amplifier Power (peak): 800 W
Input Type: Balanced
Input Impedance: 20 KOhms
Input Sensitivity: 6.2 V (+18 dBu)
Audio Signal Input Connector: 1 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
AC Output Connector: powerCON NAC3MPB
Current Draw 230 V / 115 V: 0.8 A/1.6 A
Enclosure Construction: Polypropylene
Enclosure Geometry: Trapezoidal
Rigging: Captive Rigging System
Color: Black
Dimensions (H x W x D): 8,9 x 18,9 x 19,1 in"
Net Weight: 16,5 kg (36,4 lbs)
Components:
LF Driver: 6MI
HF Driver: M-60
Carton Dimensions (H x W x D): 22,2 x 22,2 x 11,4 in"
2 DAS Audio EVENT-115A, Powered 15-Inch Bass Reflex Subwoofer System - Black
The EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.
The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 W program. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
Driving the DAS 15FW4 loudspeaker is a cutting-edge 1200 W peak Class D amplifier. On the rear panel, quality Neutrik XLR input connectors and stereo “loop thru” output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAS control interface on the rear of the cabinet, set-up of a complete systems is extremely easy.
The EVENT-115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.
Product Specifications:
Frequency Range (-10 dB): 40 Hz – 125 Hz
Maximum Peak SPL at 1 m: 131 dB
Nominal Amplifier Power (continuous): 600 W
Nominal Amplifier Power (peak): 1200 W
Input Type: Balanced
Input Impedance: 20 KOhms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
Control: DAS control
AC Output Connector: powerCON NAC3MPB
Current Draw 230 V / 115 V: 1.4 A/2.8 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: Captive Rigging System
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 18,9 x 19,1 x 30,3 in"
Net Weight: 37,0 kg (81,5 lbs)
Components:
LF Driver: 15FW4
Carton Dimensions (H x W x D): 20,9 x 21,7 x 33,9 in"
Shipping Weight: 40,5 kg (89,1 lbs)
4 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable
The 3-Feet D.A.S. Combo Jumper Cable is a specialty interconnect cable allowing you to quickly and easily pass power and audio signals between speakers. The jumper features a 14 AWG power cable with PowerCon connectors and a 16 AWG audio cable with XLR connectors.
Product Specifications:
Connectors: 2 x PowerCon, 2 x XLR
Cable Length: 3.0' / 0.9 m
Weight: 0.70 lbs
1 DAS Audio JP-EV26, Joining Plate for Array Assembling EVENT-26A/EVENT-115A - Black
The DAS Audio JP-EV26 is a joining plate specifically designed to facilitate the assembly of DAS Audio's EVENT-26A and EVENT-115A line array speaker systems. This black joining plate serves as a sturdy and secure connection point between two speaker cabinets. It features a metal construction for reliable support and allows for precise speaker positioning to achieve optimal sound dispersion and coverage in your desired listening area.
Product Specifications:
Type: Joining Plate for Line Array Speakers
Compatibility: DAS Audio EVENT-26A and EVENT-115A Speakers
Material: Metal
Color: Black
1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor
The D.A.S. Audio INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.
Remote control and monitoring are possible via ALMA software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.
The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers. External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA software.
Product Specifications:
Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level: +22 dBu
Max. Output Level: +22 dBu
Controls: Power On/Off, Navigation Buttons
Sampling Rate: 48 kHz
Display OLED: 1.54″
Cooling: Side-Right-to-Left
LED Indicators: On, Comms, Signal, Limit
AC Input Connector: IEC 15A
Power Supply: Universal Mains Switch Mode
Operating Range: 90 – 250 VAC
Analog Input Channels: 2
Analog Output Channels: 6
AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision: 32 Bit, 64 Bits Double Precision
Latency: 1 ms
Delay: 50ms per input / 135ms per output
Equalizer: Bell, Lo/Hi-Shelving, Hos
Crossover: Linkwitz-Riley, Butterworth, Bessel
High and Low Pass Filters: Up to 48 dB/oct
Limiters: RMS
Dimensions (H x W x D): 44 x 483 x 210 mm
1,7 x 19,0 x 8,3 in
Net Weight: 2,5 kg (5,5 lbs)
1 DAS Audio PL-EV115S, Wooden Transport Dolly for EVENT-115A - Black
The DAS Audio PL-EV115S is a wood and metal caster frame/transport dolly for transporting DAS ICON-S15A or EVENT-115A subwoofers (max 2). Stack up to two DAS Event-115A or Icon-S15A subwoofers on this flatbed dolly. Pre-installed casters make it easy to roll your DAS PA system out of the box.
Product Specifications:
Type: For DAS ICON-S15A or EVENT-115A
Color: Black
Shipping Weight: 24 lbs
Shipping Dimensions: 32 x 28 x 7 in
1 DAS Audio PL-EV26S, Transport Dolly for Event-26A - Black
The D.A.S. Audio PL-EV26S is a sturdy transport dolly designed specifically for moving up to six DAS Audio EVENT-26A line array speakers. It features a wooden frame with a black finish for a professional look and pre-installed casters for smooth rolling.
Product Specifications:
Compatible Speakers: DAS Audio EVENT-26A (max 6 units)
Color: Black
Dimensions (D x H x W): 35 x 20 x 15"
Weight: 60 lbs
·
