Description

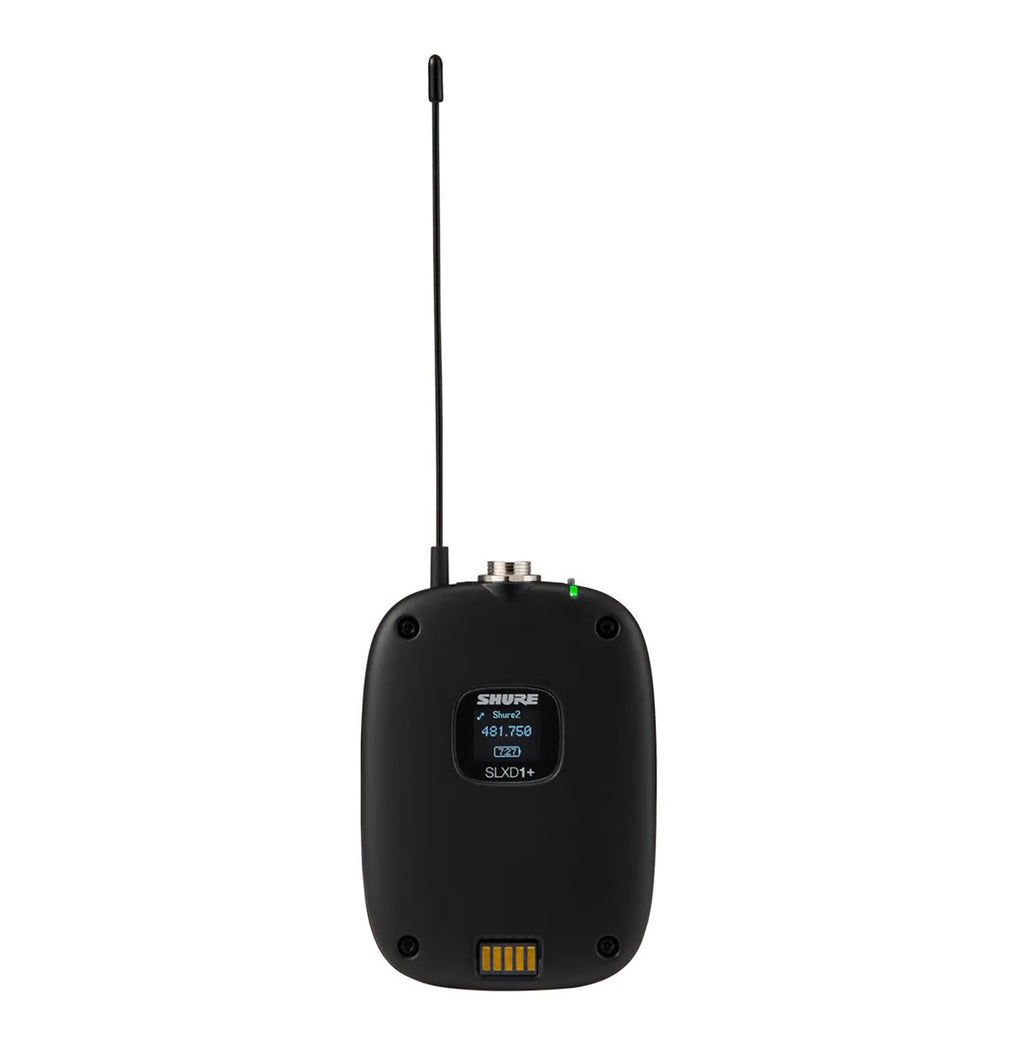

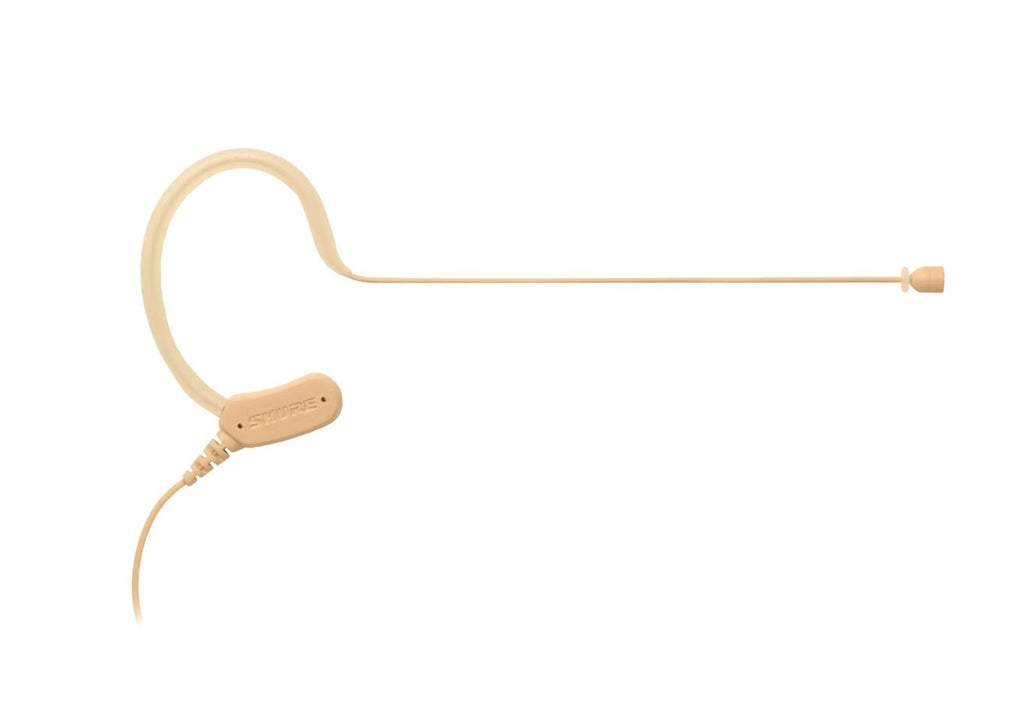

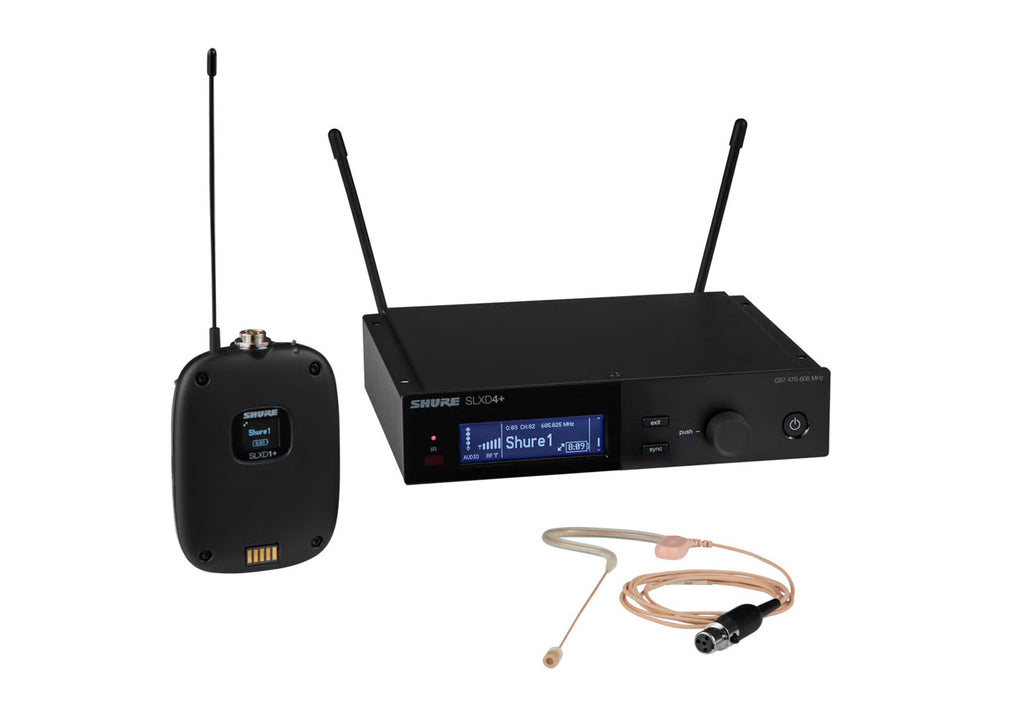

The Shure SLXD14+/153T wireless system features the SLXD1+ bodypack transmitter and the MX153T earset headworn omnidirectional microphone. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike that delivers wireless excellence, wherever required.
SLX-D+ delivers transparent 24-bit digital audio with greater than 118 dB dynamic range for clear, detailed sound in any environment. Its rock-solid RF performance and wide 138 MHz tuning range provide exceptional geographical coverage, supporting up to 11 simultaneous systems in 6 MHz TV bands or up to 14 systems in 8 MHz TV bands. Automatic Setup ensures that once receivers and transmitters are linked, they remain securely connected—even in the presence of RF interference.
Advanced Control, Built-In Security
With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including changing frequencies when an open channel is identified, adjusting power levels, locking or unlocking controls, and performing firmware updates. Monitor RF status and control system settings via Wireless Workbench desktop software or the WWB Mobile app over Wi-Fi or Bluetooth. Each receiver features patented Digital Feedback Reducer technology from Shure to automatically minimize unwanted feedback. Every SLX-D+ system includes AES-256 encryption for secure operation and offers up to 8 hours of use with included AA batteries or optional SB903 Li-ion rechargeable batteries and charging accessories.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:

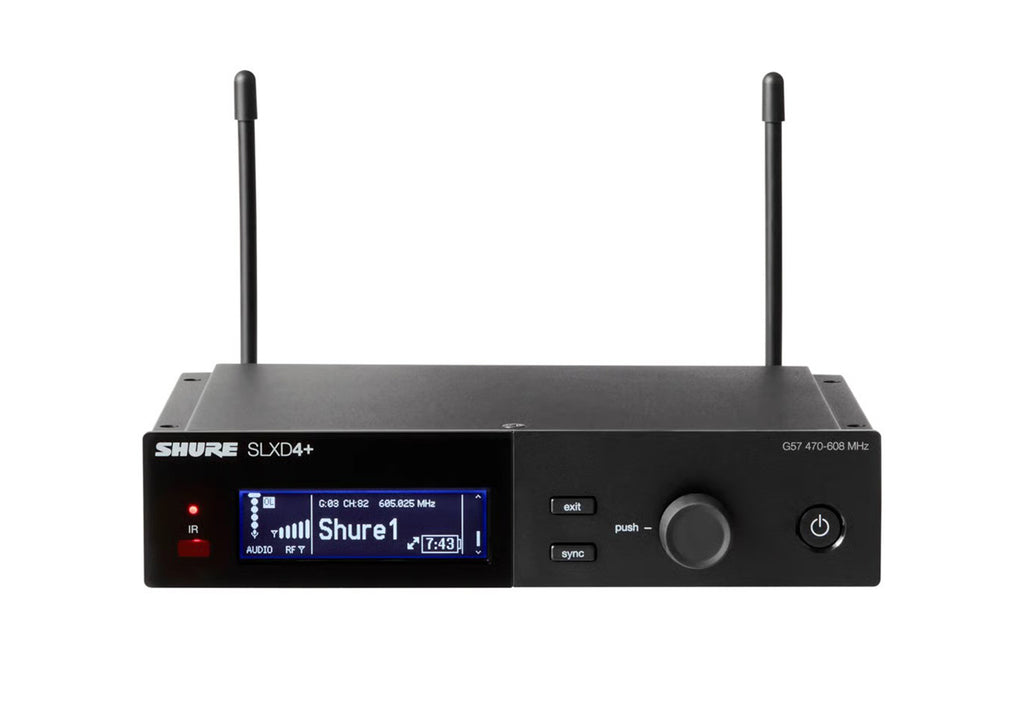

Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Removable
Number of Audio Channels: 1
Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4"" TS Unbalanced Output
Network I/O: 1x RJ45
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: AC Input
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: No Microphone Included
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing:
Steel (Receiver)
ABS (Bodypack Transmitter)
Dimensions: Receiver: 7.8 x 6 x 1.7"" / 197 x 152 x 42 mm
Bodypack Transmitter: 3.9 x 2.7 x 1"" / 98 x 68 x 25.5 mm
Weight: Receiver: 2 lb / 900 g (without Antennas)
Bodypack Transmitter: 3.1 oz / 89 g"
Shipping Weight: 7 lbs.
Shipping Dimensions (LxWxH): 17.8 x 14.5 x 4.3""
