Description
The Shure SLXD1+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

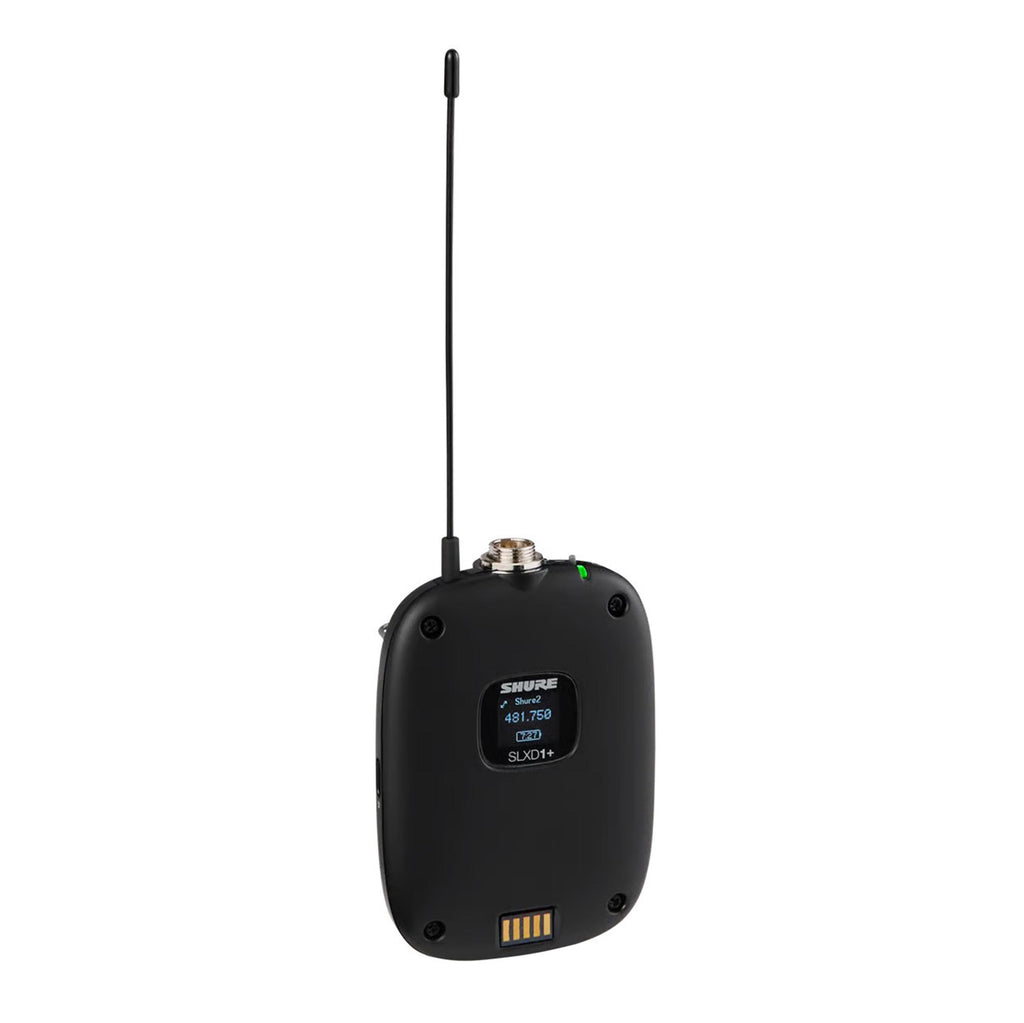

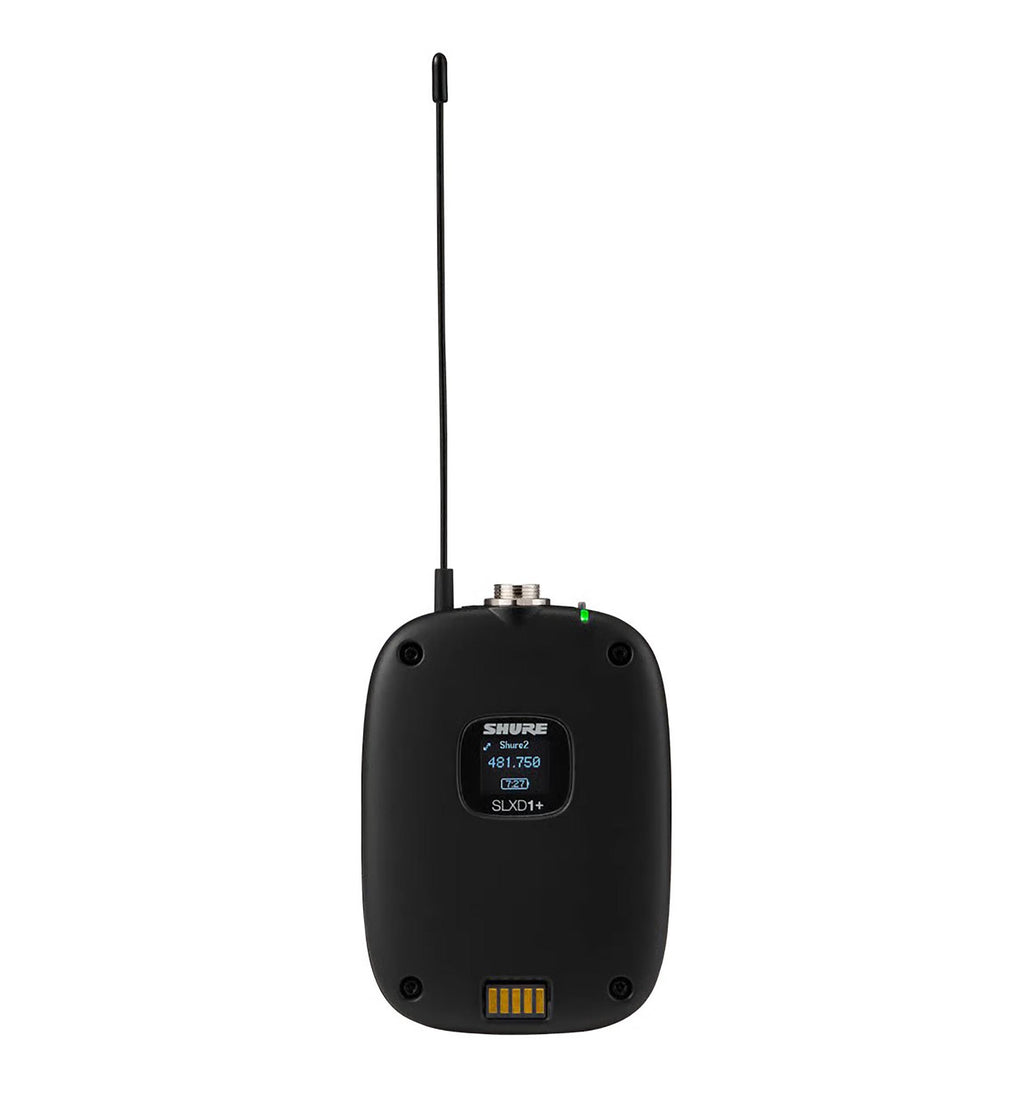

Compact Bodypack Design with TA4M Input

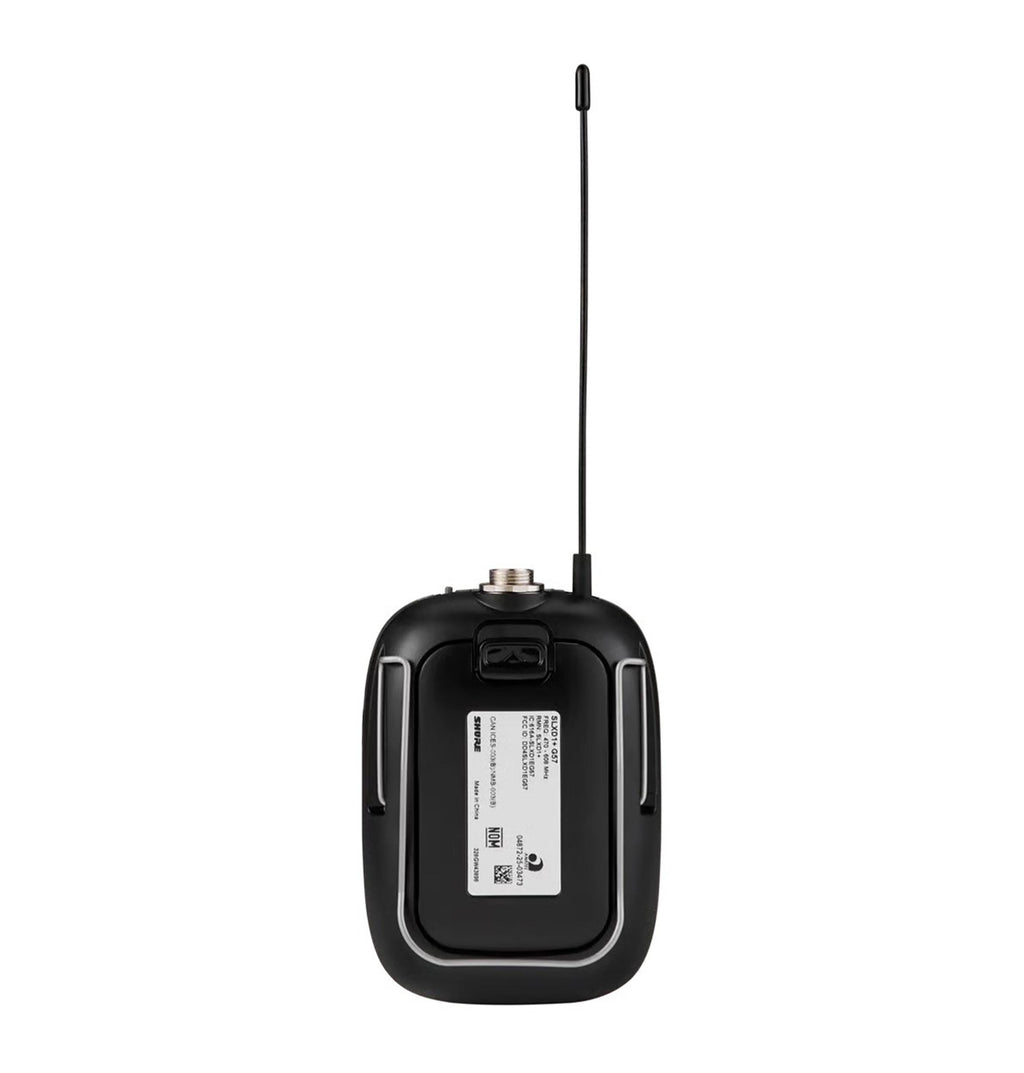

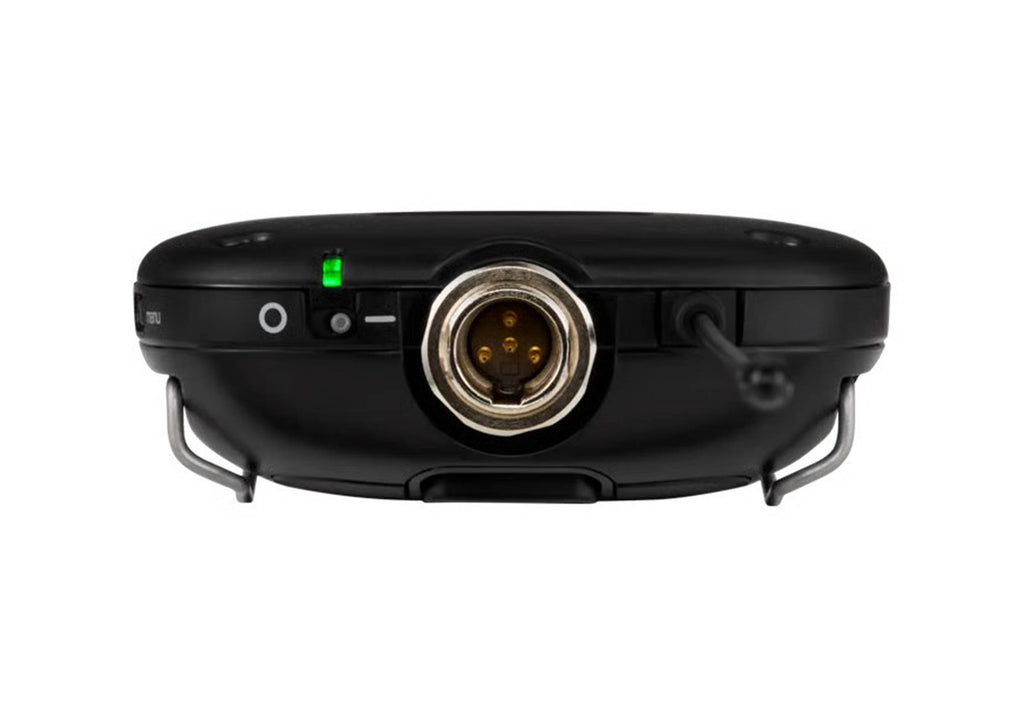

The SLXD1+ features a lightweight, low-profile ABS chassis with an integrated belt clip for comfortable, discreet wear. A locking TA4M connector supports a wide range of compatible lavalier, headset, and instrument microphones as well as Shure instrument cables for guitar and bass players. A front-panel LCD provides clear visibility of essential system status, including battery life, RF level, and frequency information.
Transparent Digital Audio and Expanded RF Performance
The SLX-D+ system delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range for clean, accurate sound reproduction. A wide tuning range of up to 138 MHz (regionally dependent) simplifies frequency coordination and supports up to 11 simultaneous systems per 6 MHz TV band and 14 per 8 MHz band, making it well suited for scalable multi-channel deployments.
ShowLink Ease and Wireless Workbench Control
ShowLink Ease enables real-time, two-way communication between paired SLX-D+ receivers and the SLXD1+ transmitter using BLE transmission. Once linked, the transmitter automatically follows receiver frequency changes and power cycles. Integration with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app allows for centralized monitoring, transmitter control, and system management.
Secure Operation and Flexible Power Options

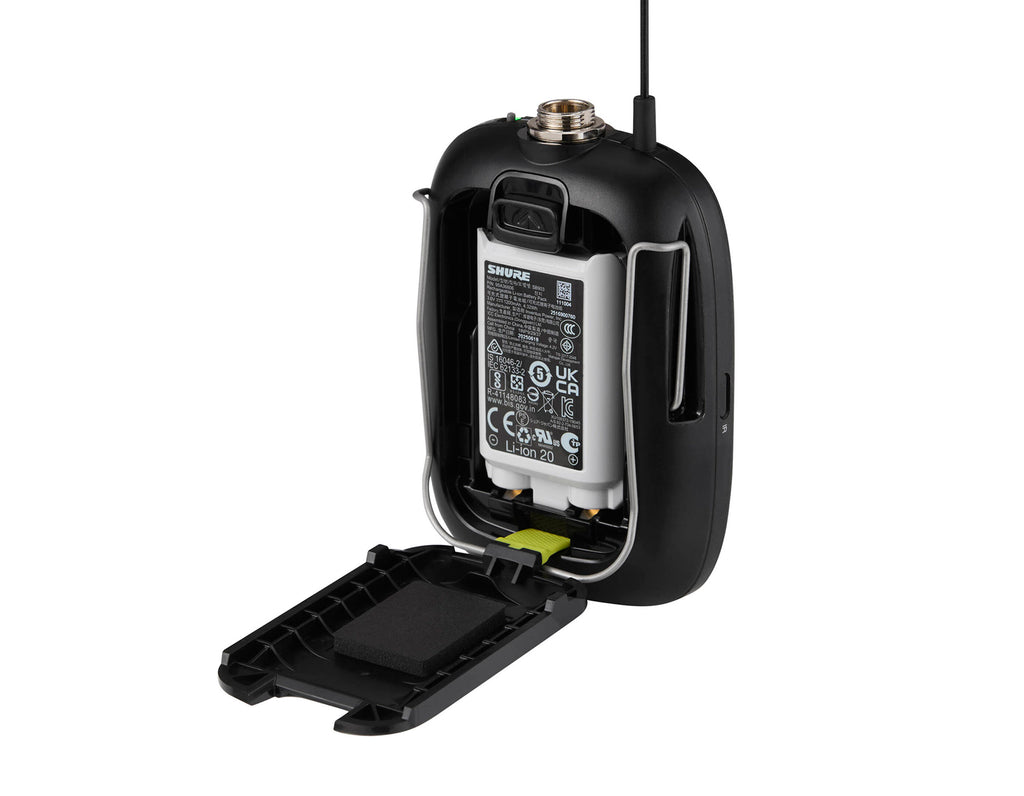

The SLXD1+ supports AES-256 encryption for secure wireless transmission. It operates for up to 8 hours on two AA batteries (included) and is also compatible with the optional SB903 lithium-ion rechargeable battery, providing precise runtime readouts when used with compatible Shure charging accessories (available separately).
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphone:
Microphone Type: No Microphone Included
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: ABS
Dimensions: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm
Weight: 3.1 oz / 89 g
Shipping Weight: 1 lbs.
Shipping Dimensions (LxWxH): 11.6 x 4.9 x 3.2"
