Description
The Shure SLXD14+/85M wireless system features the SLXD1+ bodypack transmitter and the low-profile WL185m cardioid lavalier microphone. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike that delivers wireless excellence, wherever required.
SLX-D+ delivers transparent 24-bit digital audio with greater than 118 dB dynamic range, ensuring exceptionally clear and detailed sound. With rock-solid RF performance and an expansive 138 MHz tuning range, it provides outstanding geographical coverage and supports up to 11 simultaneous systems in 6 MHz TV bands or up to 14 systems in 8 MHz TV bands. Automatic Setup keeps receivers and transmitters securely linked once paired, maintaining reliable operation even in challenging RF environments.
Intelligent Control, Secure Performance
ShowLink Ease enables remote over-the-air adjustment of transmitter parameters directly from the linked receiver, including frequency changes when an open channel is identified, power output adjustments, control lock/unlock, and firmware updates. RF status monitoring and system control are available through Wireless Workbench desktop software or the WWB Mobile app via Wi-Fi or Bluetooth. Every SLX-D+ receiver features patented Digital Feedback Reducer technology from Shure to automatically minimize unwanted feedback. Each component ships with AES-256 encryption for secure operation and delivers up to 8 hours of use with included AA batteries or optional SB903 Li-ion rechargeable batteries and charging accessories.

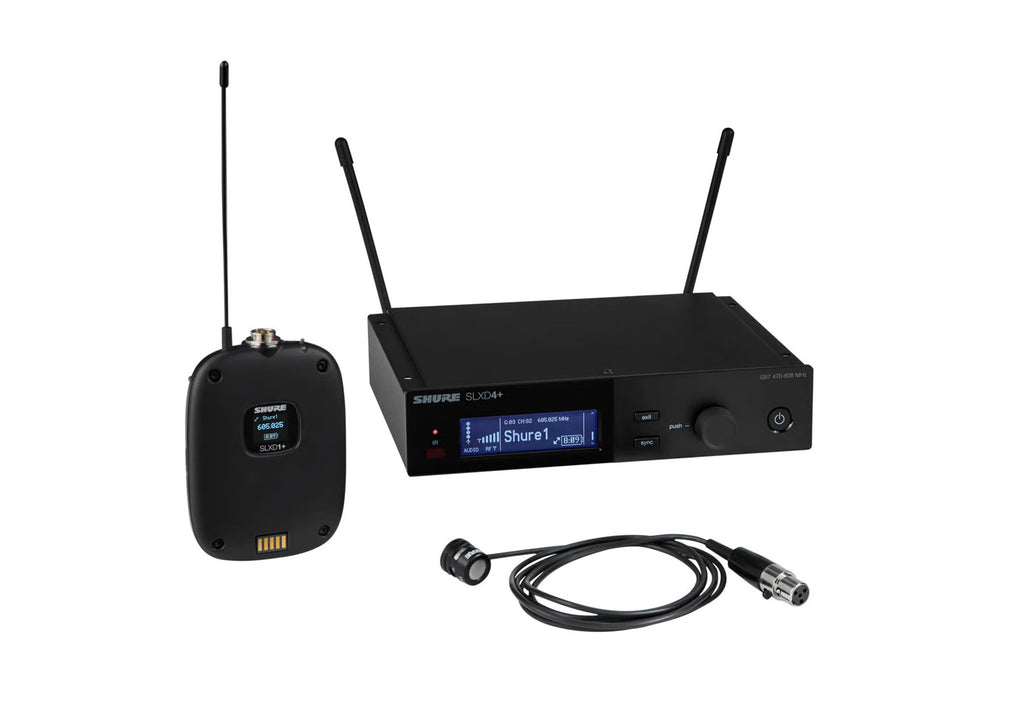

What’s included:

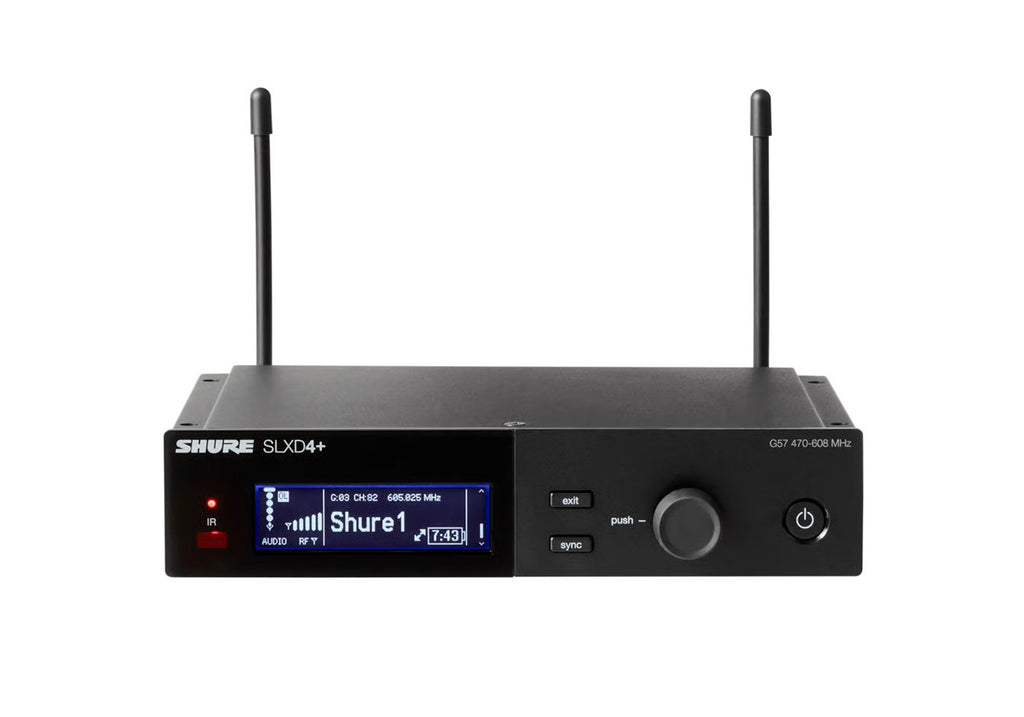

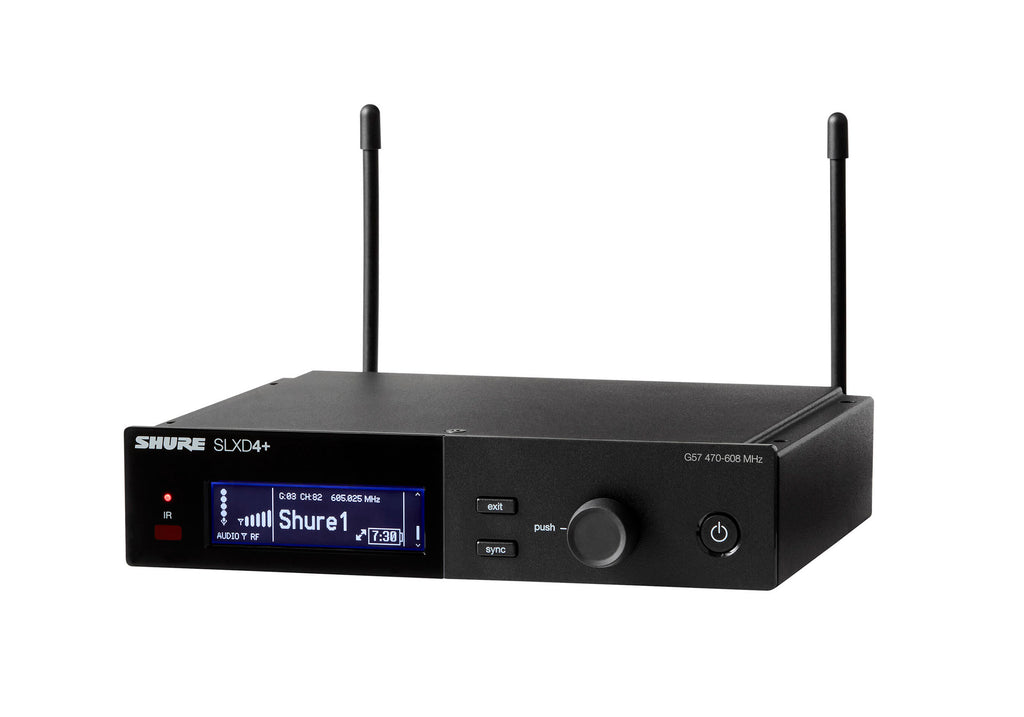

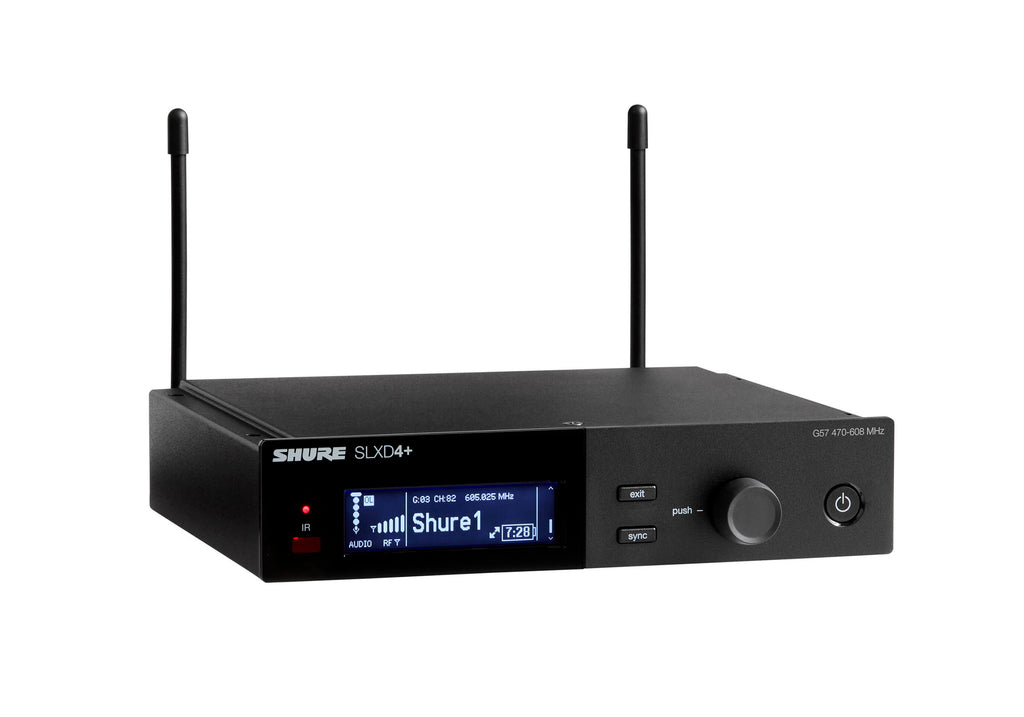

1 SLXD4+ Digital Wireless Receiver

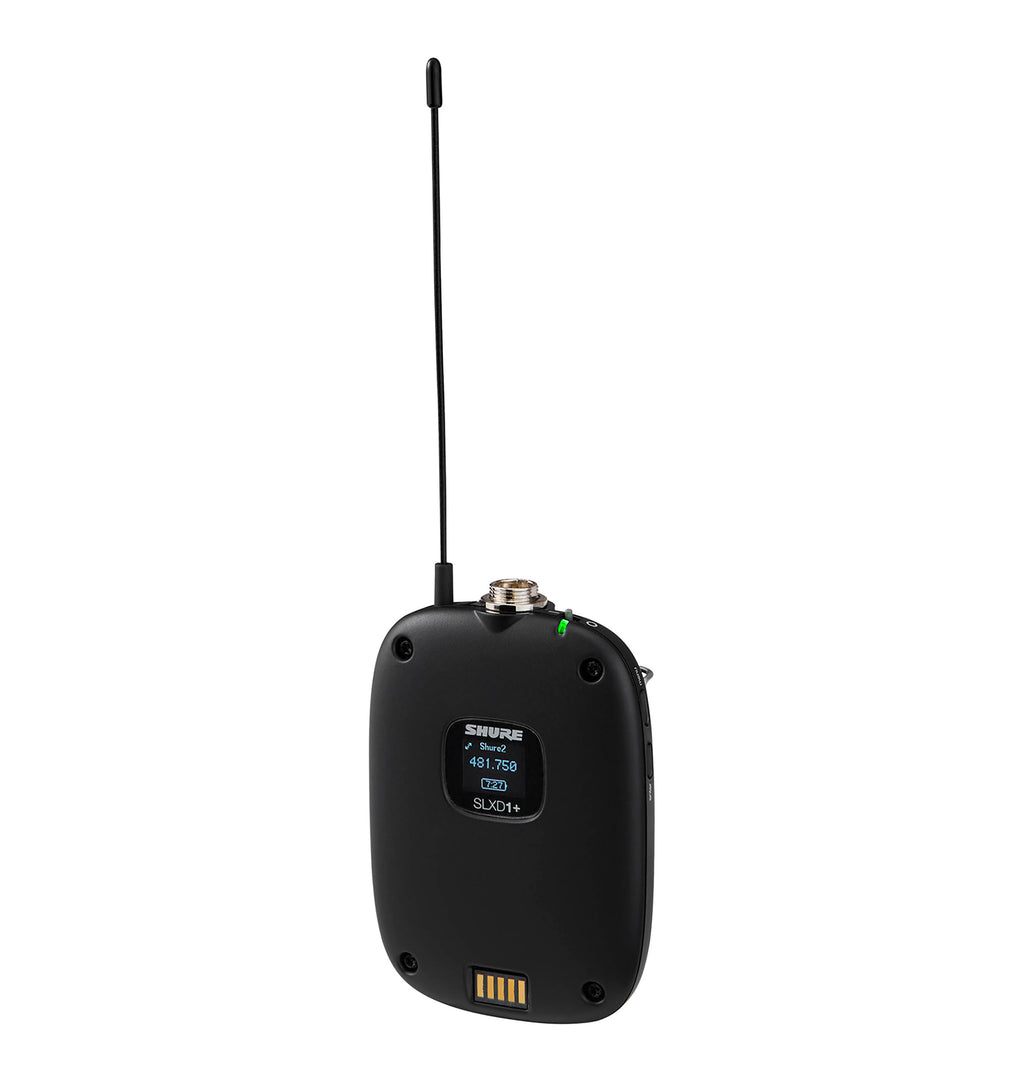

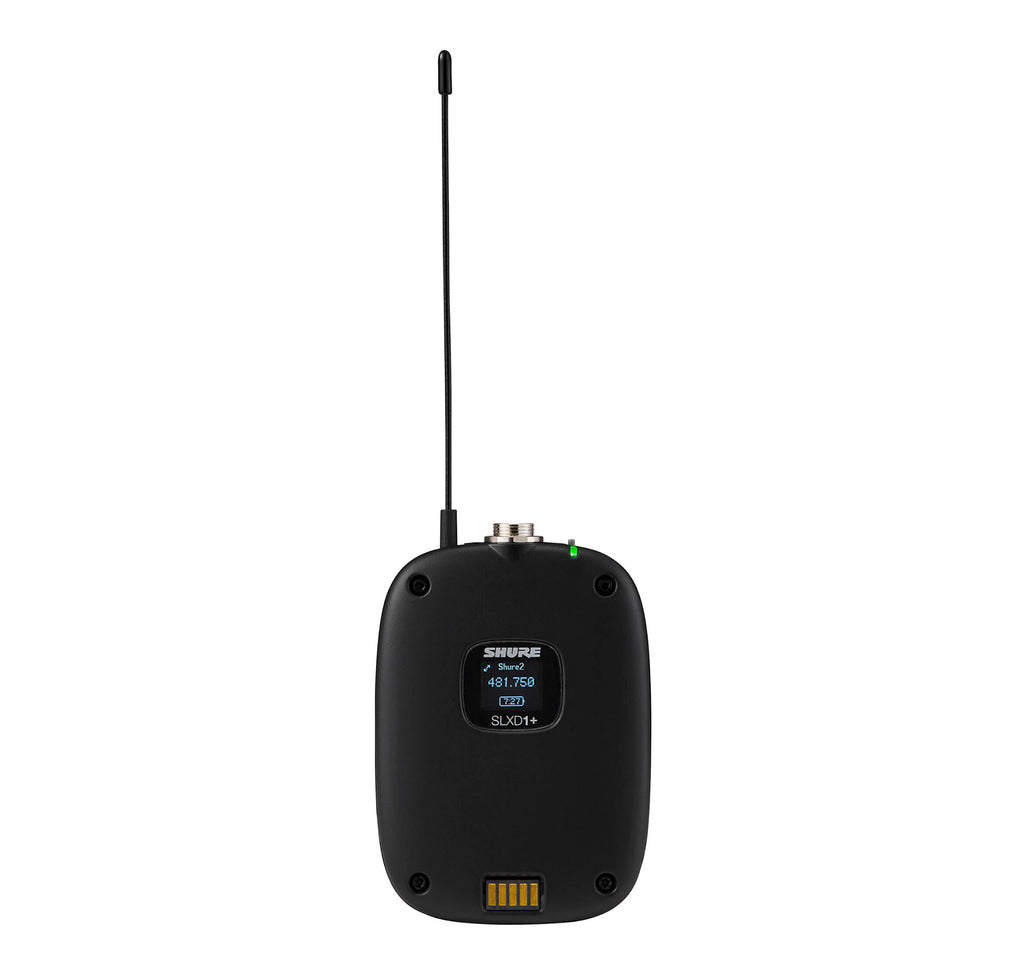

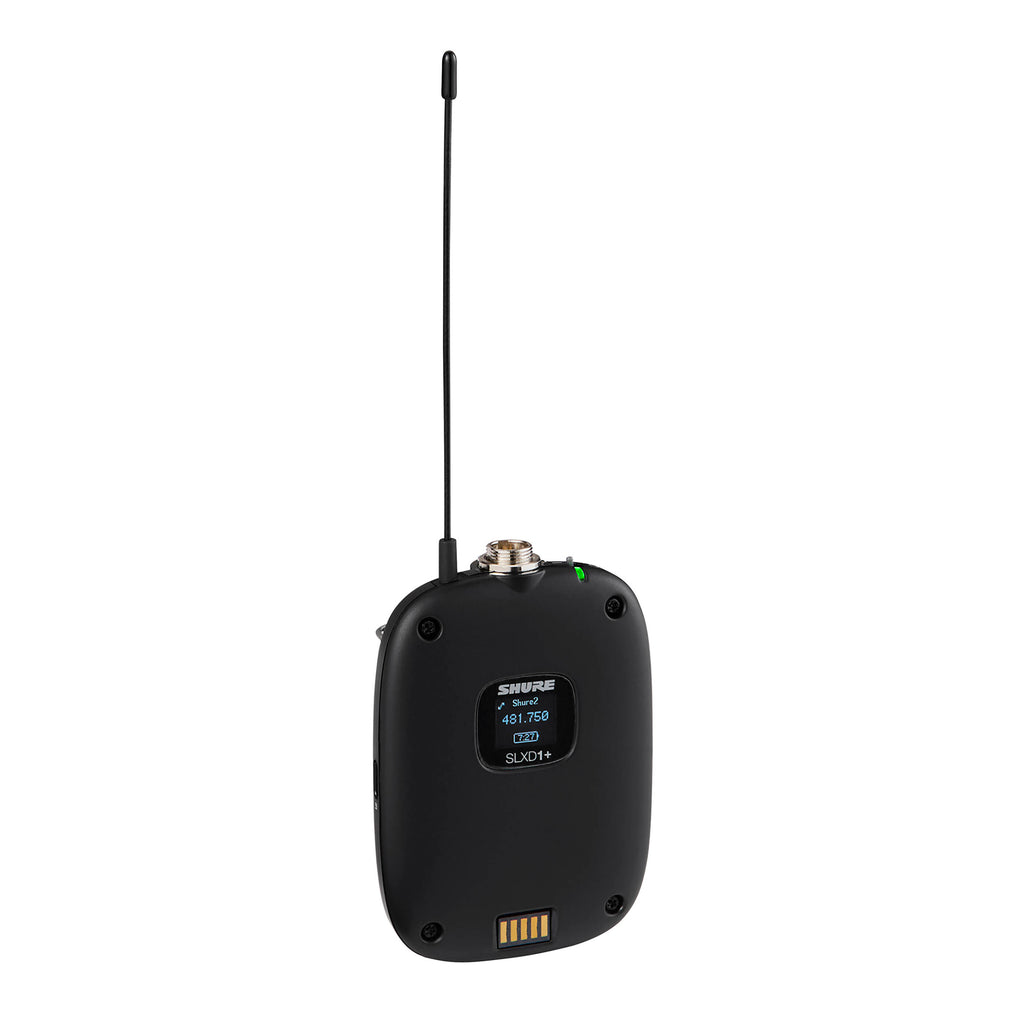

1 SLXD1+ Bodypack Transmitter

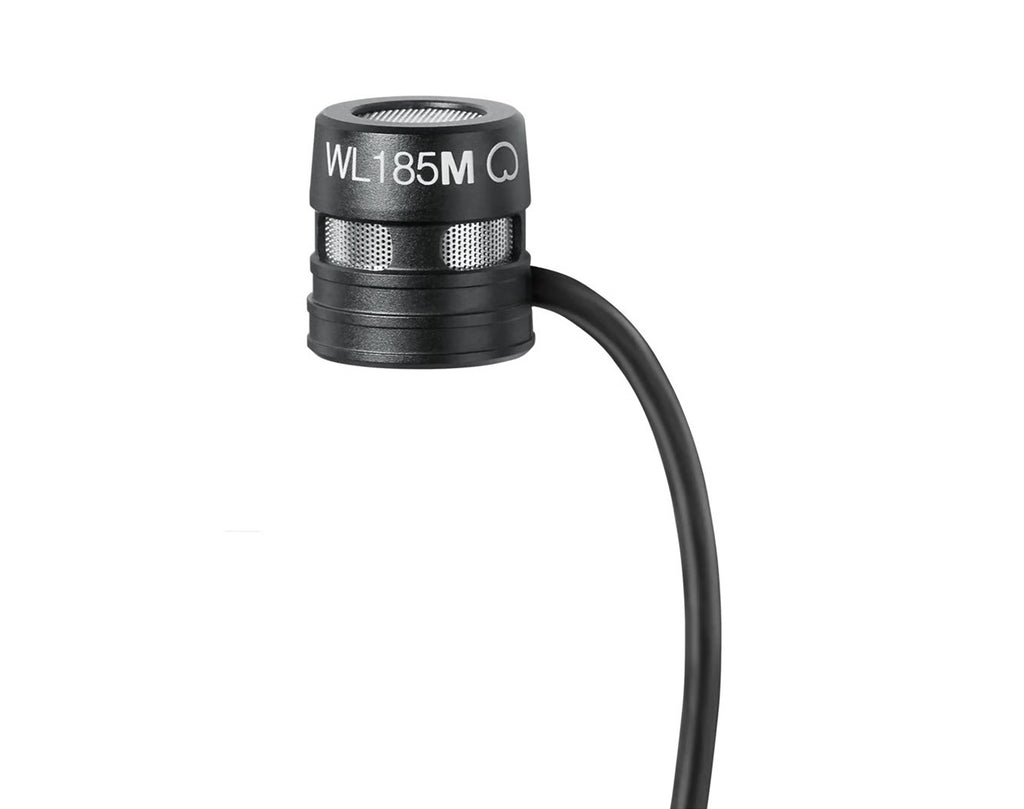

1 WL185m Low-profile Cardioid Lavalier Microphone
1 single-mount tie clip
1 snap-fit windscreen
2 1/4 wave antennas
1 rackmount kit
2 AA batteries
1 power supply
1 carrying pouch
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Removable
Number of Audio Channels: 1

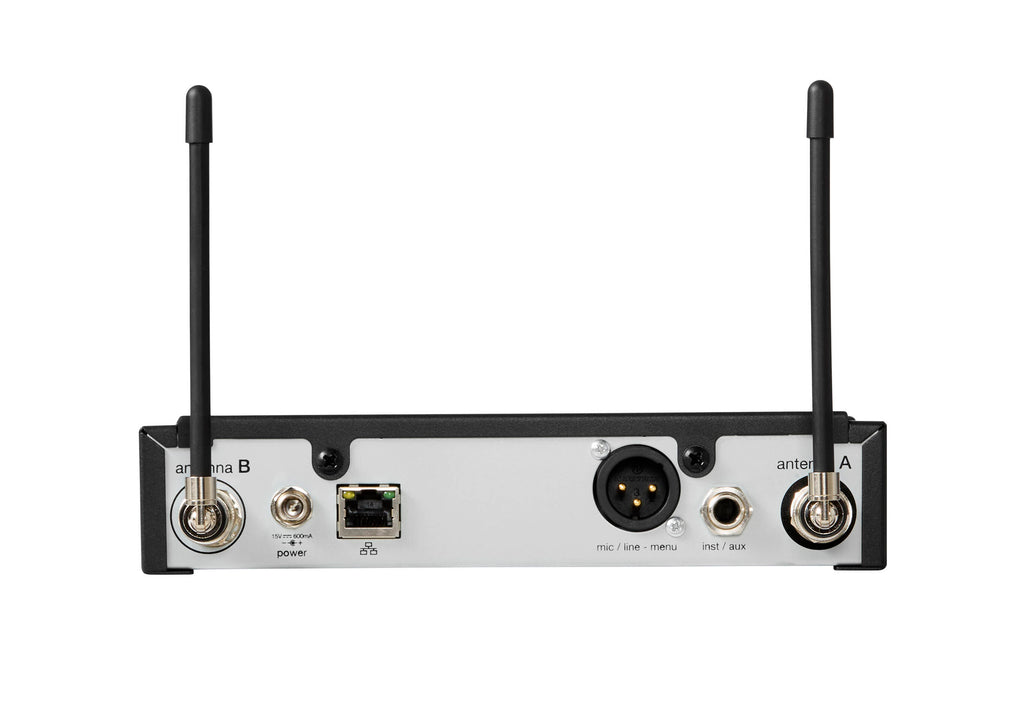

Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4"" TS Unbalanced Output
Network I/O: 1x RJ45
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: AC Input
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Lavalier
Polar Pattern: Cardioid
Frequency Response: 70 Hz to 20 kHz
Maximum SPL: 140.5 dB
Sensitivity: -43 dBV/Pa
Output Connector: 1x TA4F/Mini-XLR 4-Pin Female
Cable Length: 4' / 1.2 m
Color: Black
Power:

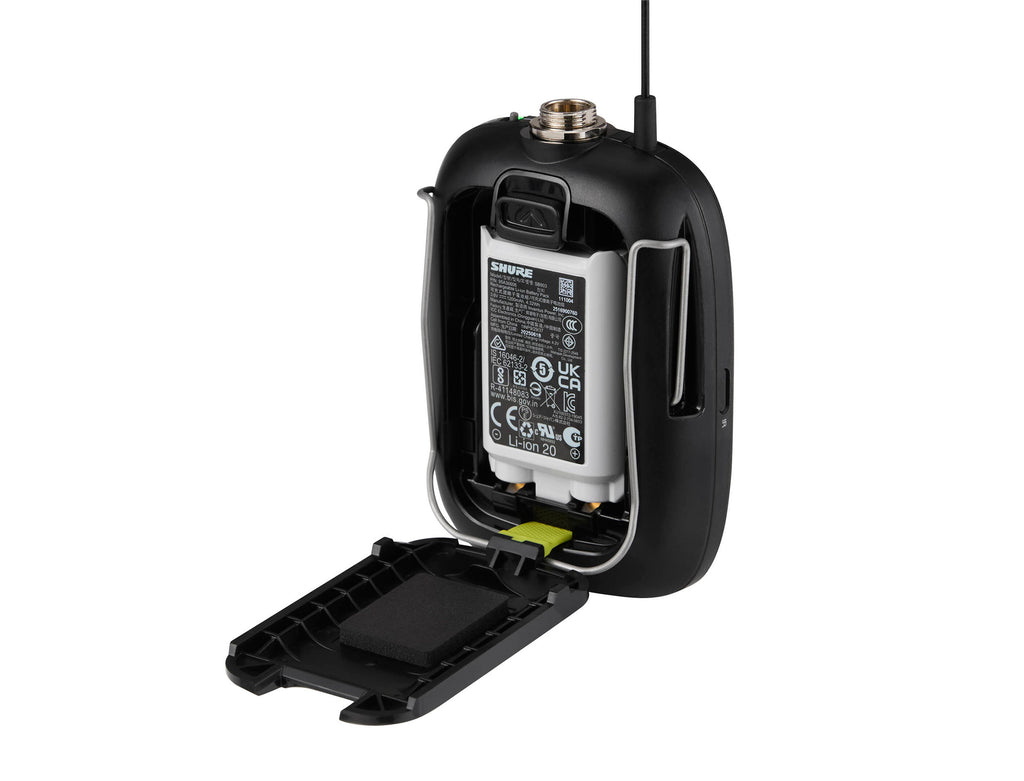

Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing:
Steel (Receiver)
ABS (Bodypack Transmitter)
Dimensions: Receiver: 7.8 x 6 x 1.7"" / 197 x 152 x 42 mm
Bodypack Transmitter: 3.9 x 2.7 x 1"" / 98 x 68 x 25.5 mm
Weight: Receiver: 2 lb / 900 g (without Antennas)
Bodypack Transmitter: 3.1 oz / 89 g"
Shipping Weight: 7 lbs.
Shipping Dimensions (LxWxH): 17.8 x 14.5 x 4.3"
