Description
The Shure SLXD14+/93 wireless system features the SLXD1+ bodypack transmitter and the miniature WL93 omnidirectional lavalier microphone. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike that delivers wireless excellence, wherever required.
SLX-D+ delivers transparent 24-bit digital audio quality with greater than 118 dB dynamic range, ensuring clear, detailed sound for professional applications. Its rock-solid RF performance and expansive 138 MHz wide tuning range provide greater geographical coverage, supporting up to 11 simultaneous systems in 6 MHz TV bands and up to 14 simultaneous systems in 8 MHz TV bands.
Automatic Setup ensures that once linked, SLX-D+ receivers and transmitters remain securely connected—even in the presence of RF interference. With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including changing frequencies when an open channel is identified, adjusting power output levels, locking or unlocking controls, and performing firmware updates.
Monitor RF status and control receiver and transmitter settings using Wireless Workbench desktop software or remotely through the WWB Mobile app over Wi-Fi or Bluetooth. Every receiver features patented Digital Feedback Reducer technology from Shure to automatically minimize unwanted audio feedback. Each SLX-D+ component ships with AES-256 encryption for secure operation and delivers up to 8 hours of use with included AA batteries or optional SB903 Li-ion rechargeable batteries and charging accessories.

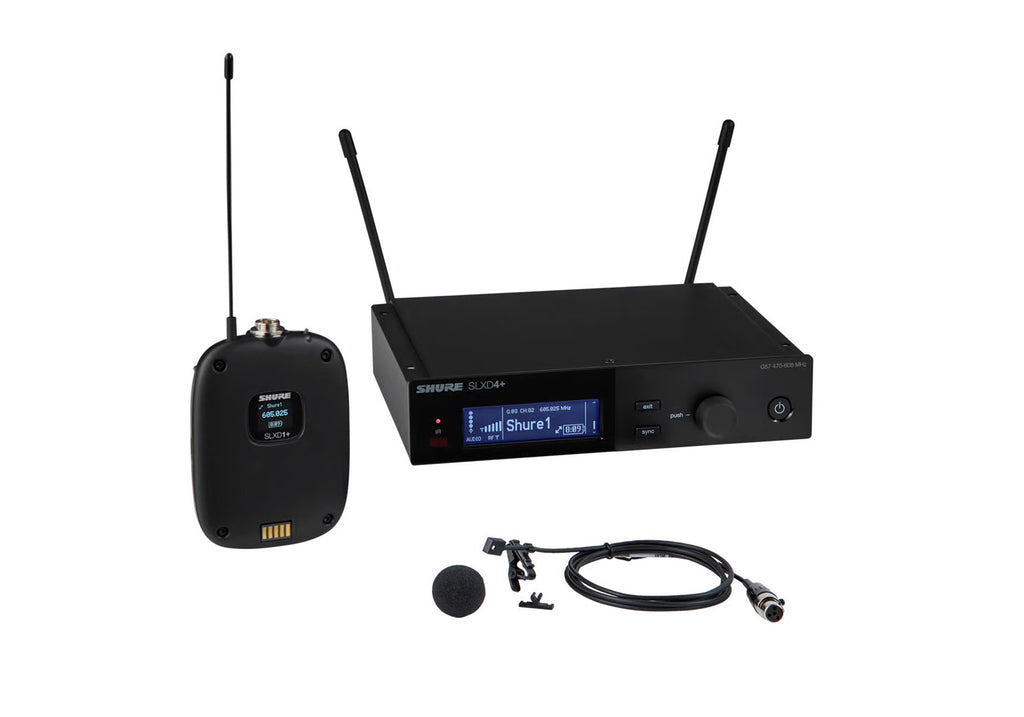

What’s included:

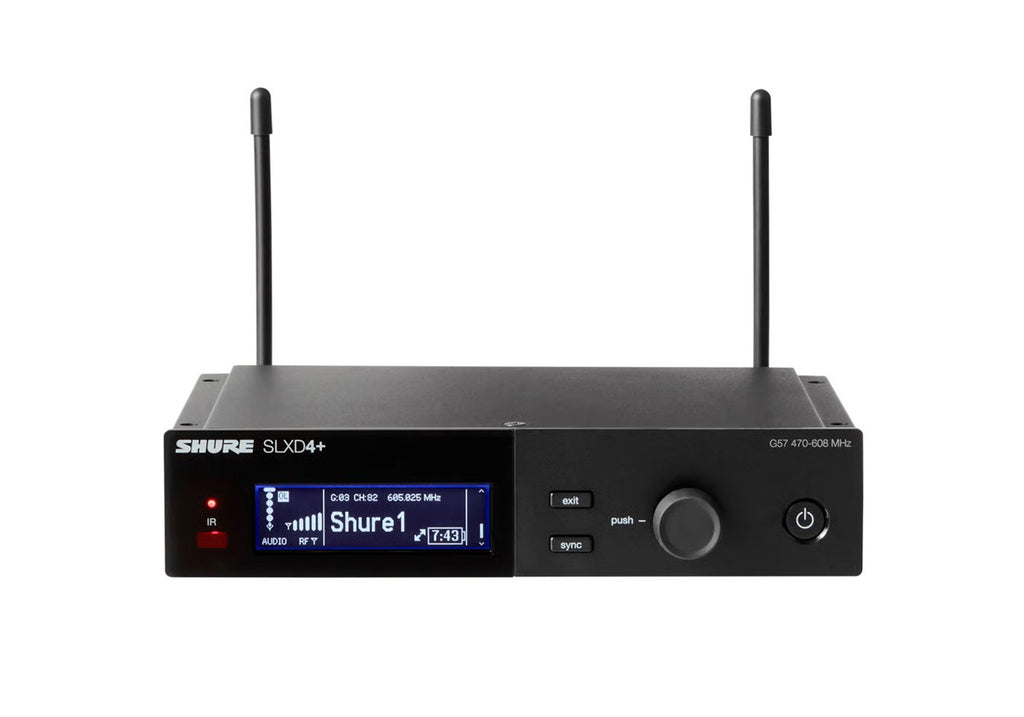

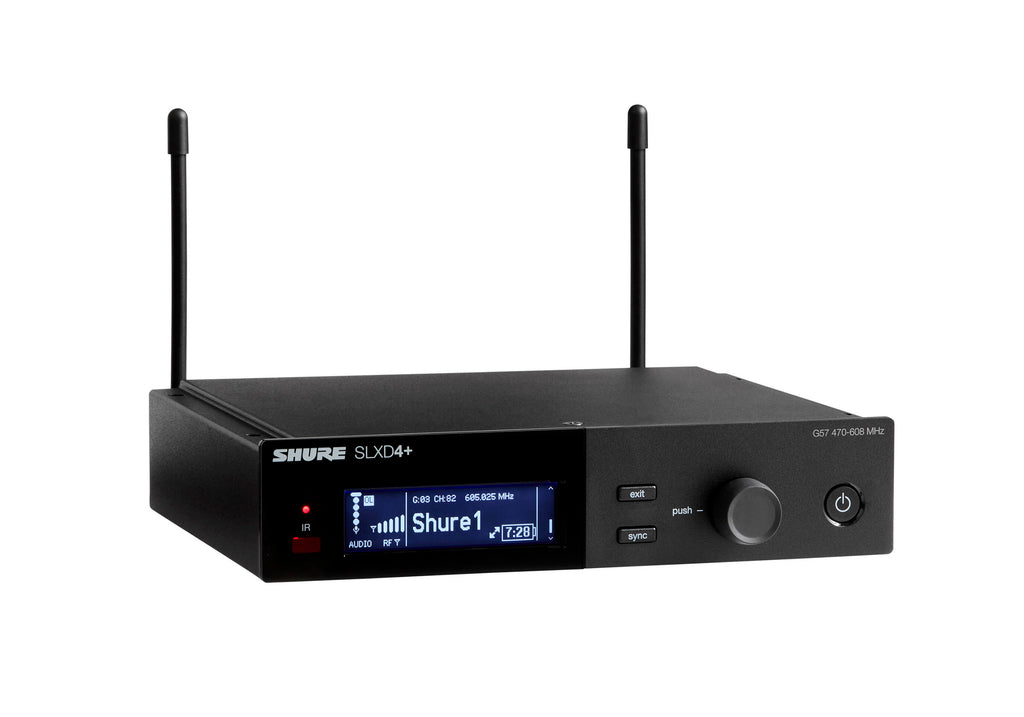

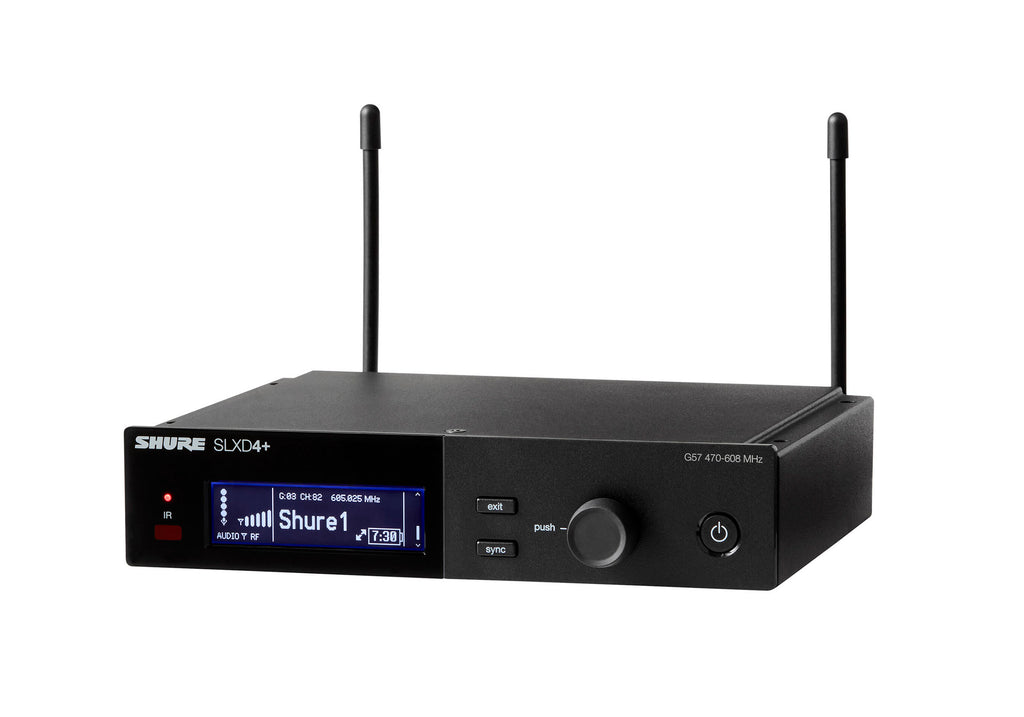

1 SLXD4+ Digital Wireless Receiver

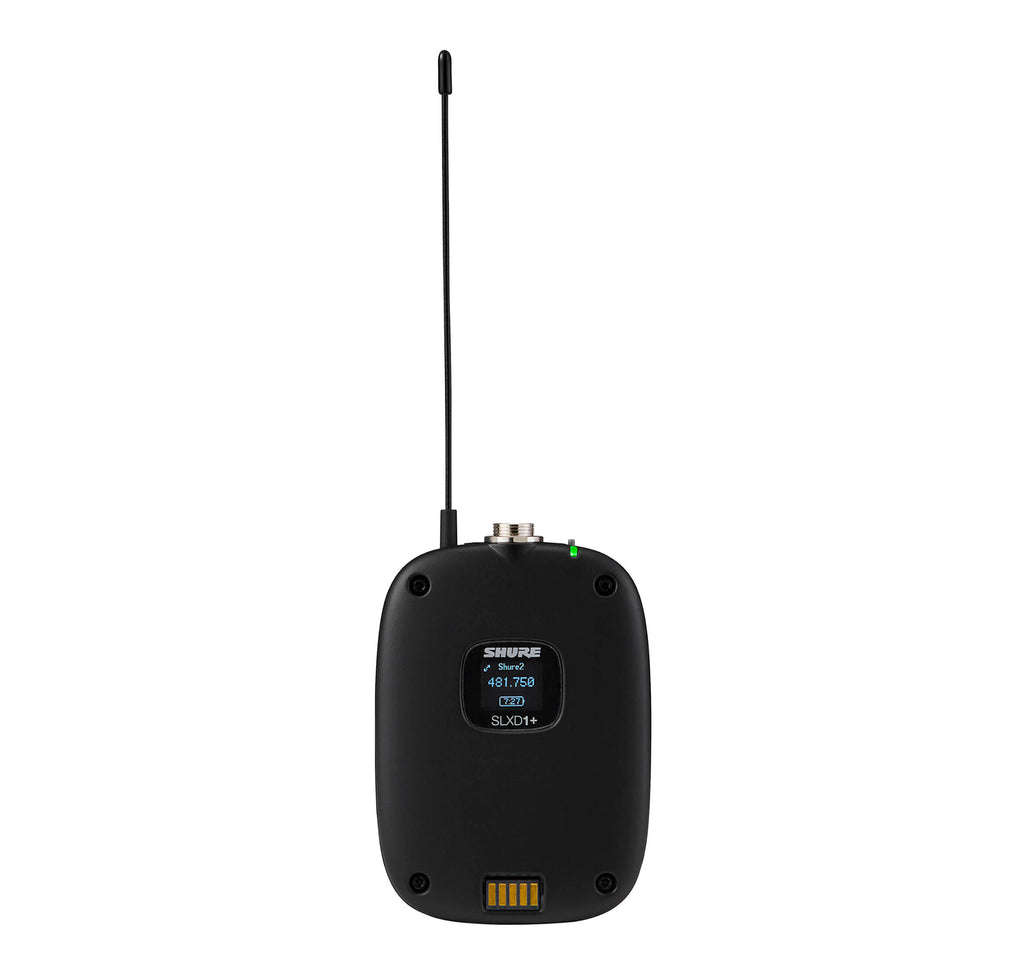

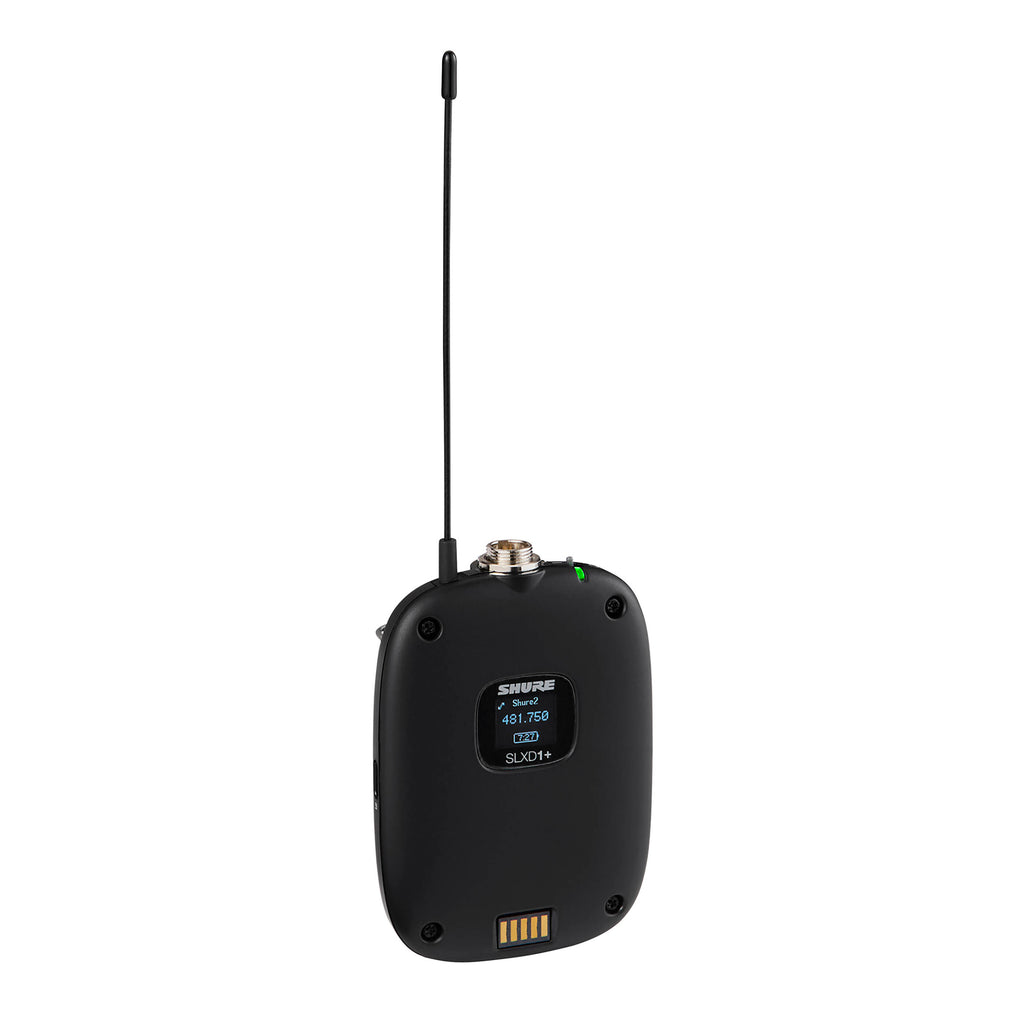

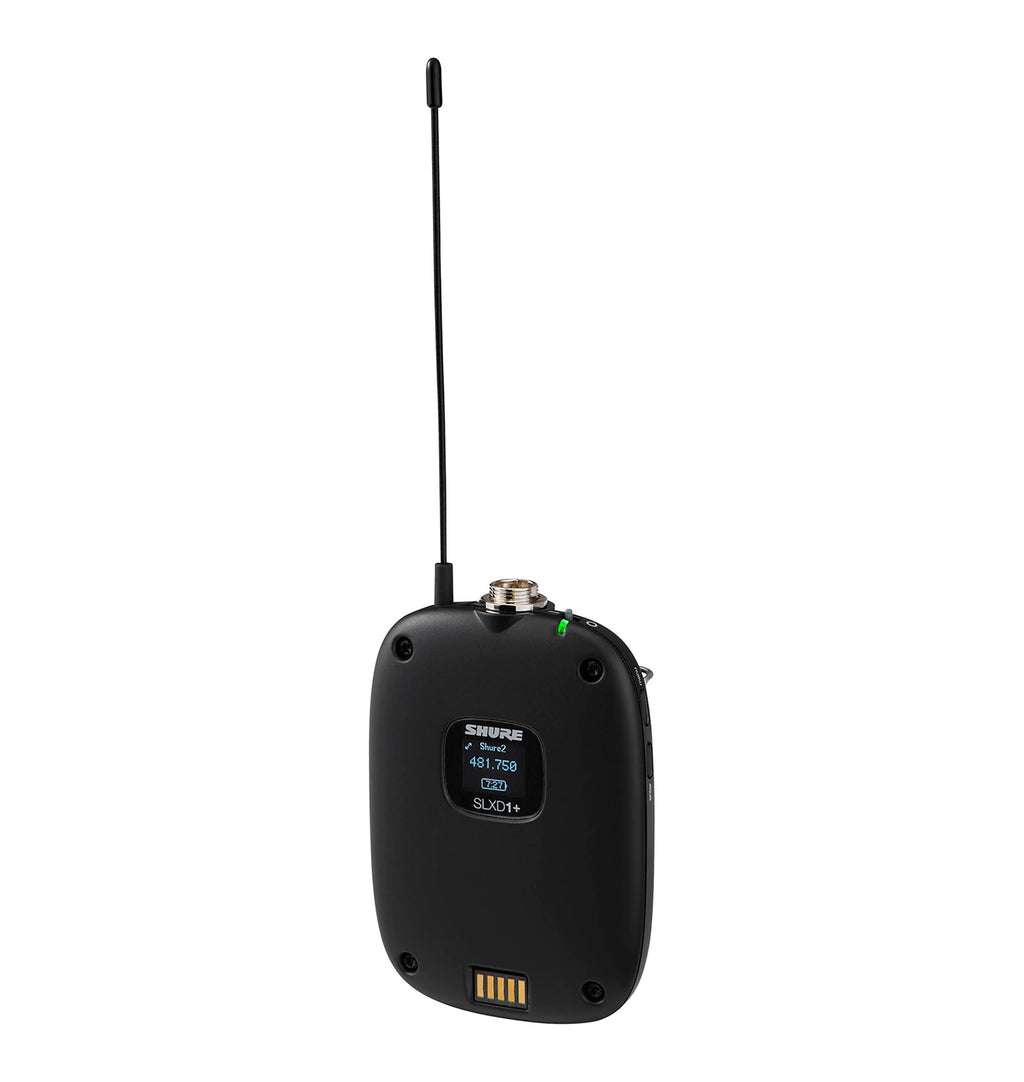

1 SLXD1+ Bodypack Transmitter

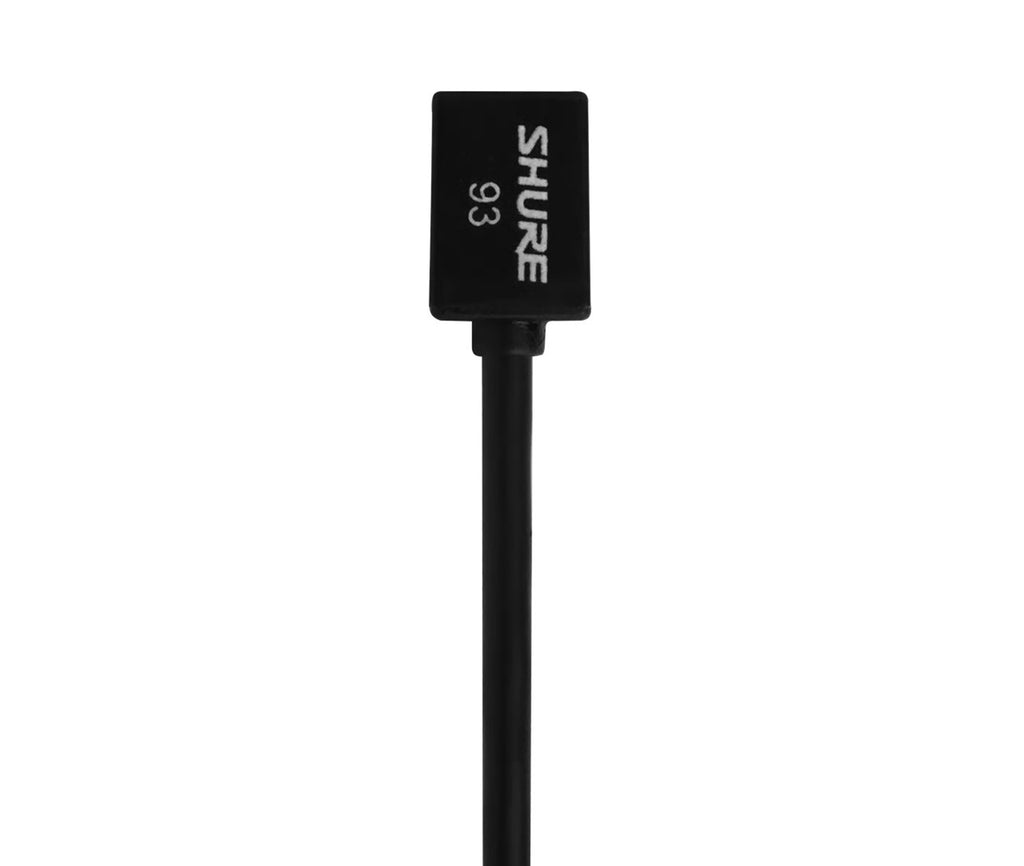

1 WL93 Miniature Omnidirectional Lavalier Microphone
1 tie bar
1 sew-on mounting bracket
1 snap-fit windscreen
2 1/4 wave antennas
1 rackmount kit
2 AA batteries
1 power supply 1 carrying pouch
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Removable
Number of Audio Channels: 1

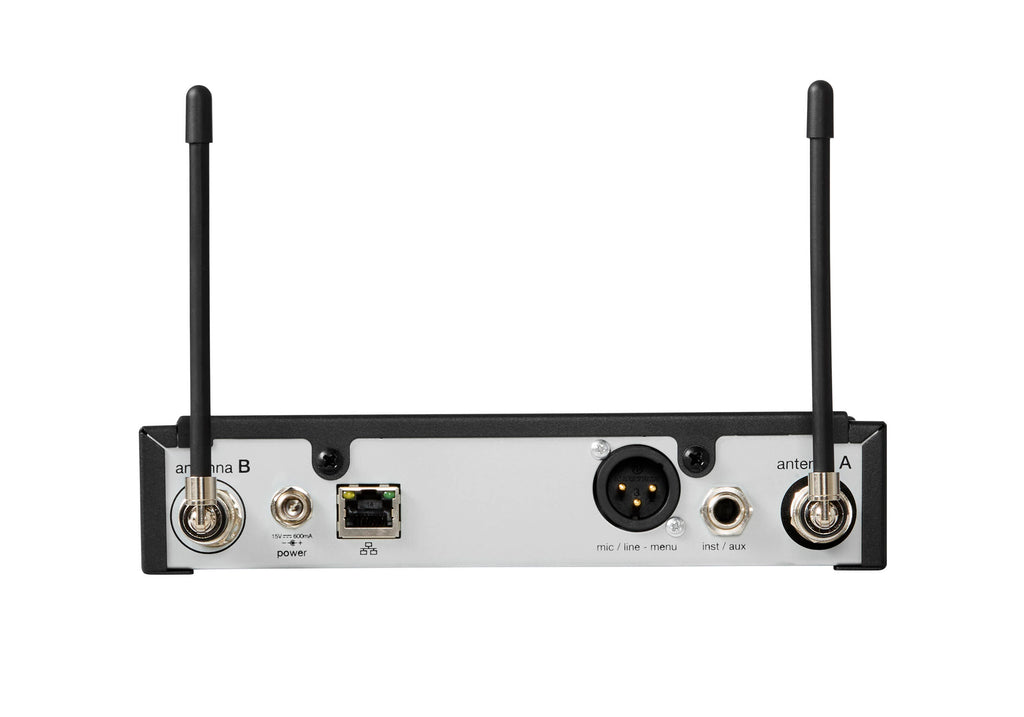

Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4"" TS Unbalanced Output
Network I/O: 1x RJ45
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: AC Input
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Lavalier
Polar Pattern: Omnidirectional
Frequency Response: 50 Hz to 20 kHz
Maximum SPL: 120 dB
Sensitivity: -38 dBV/Pa
Output Connector: 1x TA4F/Mini-XLR 4-Pin Female
Cable Length: 4' / 1.2 m
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing:
Steel (Receiver)
ABS (Bodypack Transmitter)
Dimensions: Receiver: 7.8 x 6 x 1.7"" / 197 x 152 x 42 mm
Bodypack Transmitter: 3.9 x 2.7 x 1"" / 98 x 68 x 25.5 mm
Weight: Receiver: 2 lb / 900 g (without Antennas)
Bodypack Transmitter: 3.1 oz / 89 g"
Shipping Weight: 7 lbs.
Shipping Dimensions (LxWxH): 17.8 x 14.5 x 4.3"
