Description

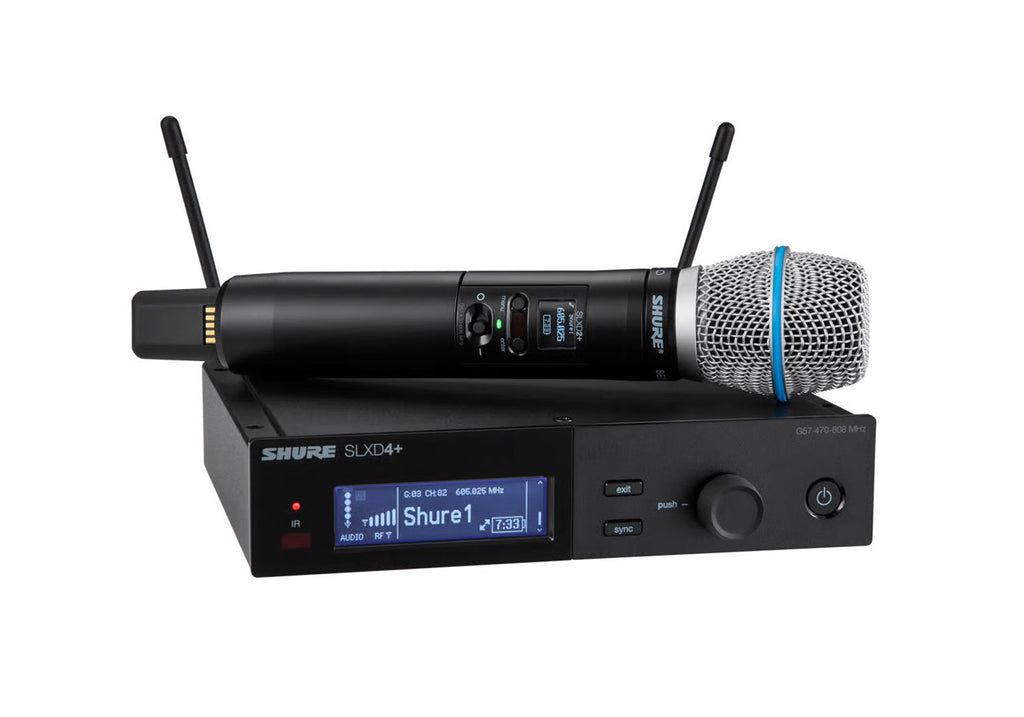

The Shure SLXD24+/B87A handheld wireless system, featuring the Beta 87A supercardioid condenser microphone, unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

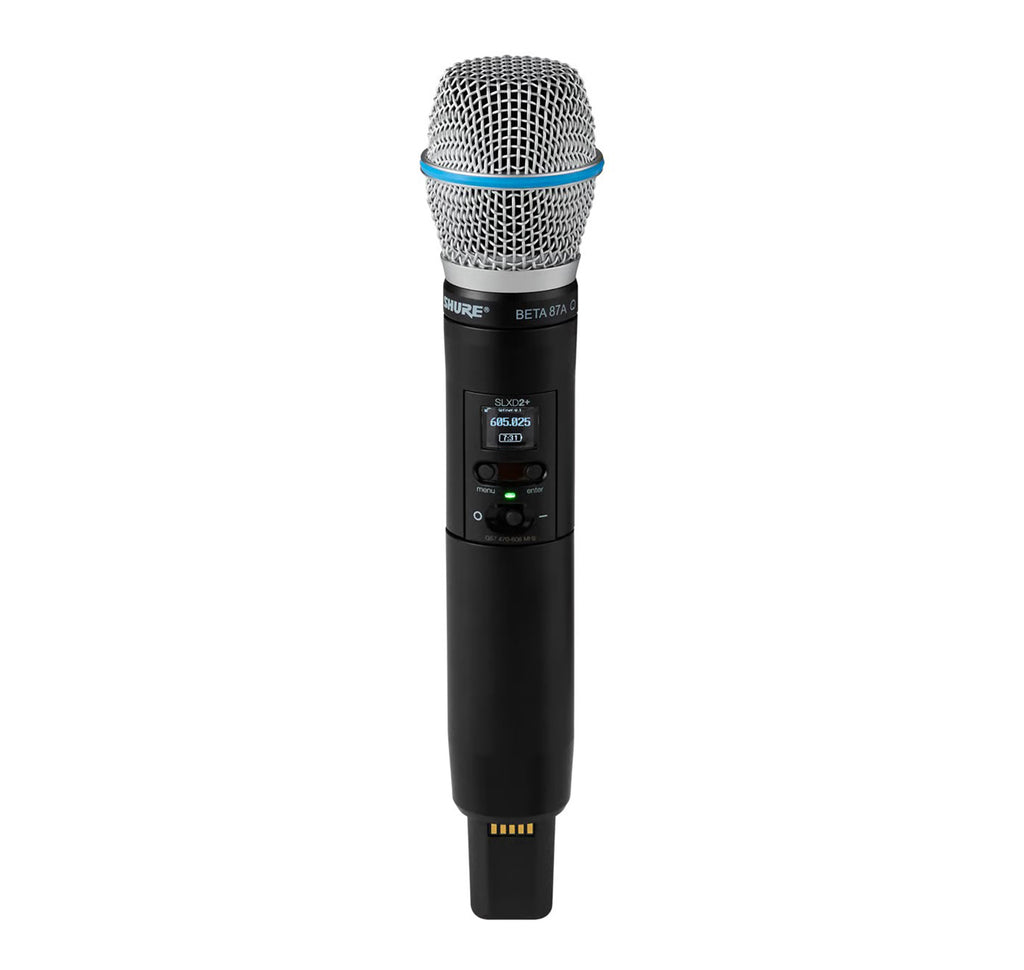

Handheld Transmitter with Beta 87A Capsule
The SLXD2+ handheld transmitter features a durable aluminum housing with a lightweight design that is comfortable to hold during performances. It includes an LCD screen that displays essential system information. The Beta 87A condenser microphone capsule supports sound pressure levels up to 140 dB and provides a smooth frequency response with a gradual presence boost and controlled proximity effect, making it ideal for vocal performances. Its supercardioid pickup pattern helps isolate the singer’s voice while reducing background noise. The interchangeable capsule design allows users to swap capsules based on their needs, with optional choices including the Beta 58A, SM58, and KSM8.
Transparent Digital Audio and Wireless Performance
SLX-D+ delivers clear 24-bit digital audio with more than 118 dB of dynamic range, ensuring accurate and detailed sound reproduction. It also offers an expanded tuning range of up to 138 MHz (depending on the region), allowing wider coverage and easier frequency coordination. The system supports up to 11 simultaneous wireless systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, making it suitable for multi-channel setups in professional audio environments.
Smart Control, Security, and Power Options
With ShowLink Ease technology, SLX-D+ receivers and transmitters communicate in real time using BLE, allowing engineers to remotely adjust transmitter frequency, RF power, and lock settings or perform firmware updates. The system integrates with Wireless Workbench desktop software and the mobile app for monitoring and control via Wi-Fi or Bluetooth. Built-in Digital Feedback Reduction (DFR) automatically detects and suppresses feedback using dynamic notch filters. For secure operation, the system includes AES-256 encryption. It can run up to 8 hours on two AA batteries, with optional SB903 lithium-ion rechargeable batteries offering precise runtime monitoring when used with compatible Shure charging accessories.
What’s Included:

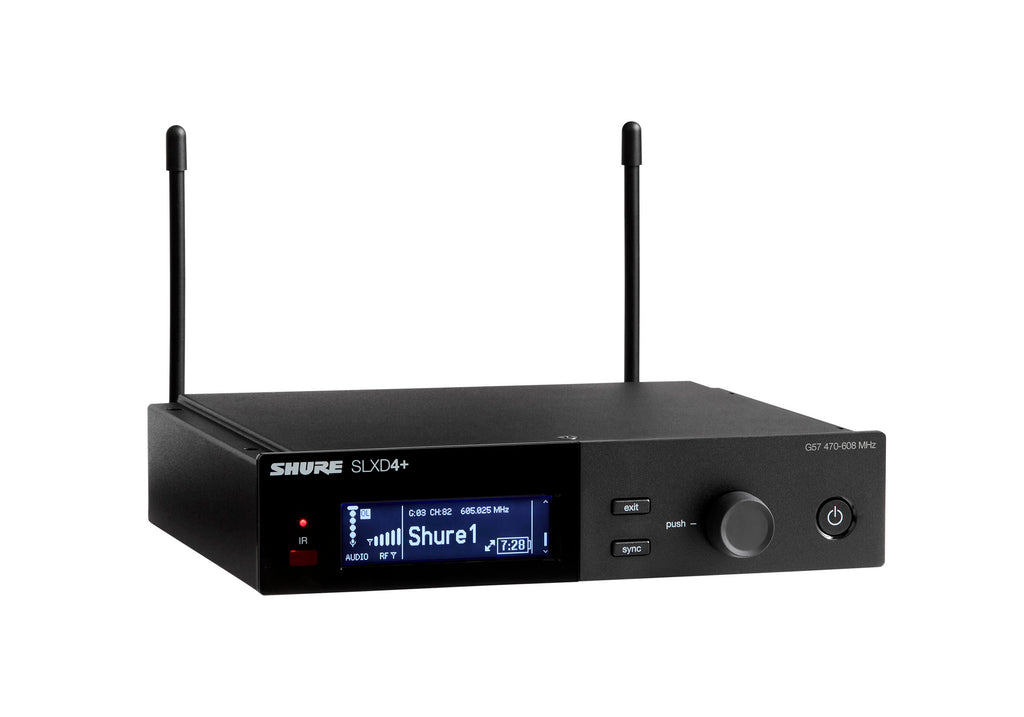

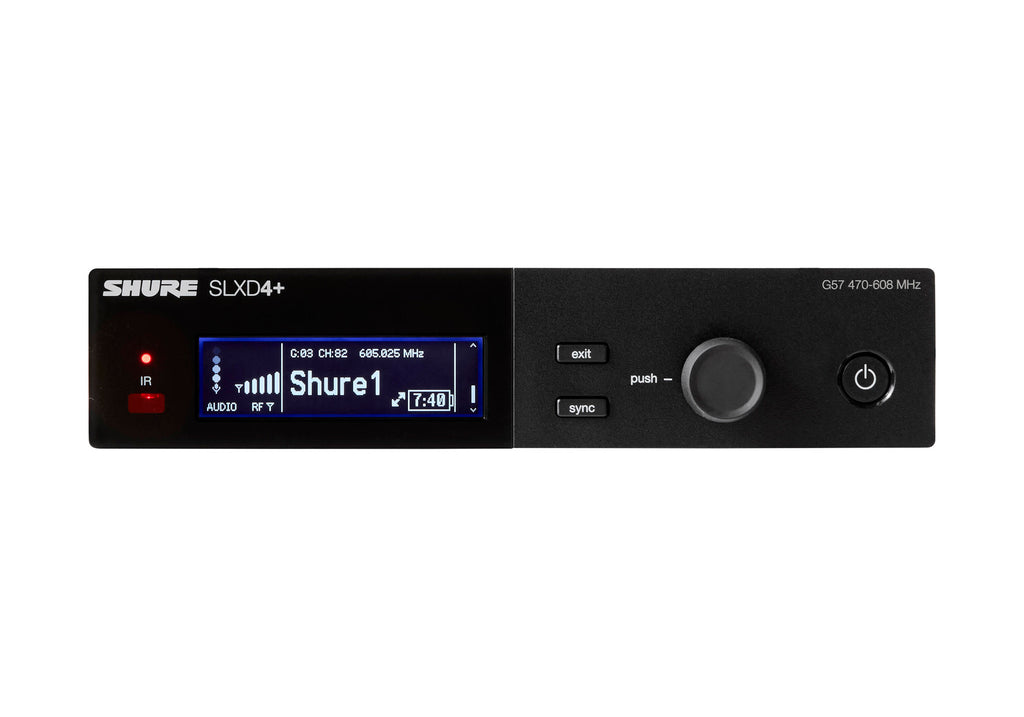

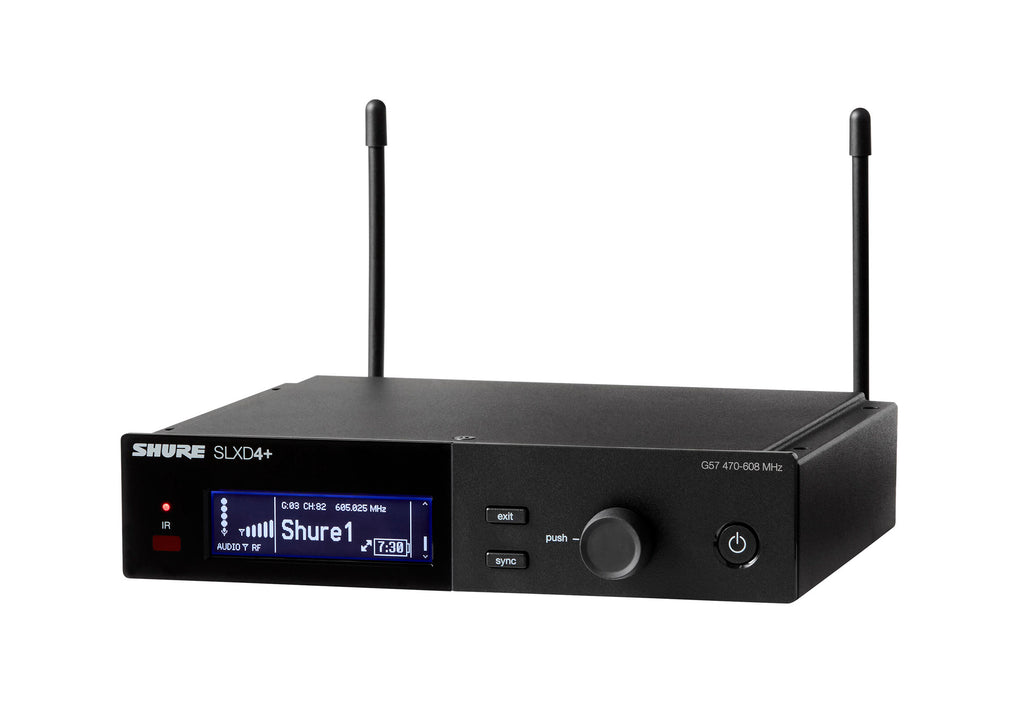

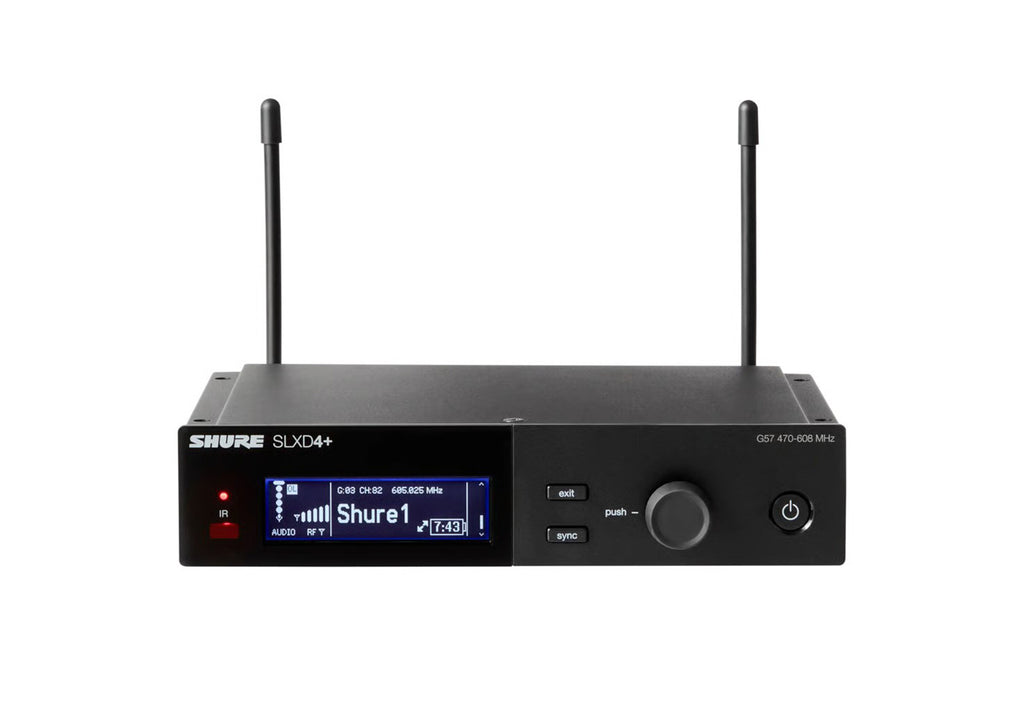

SLXD4+ Digital Wireless Receiver
1 SLXD2+/B87A Handheld Transmitter with Beta 87A Supercardioid Condenser Microphone
1 microphone clip
2 1/4 wave antennas
1 rackmount kit
2 AA batteries
1 power supply
1 carrying pouch
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Removable
Number of Audio Channels: 1

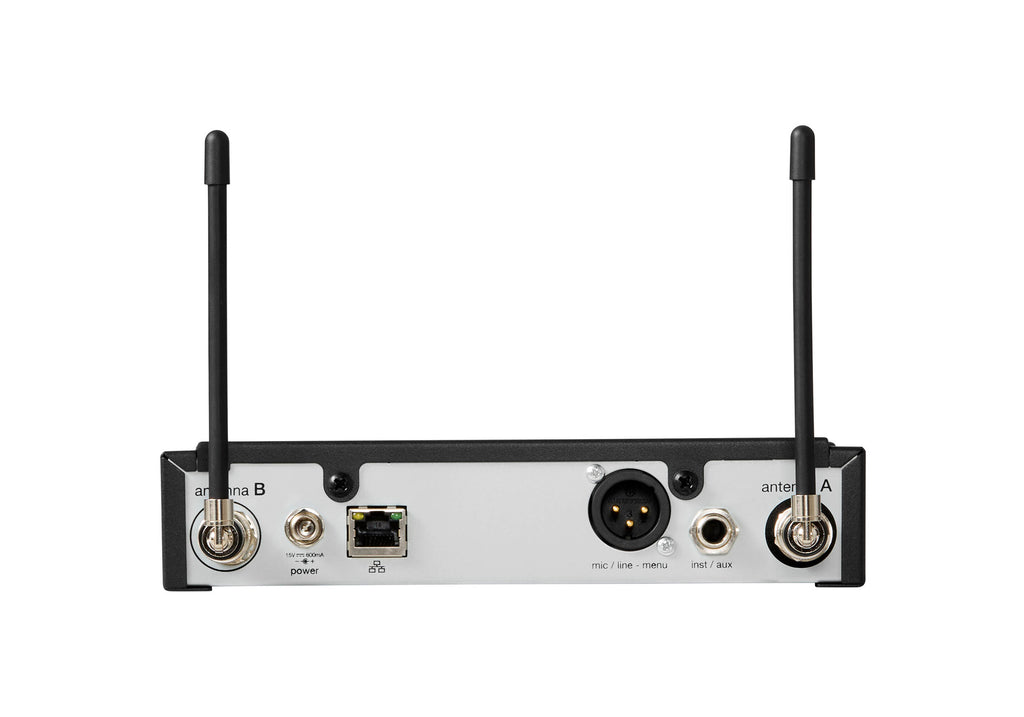

Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4" TS Unbalanced Output
Network I/O: No
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: AC Input
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power:
N/A: Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Supercardioid
Frequency Response: 50 Hz to 20 kHz
Maximum SPL: 140.5 dB
Sensitivity: -52.5 dBV/Pa
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing:
Steel (Receiver)
Aluminum (Handheld Transmitter)
Dimensions:
Receiver: 7.8 x 6 x 1.7" / 197 x 152 x 42 mm
Handheld Transmitter: 6.9 x 1.5" / 176 x 37.1 mm
Weight: 5.1 oz / 144 g
Shipping Weight: 7.21 lbs.
Shipping Dimensions (LxWxH): 17.9 x 14.3 x 4.4"
