Description

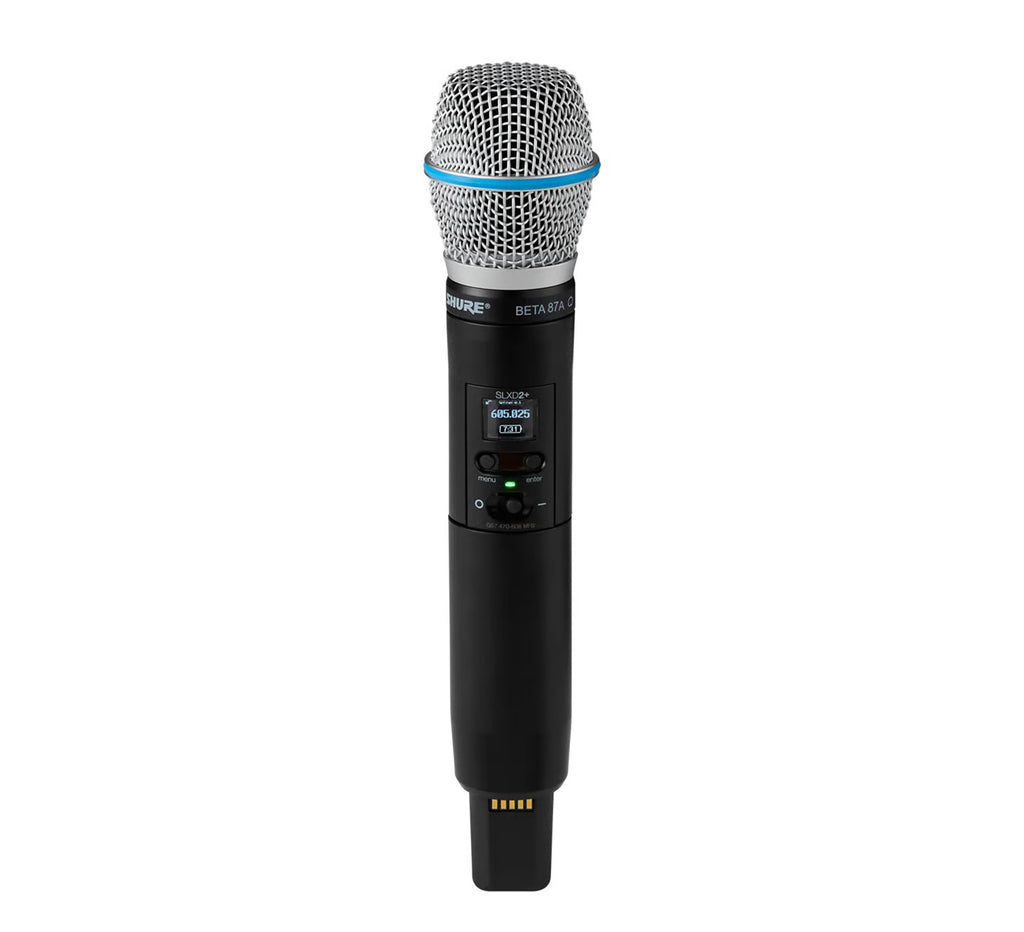

The Shure SLXD2+/B87A handheld transmitter, featuring the Beta 87A supercardioid condenser microphone unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
Beta 87A Supercardioid Condenser Performance
The SLXD2+ handheld transmitter features the Shure Beta 87A electret-condenser capsule, delivering a wide 117 dB dynamic range and handling SPL levels up to 140 dB. Its smooth frequency response includes a gradual presence rise and controlled proximity effect tailored for vocals, while the supercardioid pickup pattern enhances isolation from background noise and provides excellent gain before feedback. When paired with an SLX-D+ receiver, the SLXD2+ delivers transparent 24-bit digital audio with greater than 118 dB dynamic range and a wide tuning bandwidth of up to 138 MHz (regionally dependent), supporting reliable operation and high channel counts in dense RF environments.
Remote Control, Capsule Flexibility, and Secure Power Options
ShowLink Ease enables real-time, two-way communication between the transmitter and a compatible SLX-D+ receiver via BLE, allowing remote adjustment of frequency, RF power, and control locks, as well as interference mitigation and over-the-air firmware updates—without handling the microphone. The interchangeable capsule design supports additional Shure options including the Shure Beta 58A, Shure SM58, Shure KSM8, Shure Nexadyne 8/S, and Shure Nexadyne 8/C for tailored sonic performance. The system supports AES-256 encryption for secure transmission and operates for up to 8 hours on two AA batteries or an optional SB903 lithium-ion rechargeable battery, with precise runtime metering available when used with compatible charging accessories.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power:
N/A: Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Supercardioid
Frequency Response: 50 Hz to 15 kHz
Maximum SPL: 140.5 dB
Sensitivity: -52.5 dBV/Pa
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: Aluminum
Dimensions: 6.9 x 1.5" / 176 x 37.1 mm
Weight: 5.1 oz / 144 g
Shipping Weight: 1.53 lbs.
Shipping Dimensions (LxWxH): 11 x 5.3 x 3.4"
