Description

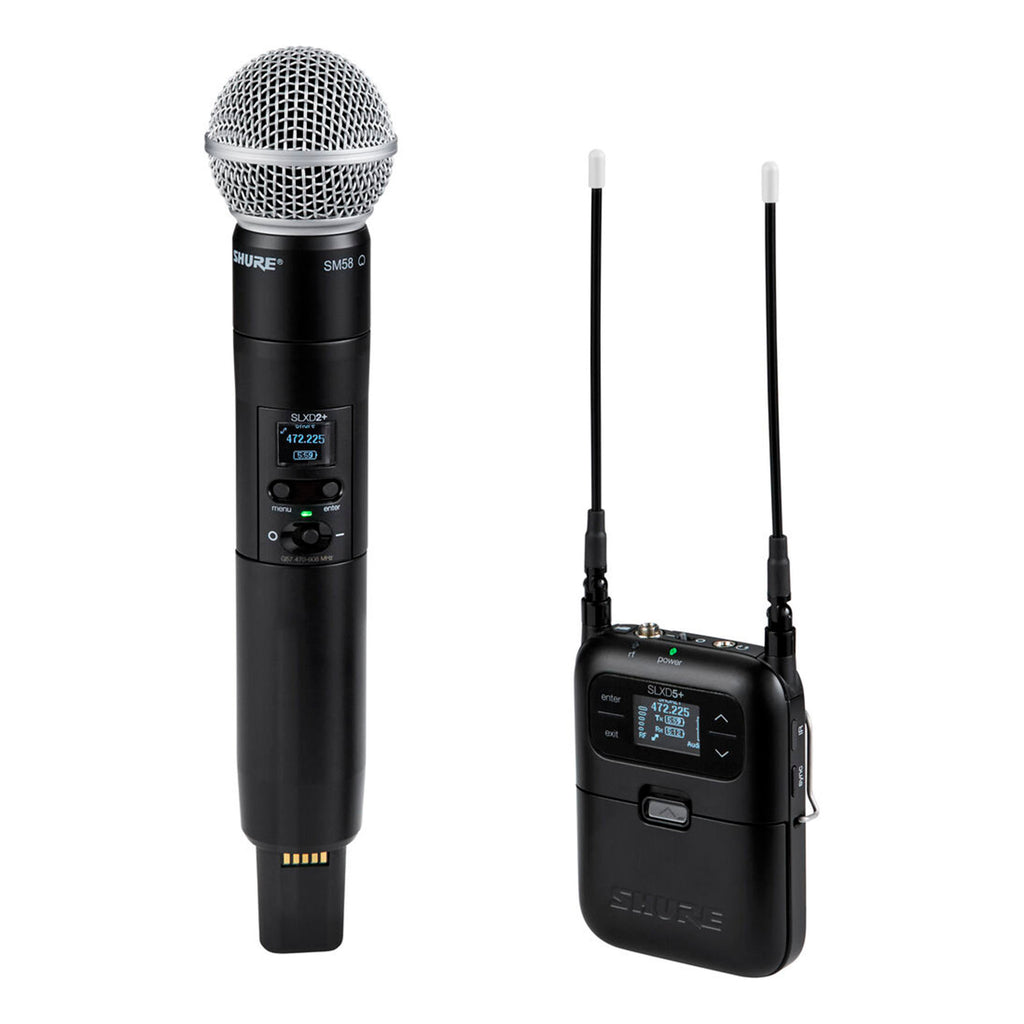

The Shure SLXD25+/58 portable handheld digital wireless system combines professional-grade wireless performance with the legendary SM58® cardioid dynamic microphone. Designed for on-camera cold shoe mounting and audio bag use, it is an excellent solution for videography, ENG, field production, and location sound applications. Delivering transparent 24-bit digital audio with a dynamic range greater than 118 dB, the system ensures clear, natural sound reproduction while maintaining reliable RF performance across a wide 138 MHz tuning range for greater geographical coverage.

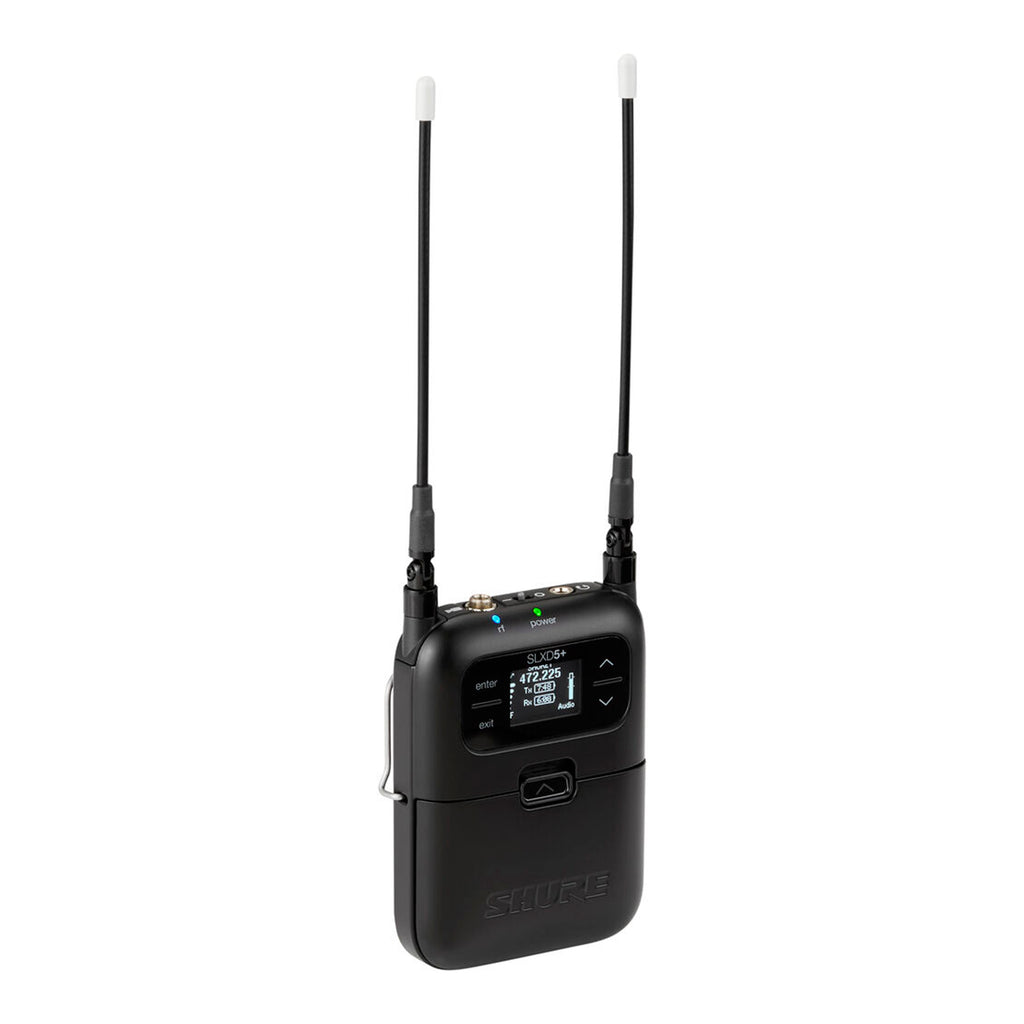

Engineered for demanding wireless environments, the system supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 in 8 MHz bands. The SLXD5+ portable receiver features dual 1/8" outputs, including a headphone monitoring output and a switchable line/mic output for flexible connectivity. Automatic Setup ensures that once transmitters and receivers are linked, they remain connected even in the presence of RF interference. Multi-Mic Mode allows users to scan and sync multiple clean frequencies via IR, enabling monitoring of multiple sources from a single receiver using customizable front-panel controls.

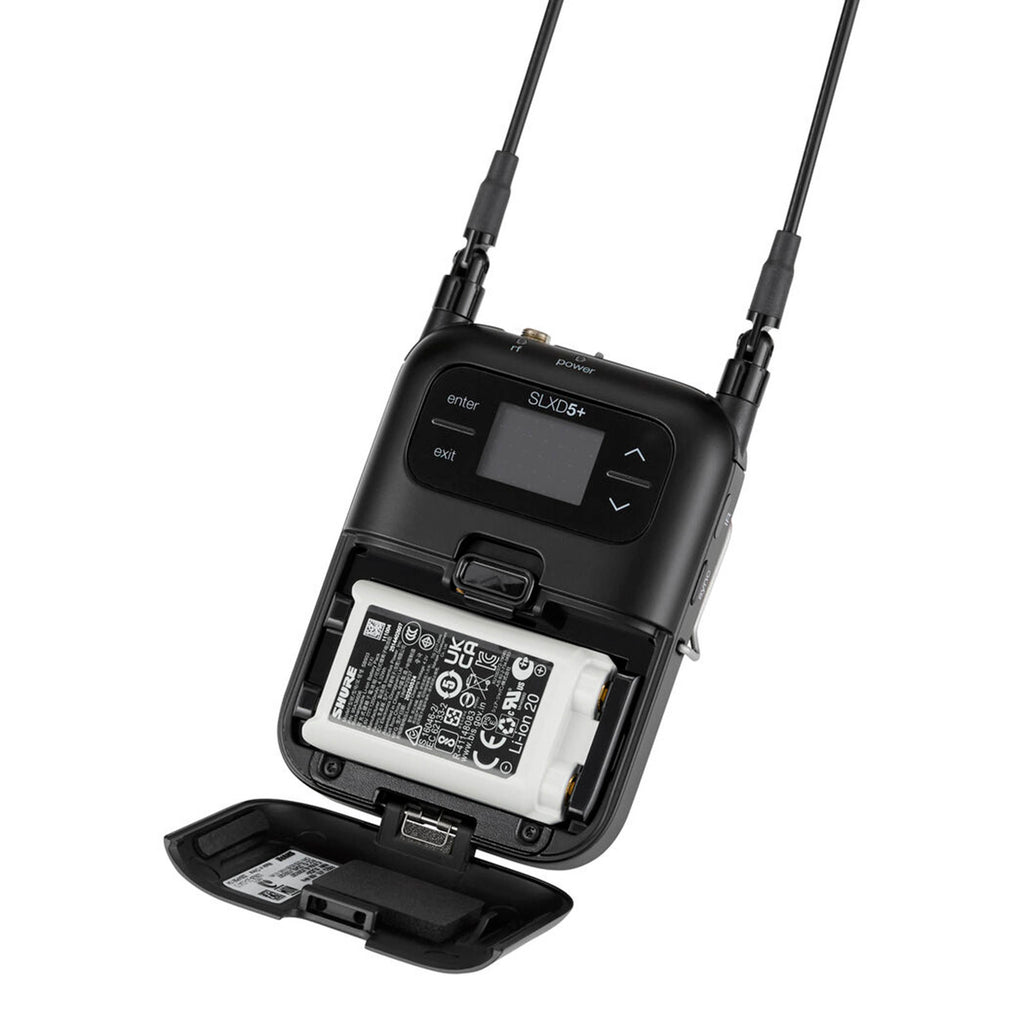

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including frequency changes, power output adjustments, control locks, and firmware updates. The system can also be monitored and managed through Wireless Workbench desktop software or the WWB Mobile app via Wi-Fi or Bluetooth. Built-in Shure Digital Feedback Reducer software helps minimize unwanted feedback, while AES-256 encryption ensures secure audio transmission. Powered by two AA batteries or optional Shure SB903 Li-ion rechargeable batteries, the system offers up to 8 hours of operation (SLXD1+) or up to 5.5 hours (SLXD5+), all housed in a portable, ergonomic design with rugged metal construction.
Included in the Box:

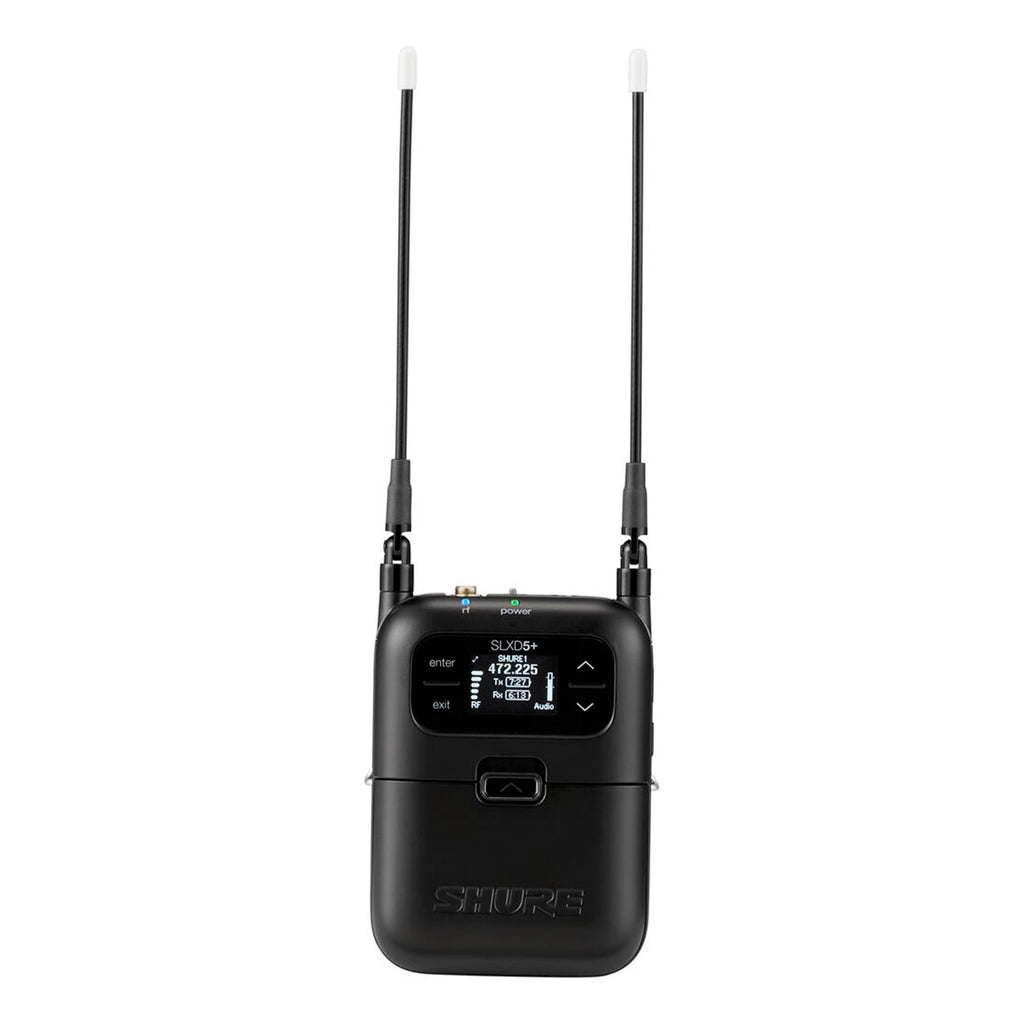

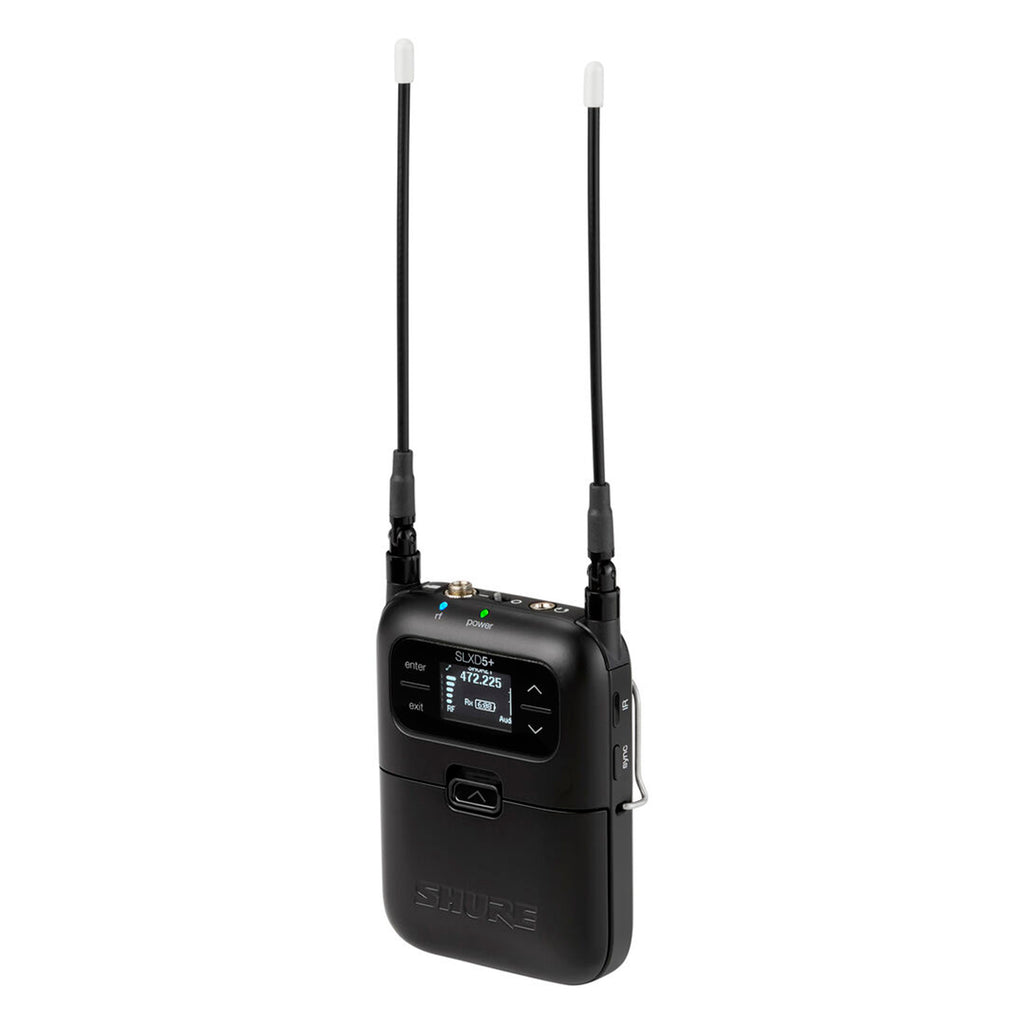

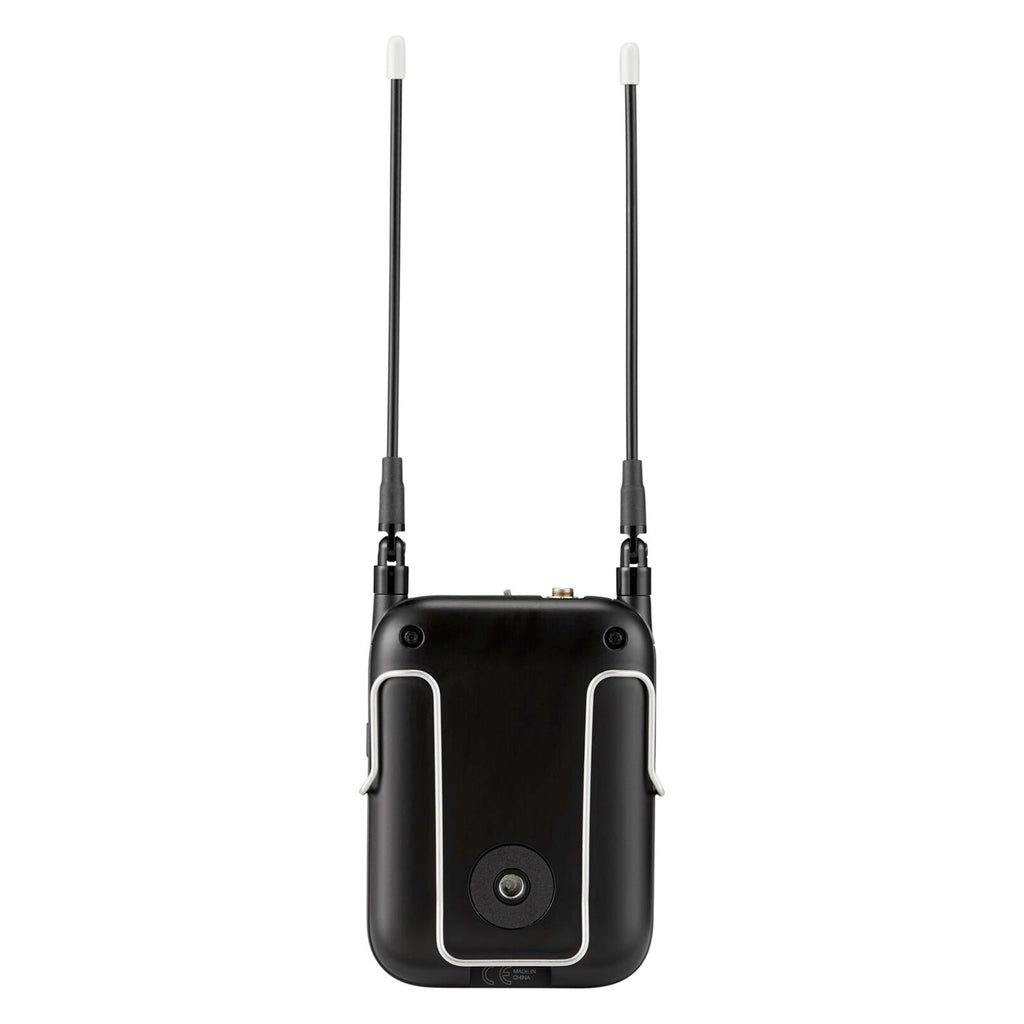

1 x SLXD5+ Single-Channel Portable Wireless Receiver

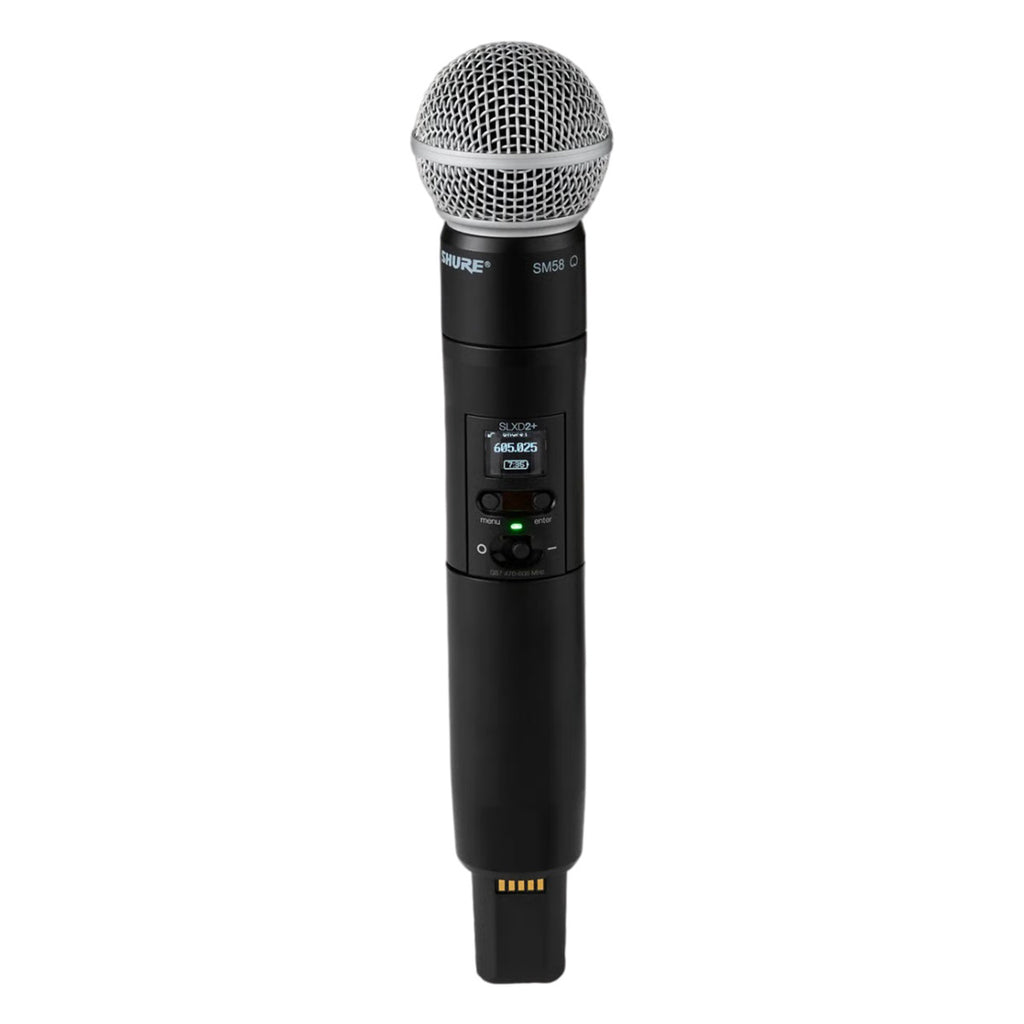

1 x SLXD2+/58 Handheld Transmitter with SM58® Cardioid Dynamic Microphone
1 x Microphone clip
2 x Zippered Carrying Pouches
4 x AA batteries
1 x Leather protective sleeve with integrated belt clip
1 x WA311 Non-Conductive Cold Shoe Mount Adapter
Product Specifications:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Cardioid
Frequency Response: 50 Hz to 15 kHz
Sensitivity: -54.5 dBV/Pa
Color: Black
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Mobile App Compatible: Yes (Android & iOS)
Receiver Type: 1x Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: 2x Removable 1/4 Wave Flexible Whip
Number of Audio Channels: 1

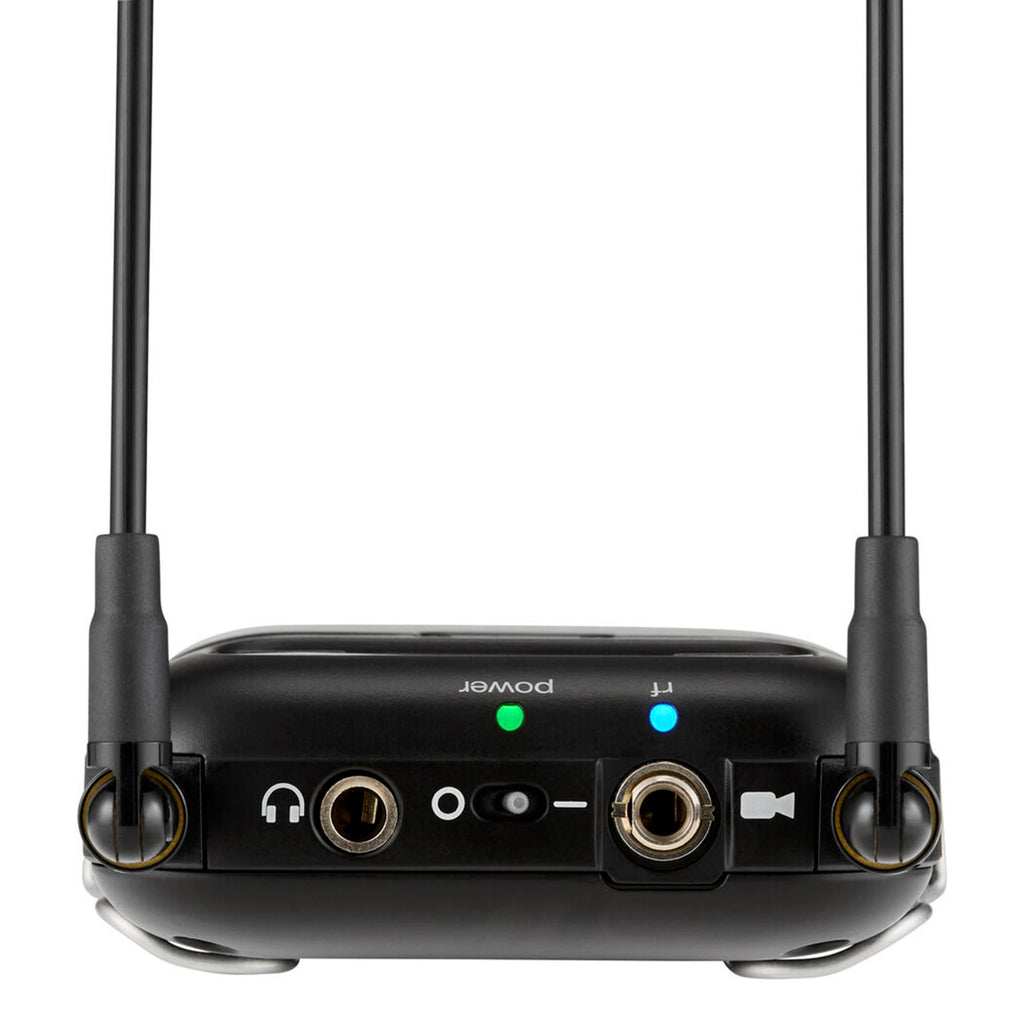

Audio I/O: 1x 1/8" / 3.5 mm TRS Balanced Mic/Line Output, 1x 1/8" / 3.5 mm TRS Headphone Output
USB/Lightning Connectivity: 1x USB-C Female (Bus Power)
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: AC Input
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Bias/Plug-In & Phantom Power: N/A (Fixed-Capsule Handheld Transmitter)
Muting: Off/On Switch
Sync Method: IR
Display: Backlit LCD
Receiver Battery Type: 2x AA (Included)
Receiver Battery Life: 5.5 Hours
Transmitter Battery Type: 2x AA (Included)
Transmitter Battery Life: 8 Hours
AC/DC Power Adapter: 15 VDC (Included)
Receiver:
Weight: 0.4 lbs. / 182 g
Dimensions (L x W x H): 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
Handheld Transmitter:
Weight: 5.1 oz / 144 g
Dimensions (L x W x H): 6.9 x 1.5" / 176 x 37 mm
Shipping Weight: 3.09 lbs.
Shipping Dimensions (L x W x H): 11.81 x 9.06 x 3.54 in
