Description

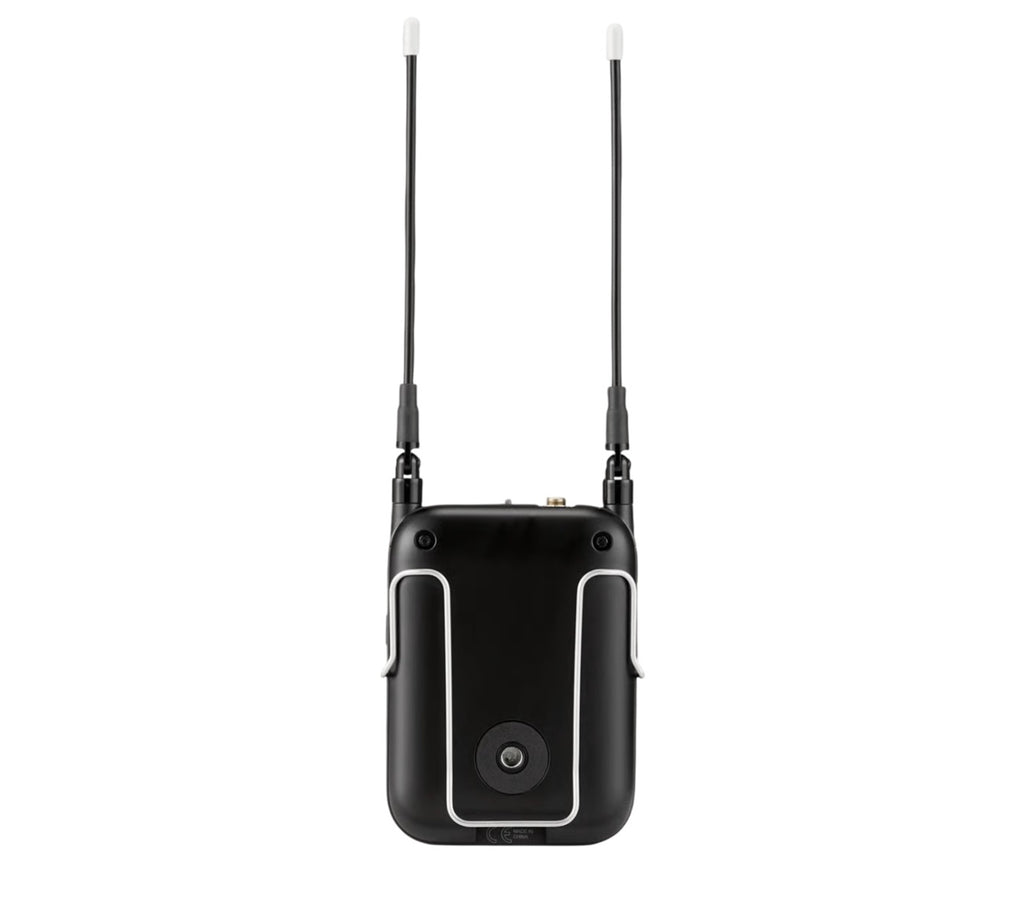

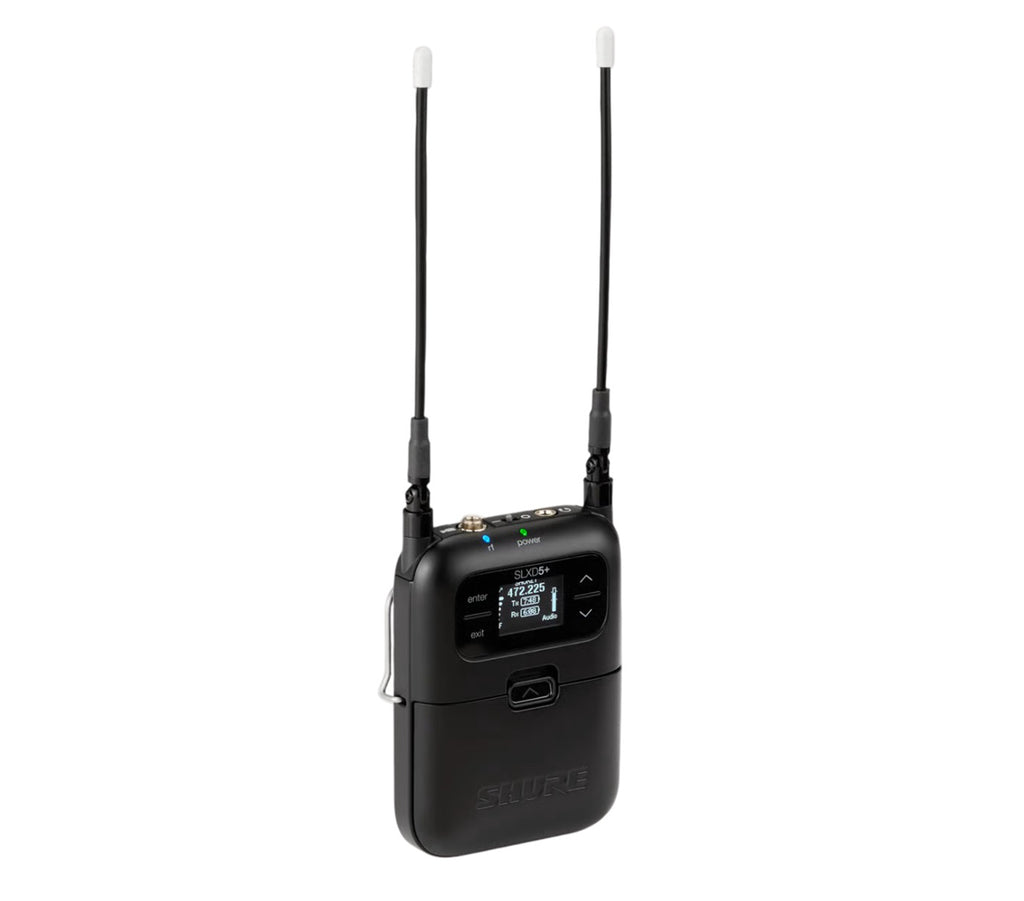

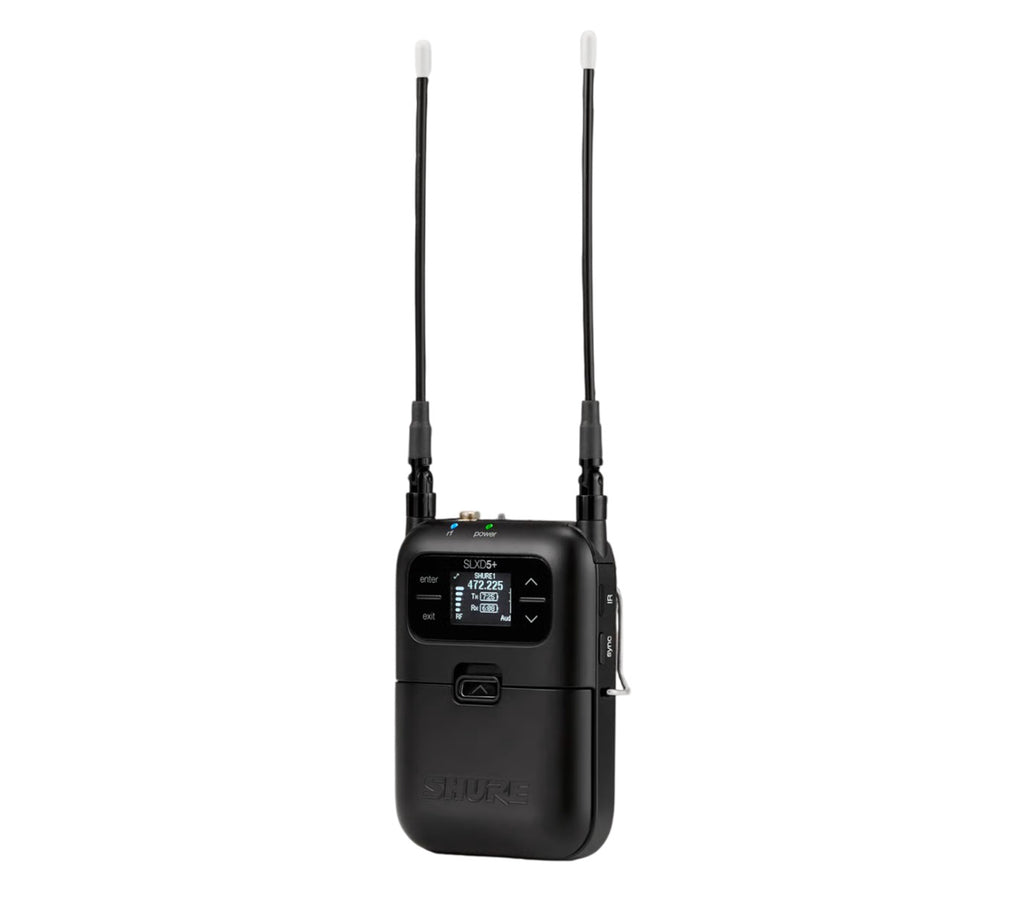

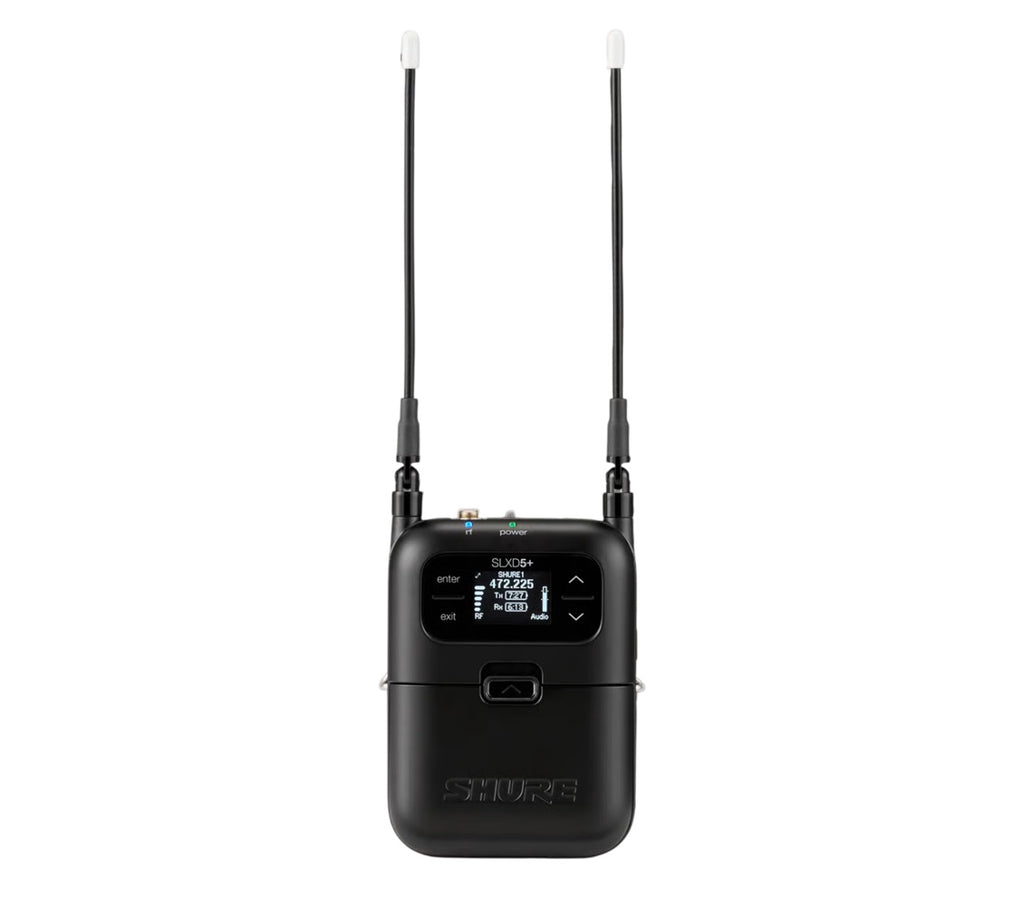

The Shure SLXD5+ is a powerful and portable digital wireless receiver designed for professional on-camera mounting or use in audio bags. Built with a compact, rugged metal chassis and ergonomic single-channel design, it delivers reliable UHF wireless performance for field production, broadcasting, and filmmaking. With transparent 24-bit digital audio and an impressive dynamic range of over 118 dB, the receiver ensures exceptionally clear and natural sound quality in demanding recording environments.
Designed for dependable RF performance, the SLXD5+ features a wide 138 MHz tuning range that enables broad geographic compatibility and supports multiple simultaneous systems. It can operate up to 11 systems within 6 MHz TV bands or up to 14 systems within 8 MHz TV bands. Automatic setup keeps transmitters and receivers linked even when RF interference occurs, while ShowLink Ease allows remote control of transmitter settings such as frequency changes, output power, control locks, and firmware updates directly from the receiver.
The receiver includes dual 1/8" outputs for flexible connectivity, offering a headphone monitoring output and a switchable line/mic output for cameras and recorders. Advanced features such as Multi-Mic Mode allow scanning and syncing multiple clean frequencies, while Wireless Workbench software and the WWB Mobile app enable monitoring and control via Wi-Fi or Bluetooth. With AES-256 encryption, Shure’s Digital Feedback Reducer technology, and up to 5.5 hours of operation using AA batteries or optional rechargeable batteries, the SLXD5+ delivers secure, reliable, and professional wireless performance wherever production takes you.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Mobile App Compatible: Yes (Android & iOS)
Receiver Type: 1x Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: 2x Removable 1/4 Wave Flexible Whip
Number of Audio Channels: 1

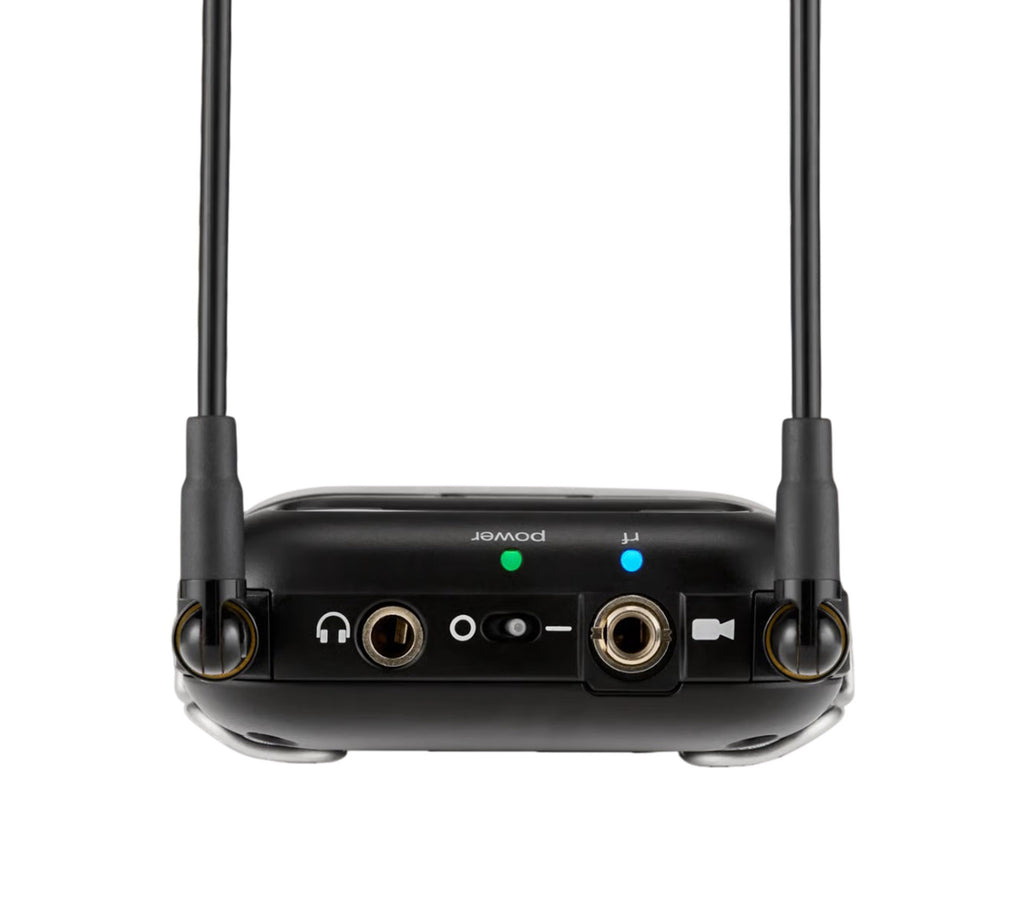

Audio I/O: 1x 1/8" / 3.5 mm TRS Balanced Mic/Line Output, 1x 1/8" / 3.5 mm TRS Headphone Output
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: Battery

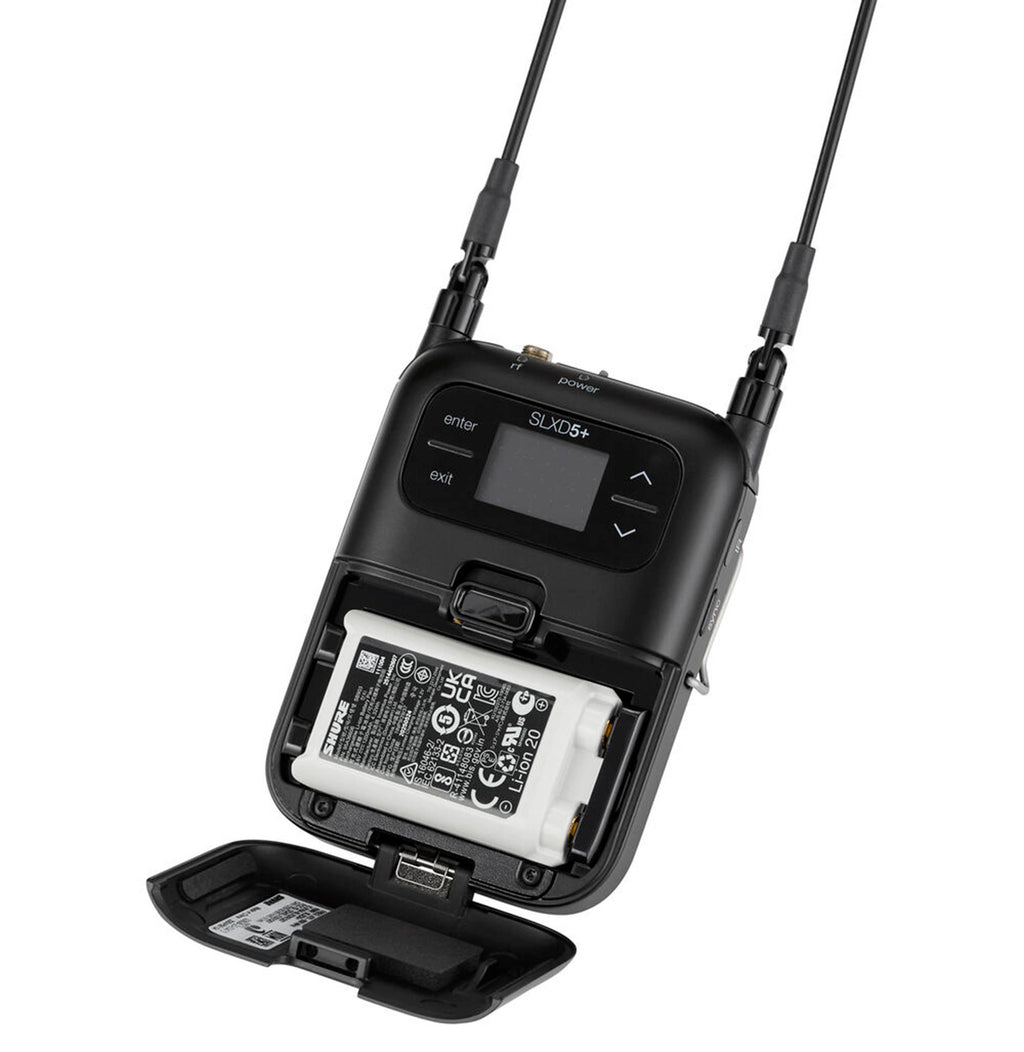

Receiver Battery Type: 2x AA (Included), 1x Shure SB903 (Not Included)
Receiver Battery Life: 5.5 Hours
Weight: 6.4 oz / 182 g
Dimensions (L x W x H): 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
Shipping Weight: 1.33 lbs
Shipping Dimensions (L x W x H): 11.4 x 6.6 x 3 in
