DAS Audio Vantec 20A Powered Line Array Speakers w/ Vantec 218A - Kit

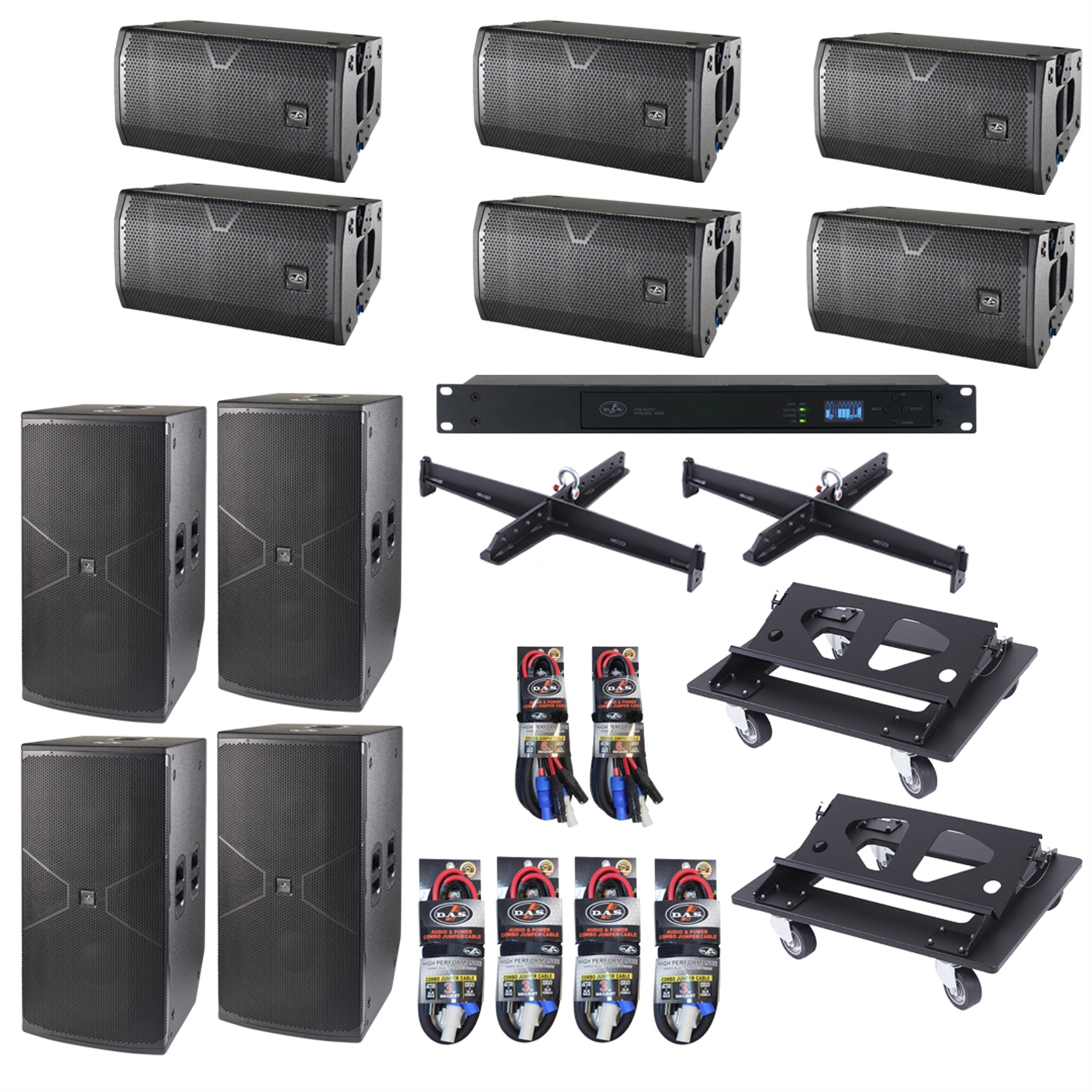

Package Includes:

• 6 DAS Audio VANTEC-20A Active 2-Way Powered Curved Source Array Speaker - Black
• 4 DAS Audio VANTEC 218A DJ Powered Subwoofer System - Black
• 4 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable
• 2 D.A.S. Audio Combo Jumper Cable / 14 AWG Pwr + 16 AWG Audio (6 FT)
• 2 DAS Audio AX-VT20 Rigging Bumper
• 1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor
• 2 DAS Audio PL-VT20S Steel Transport Dolly for Up to 4 VANTEC-20A Speakers - Black

This Speaker package includes the DAS Audio VANTEC-20A active curved source line array with 1500 W peak Class D amplification, DAScontrol interface, Click-Lock rigging, and wireless control via DASlinkAPP, paired with the powerful VANTEC-218A dual 18" powered subwoofer delivering 4000 W peak bass reinforcement with advanced DSP and rugged birch plywood construction. For seamless connectivity, it comes with both the 3-Feet D.A.S. Combo Jumper Cable and the CJC-6FT Combo Jumper Cable, combining power and audio in a single run for quick and efficient setup. The package also includes the DAS Audio AX-VT20 rigging bumper for safely flying up to 5 VANTEC-20A units, the INTEGRAL-M26X DSP processor for precision EQ, delay, and system control via ALMA software, and the PL-VT20S steel transport dolly designed to carry up to 4 VANTEC-20A speakers with ease and durability.

6 DAS Audio VANTEC-20A Active 2-Way Powered Curved Source Array Speaker - Black

The VANTEC-20A is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today is sound hire professionals. Whether it be stacked on the VANTEC-118A companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.

Designed for use in arrays of up to 5 units, the VANTEC-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5º up or down tilt.

The DAScontrolTM interface allows users to easily configure the VANTEC-20A systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A  active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A is used individually, the DASlinkAPP can be used to stream music in high definition stereo and remotely control the functions of the system.

The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 W peak Class D amplifier in a bi-amplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

Product Specifications:

Frequency Range (-10 dB): 63 Hz – 20 kHz

Horizontal Coverage (-6 dB): 90º

Vertical Coverage: 15º

Maximum Peak SPL at 1 m: 135 dB

Nominal Amplifier Power (continuous): 750 W

Nominal Amplifier Power (peak): 1500 W

Input Impeadance: 20 kohms

Input Sensitivity: Line: 3 V (+12 dBu)

Audio Signal Input Connector: 2 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

Control: DASlink, DAScontrol

AC Input Connector: powerCon NAC3FCA

AC Output Connector: powerCON NAC3FCB

Operating Range: 90-250 VAC

Current Draw 115 V: 3.0 A

Current Draw 230 V: 1.5 A

4 DAS Audio VANTEC 218A DJ Powered Subwoofer System - Black

The VANTEC-218A is a powered bass subwoofer system designed to provide an extended bass response for the VANTEC full-range cabinets. A powerful 4000 Wpeak amplifier drives dual DAS 18LX-long excursion bass loudspeakers incorporating 4″ voice coils and massive magnet structures provide high power handling and impressive output.

The VANTEC-218A is powered by a Class D amplifier with a switch-mode power supply, digital signal processing, and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. Gain control and polarity reverse feature increase user control over the system.

The compact VANTEC-218A cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO flex black paint for durability. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier. The powder-coated steel front grille protects the DAS components.

Product Specifications:

Frequency Range (-10 dB):  Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz

Maximum Peak SPL at 1 m: 140 dB

Nominal Amplifier Power (continuous): 2000 W

Nominal Amplifier Power (peak): 4000 W

Input Type: Balanced

Input Impedance: 20 kohms

Input Sensitivity: 3 V (+12 dBu)

Audio Signal Input Connector: 2 x Female XLR

Audio Signal Loop Thru Connector: 2 x Male XLR

AC Input Connector: powerCon NAC3FCA

AC Output Connector: powerCON NAC3FCB

Operating Range: 90-250 VAC

Current Draw 115 V: 6.0 A

Current Draw 230 V: 3.0 A

Color: Black

Dimensions (H x W x D): 42.1 x 21.5 x 26.6 in

Net Weight: 72,0 kg (158,4 lbs)

·       4 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable

The 3-Feet D.A.S. Combo Jumper Cable is a specialty interconnect cable allowing you to quickly and easily pass power and audio signals between speakers. The jumper features a 14 AWG power cable with PowerCon connectors and a 16 AWG audio cable with XLR connectors.

Product Specifications:

Connectors: 2 x PowerCon, 2 x XLR

Cable Length: 3.0' / 0.9 m

Weight: 0.70 lbs

·       2 D.A.S. Audio Combo Jumper Cable / 14 AWG Pwr + 16 AWG Audio (6 FT)

The D.A.S. Audio CJC-6FT Combo Jumper Cable is a professional-grade interconnect solution designed for quick and efficient linking of powered loudspeakers. Combining both power and audio in one cable, it simplifies setup by reducing cable clutter while ensuring reliable signal and power transfer. It features a 14 AWG power cable with PowerCON connectors and a 16 AWG balanced audio cable with XLR connectors, making it ideal for connecting compatible DAS Audio systems in both live and installed sound environments.

Product Specifications:

Cable Length: 6 ft (1.83 m)

Power Cable Gauge: 14 AWG

Audio Cable Gauge: 16 AWG

Power Connectors: PowerCON (male to female)

Audio Connectors: XLR (male to female, balanced)

Construction: Integrated dual-cable design for combined power and audio

Application: Linking powered speakers for power and signal

Compatibility: Suitable for DAS Audio powered loudspeakers and other compatible systems

 2 DAS Audio AX-VT20 Rigging Bumper

The DAS Audio AX-VT20 is a professional rigging bumper designed for flying VANTEC-20A line array systems, supporting up to 5 units. Built from durable, high-strength materials and finished in black, it ensures safe, stable, and precise suspension for live sound applications.

Product Specifications:

Type: Rigging bumper

Compatibility: VANTEC-20A active line array

Max Capacity: 5 units

Color: Black

Weight: 6.5 kg (14.3 lbs)

1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor

The D.A.S. Audio INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.

Remote control and monitoring are possible via ALMA software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.

The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers. External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA software.

Product Specifications:

Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)

Max Input Level: +22 dBu

Max. Output Level: +22 dBu

Controls: Power On/Off, Navigation Buttons

Sampling Rate: 48 kHz

Display OLED: 1.54″

Cooling: Side-Right-to-Left

LED Indicators: On, Comms, Signal, Limit

AC Input Connector: IEC 15A

Power Supply: Universal Mains Switch Mode

Operating Range: 90 – 250 VAC

Analog Input Channels: 2

Analog Output Channels: 6

AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range

DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range

Internal Precision: 32 Bit, 64 Bits Double Precission

Latency: 1 ms

Delay: 50ms per input / 135ms per output

Equalizer: Bell, Lo/Hi-Shelving, Hos

Crossover: Linkwitz-Riley, Butterworth, Bessel

High and Low Pass Filters: Up to 48 dB/oct

Limiters: RMS

Dimensions (H x W x D): 44 x 483 x 210 mm

1,7 x 19,0 x 8,3 in

Net Weight: 2,5 kg (5,5 lbs)

2 DAS Audio PL-VT20S Steel Transport Dolly for Up to 4 VANTEC-20A Speakers - Black

The DAS Audio PL-VT20S is a sturdy steel transport dolly designed specifically for the DAS Audio VANTEC-20A line array speakers, accommodating up to 4 units for safe and efficient transport. Finished in black, it offers durability and easy mobility for professional setups.

Product Specifications:

Material: Steel

Capacity: Up to 4 VANTEC-20A units

Color: Black

Compatible Models: DAS Audio VANTEC-20A
