Description

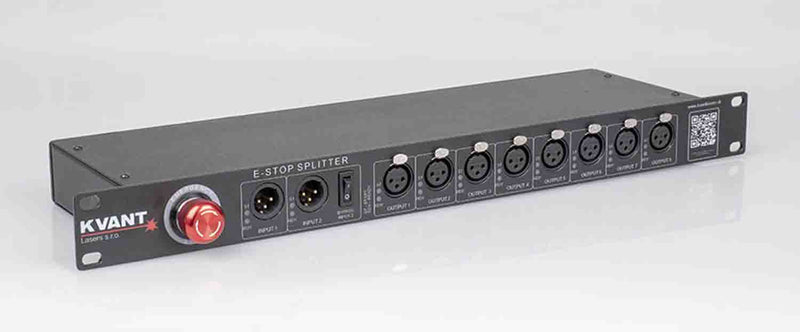

The Kvant Lasers E-STOP splitter 12 Laser Display Projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series. However, in some situations, you may need to control the E-STOP signal from various positions within the setup and/or manage more lasers that are split into multiple groups. The new 12-output E-STOP splitter box offers so many ways how the E-STOP signal can be spread across all the Kvant lasers in a given setup.
The splitter box distributes the signal in a parallel way, making it possible to connect a virtually unlimited number of laser projectors and control them at once/or per group. Each splitter has two E-STOP remote inputs, which allows for two E-STOP remote positions (a.i. FOH and stage) per setup or sub-group.
Product Specifications:
Inputs: 2x [3-Pin XLR]
Outputs: 12x [3-Pin XLR]
Power Requirements [V]: 100-230, 50Hz
Consumption: Max. 20VA
Max. Control Distance: Up To 1000 Meters with A High-Quality Signal Cable.
Ingress Protection Rating: IP 20
Operation Temperature [°C]: 0-40
Housing Color: Black
Required Rack Space: 1U
Weight [Kg]: 4.40
Size [Mm]: 19.01 X 1.77 X 5.51 [WxHxD]
