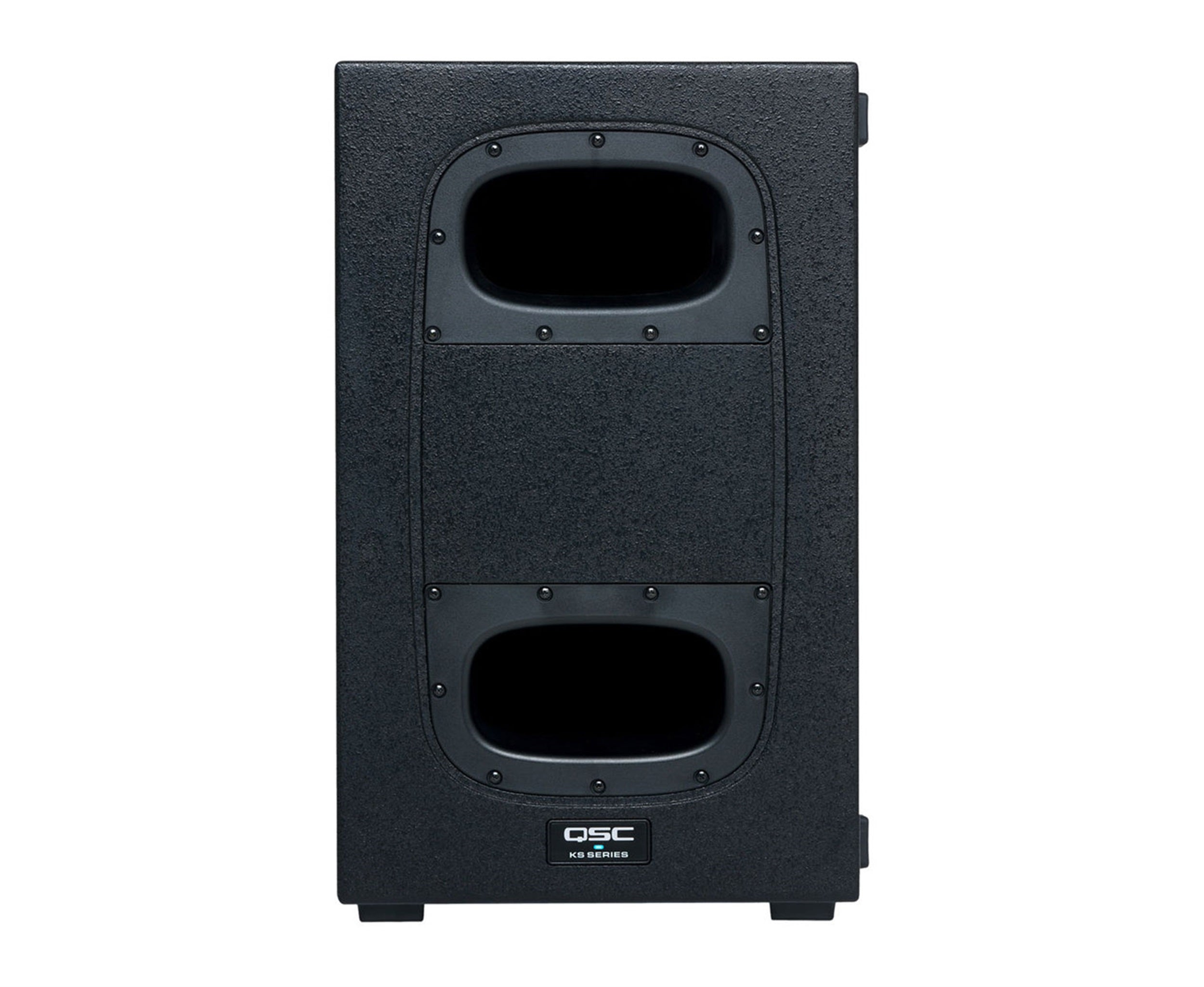

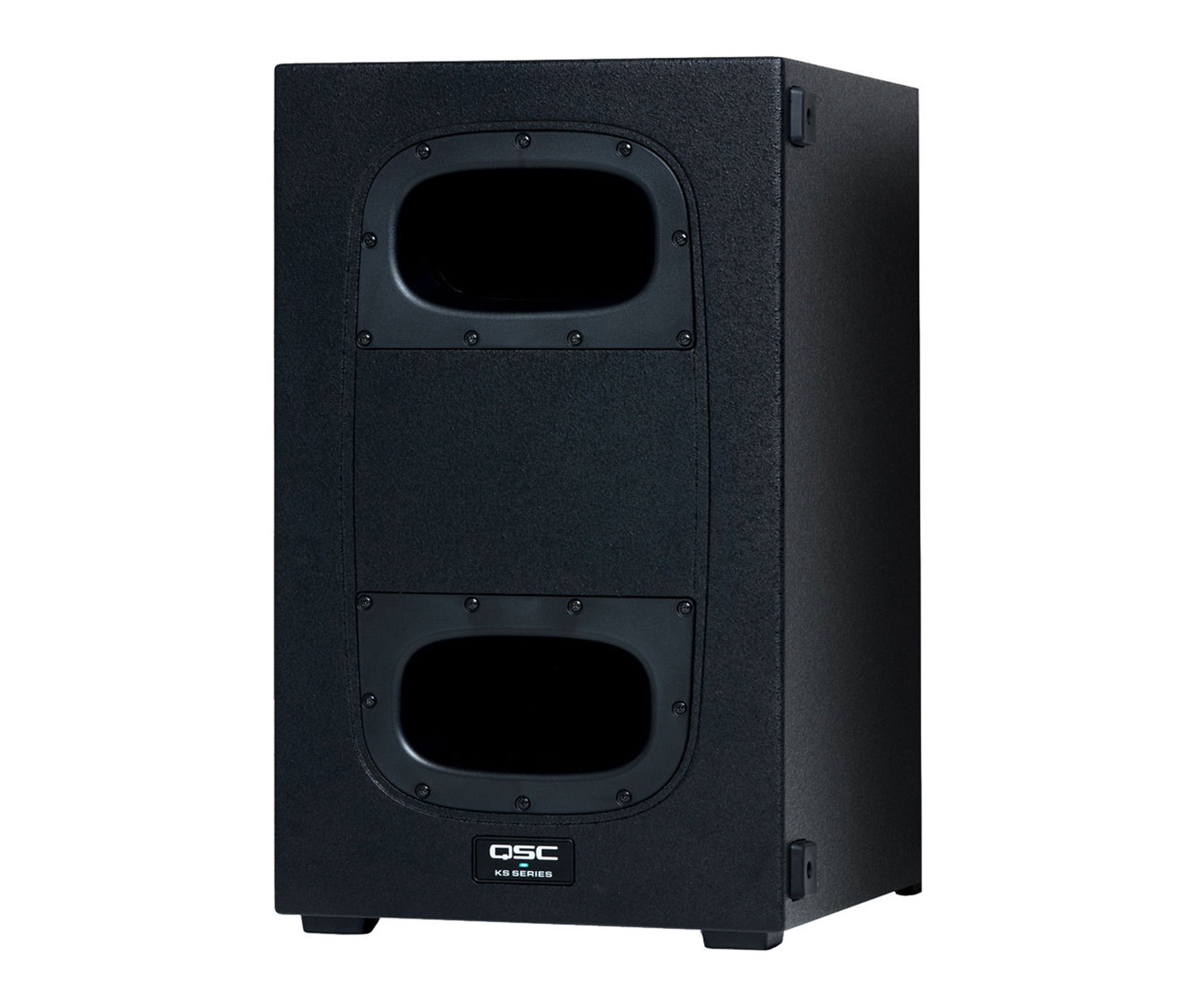

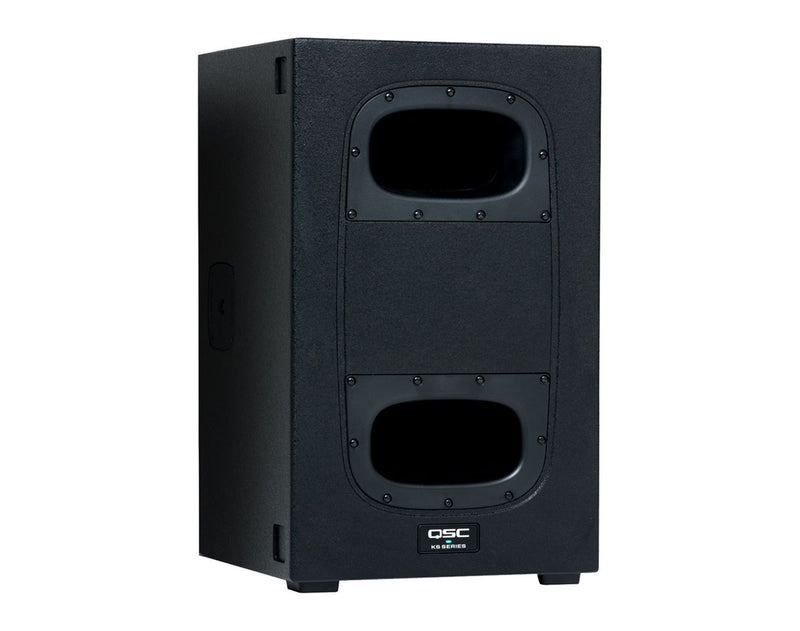

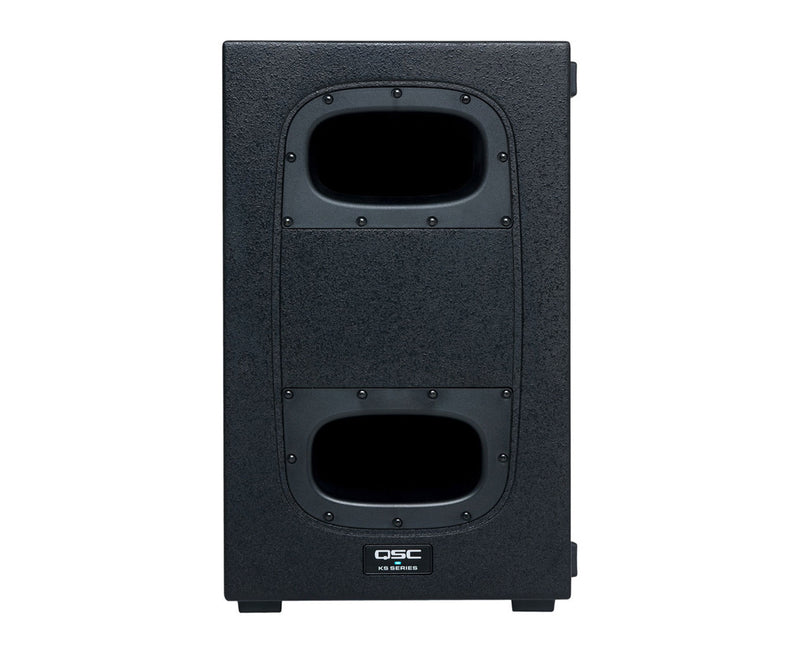

QSC KS112, 12-Inch Compact Powered Subwoofer - Black

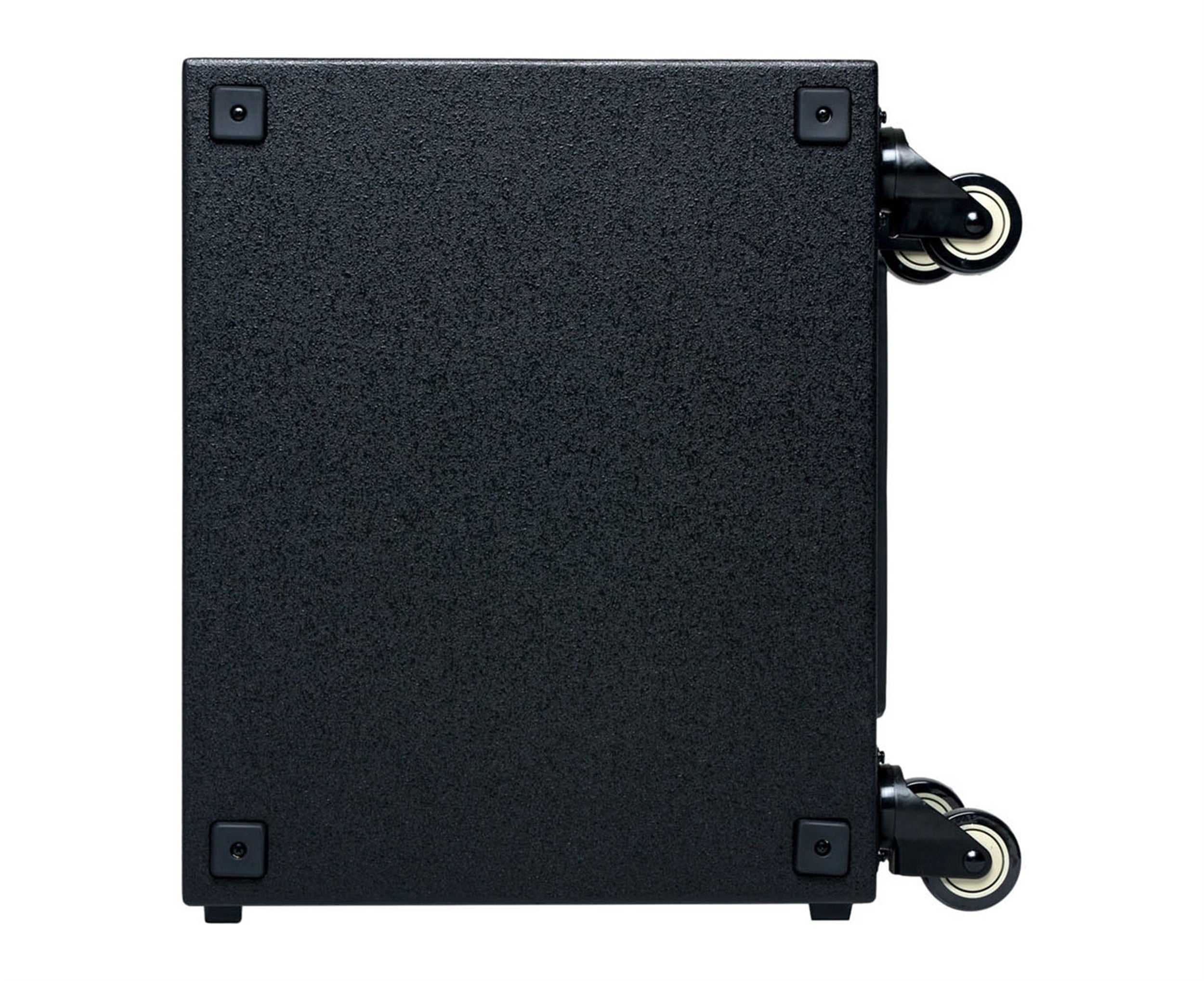

The QSC KS112, 12-Inch Compact Powered Subwoofer - Black is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000-Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

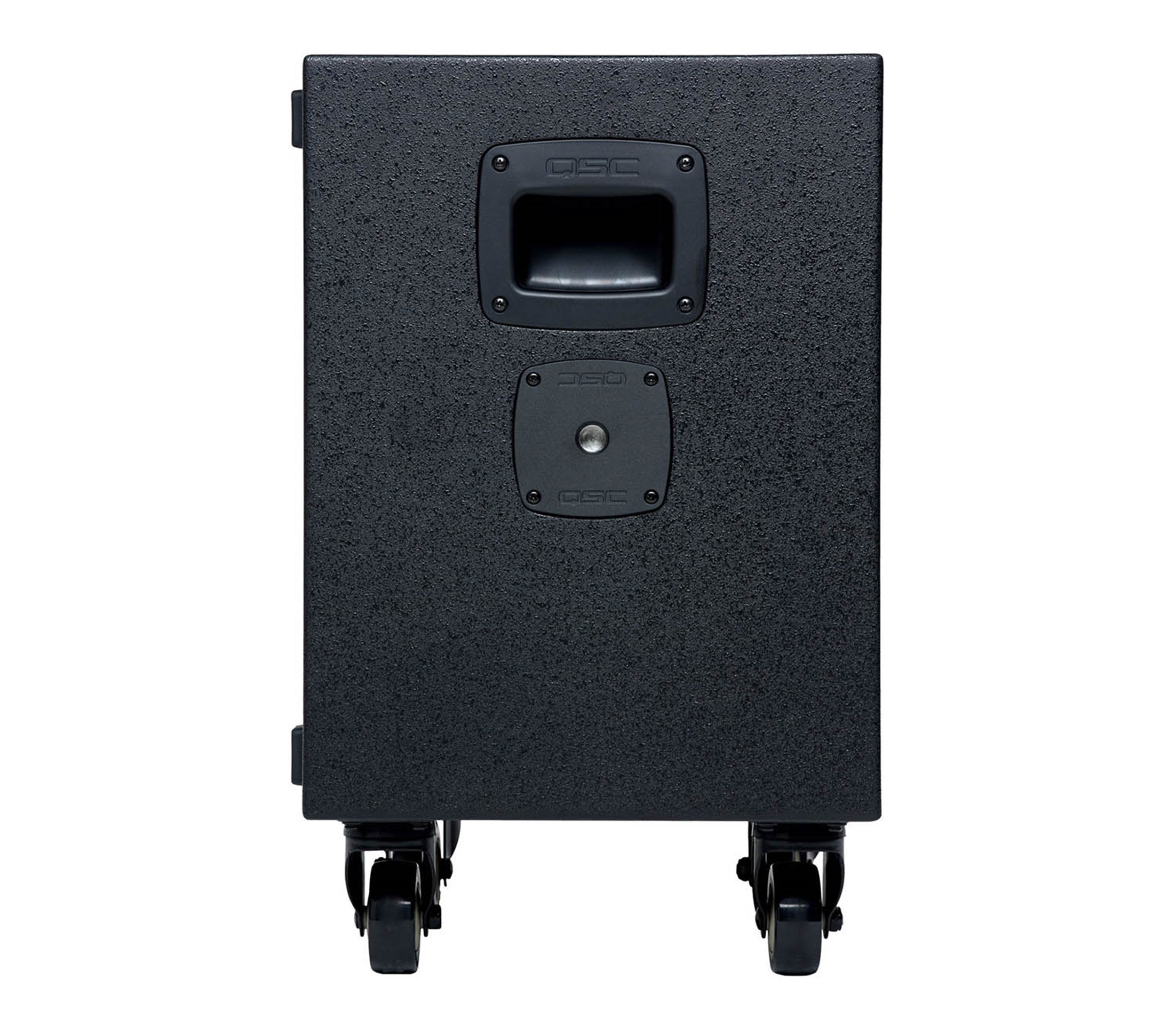

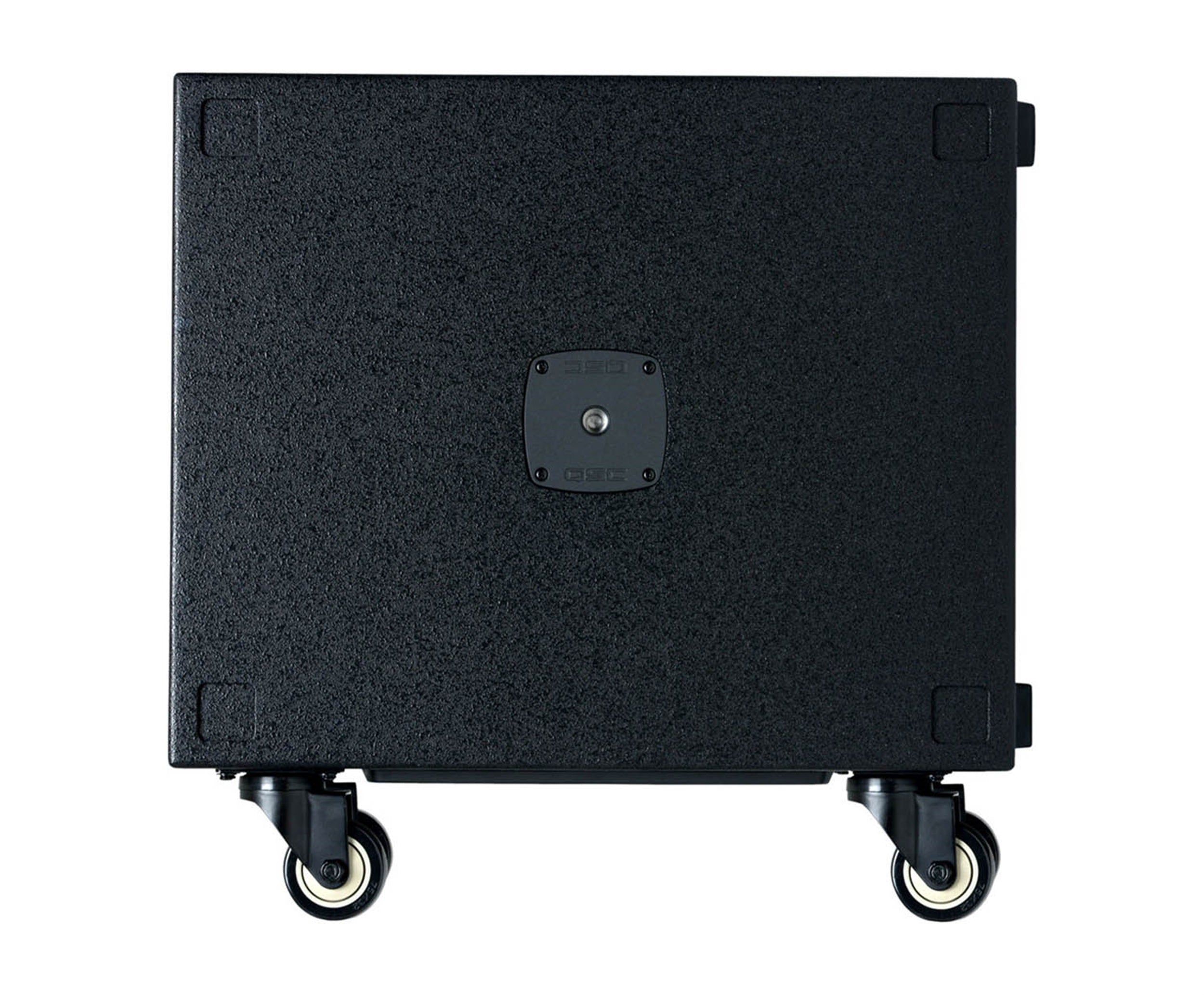

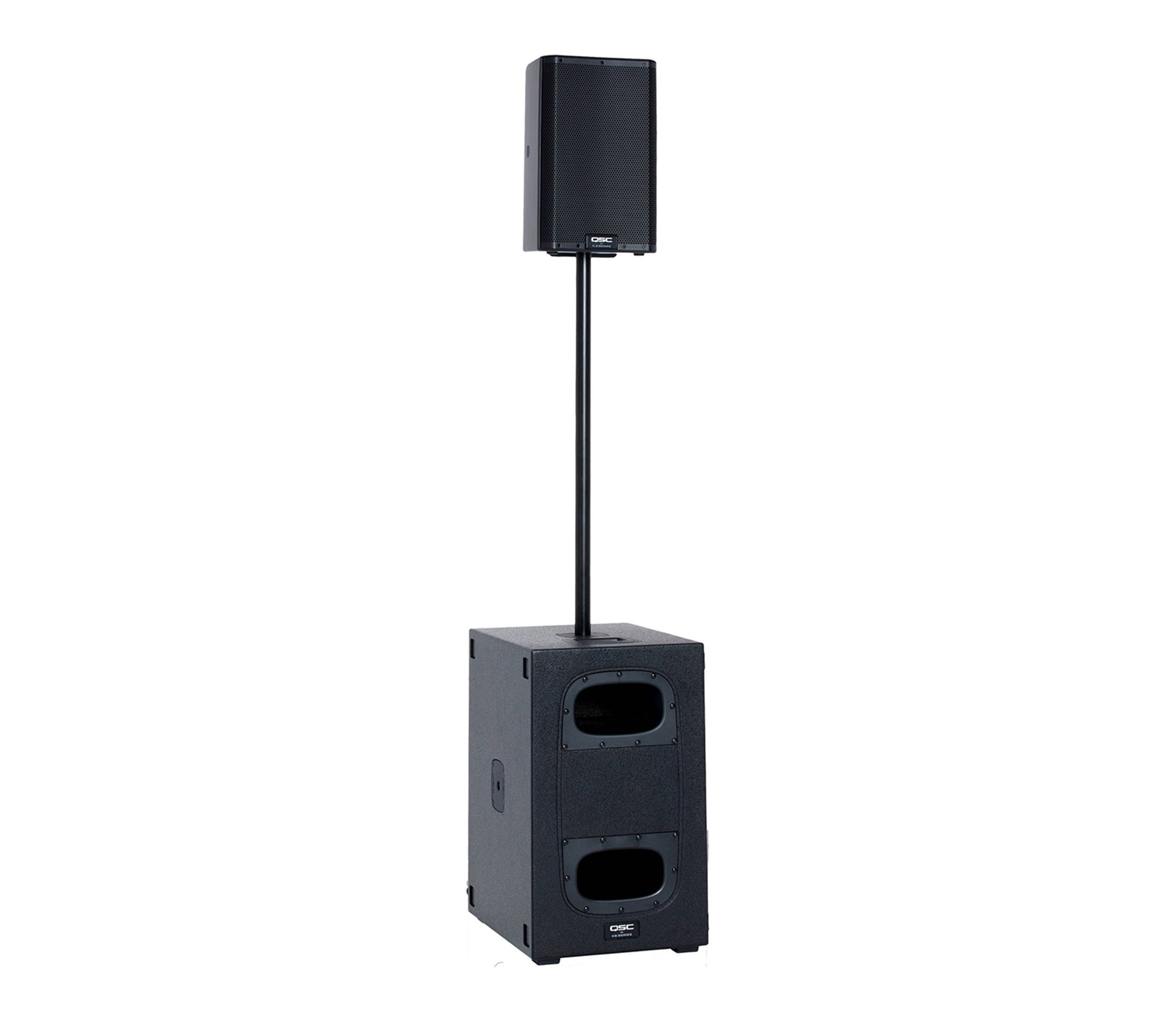

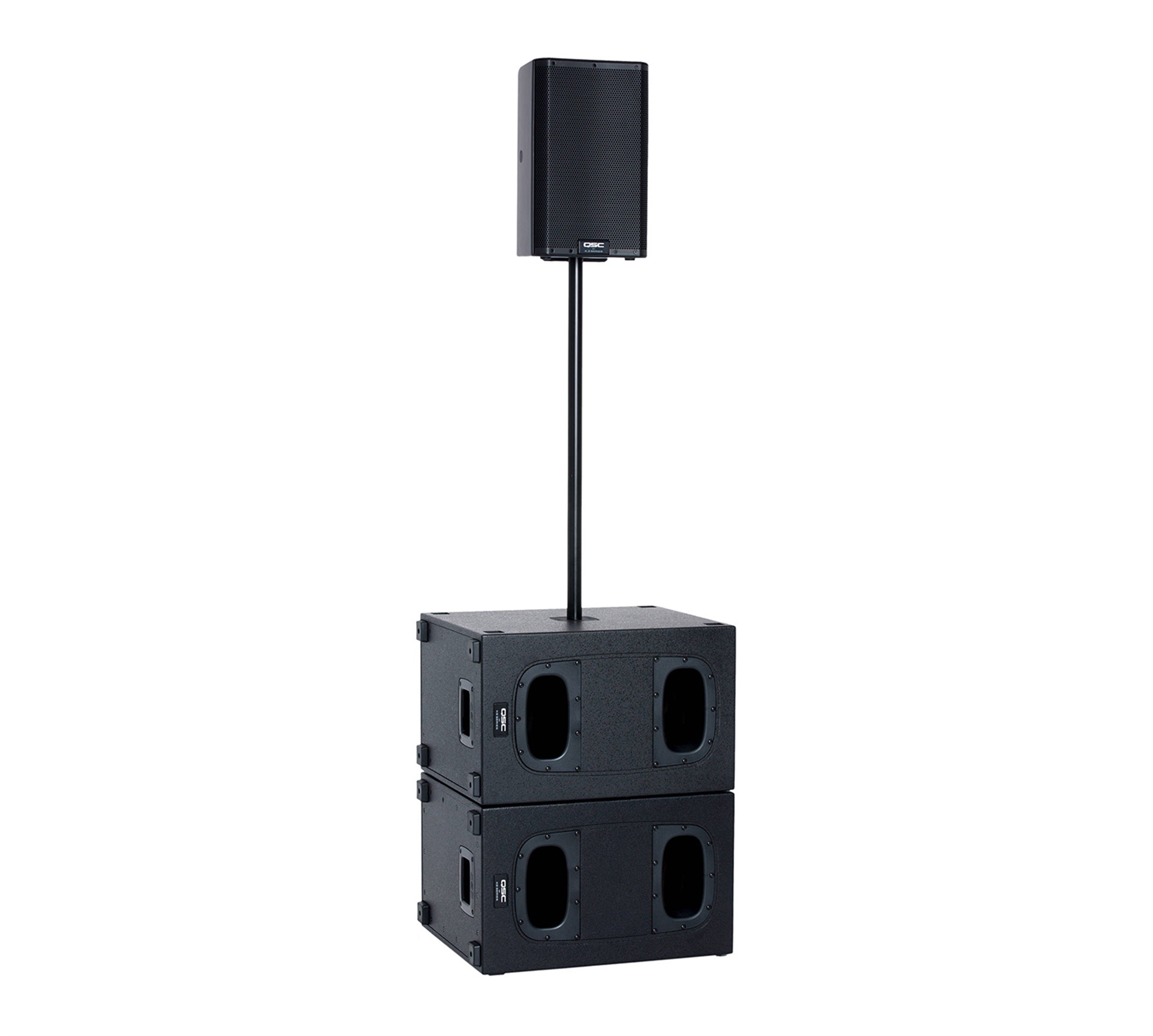

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Product Specifications:

Configuration: 6th-Order Bandpass Subwoofer

LF Transducer: 305 mm (12 in), Cone

Frequency Response (-6 dB): 41 Hz - 108 Hz

Frequency Range (-10 dB): 38 Hz - 121 Hz

Maximum Rated SPL1: 128 dB @ 1 m (peak)

Amplifier:

Class D

2000W (peak)

Cooling: Low-noise, variable speed fan

Controls:

Power On/Off

Gain Control

Rotary encoder

2 × selection buttons

Indicators:

2 × Power LED (front and rear)

Input Signal LED

Limiter Active LED

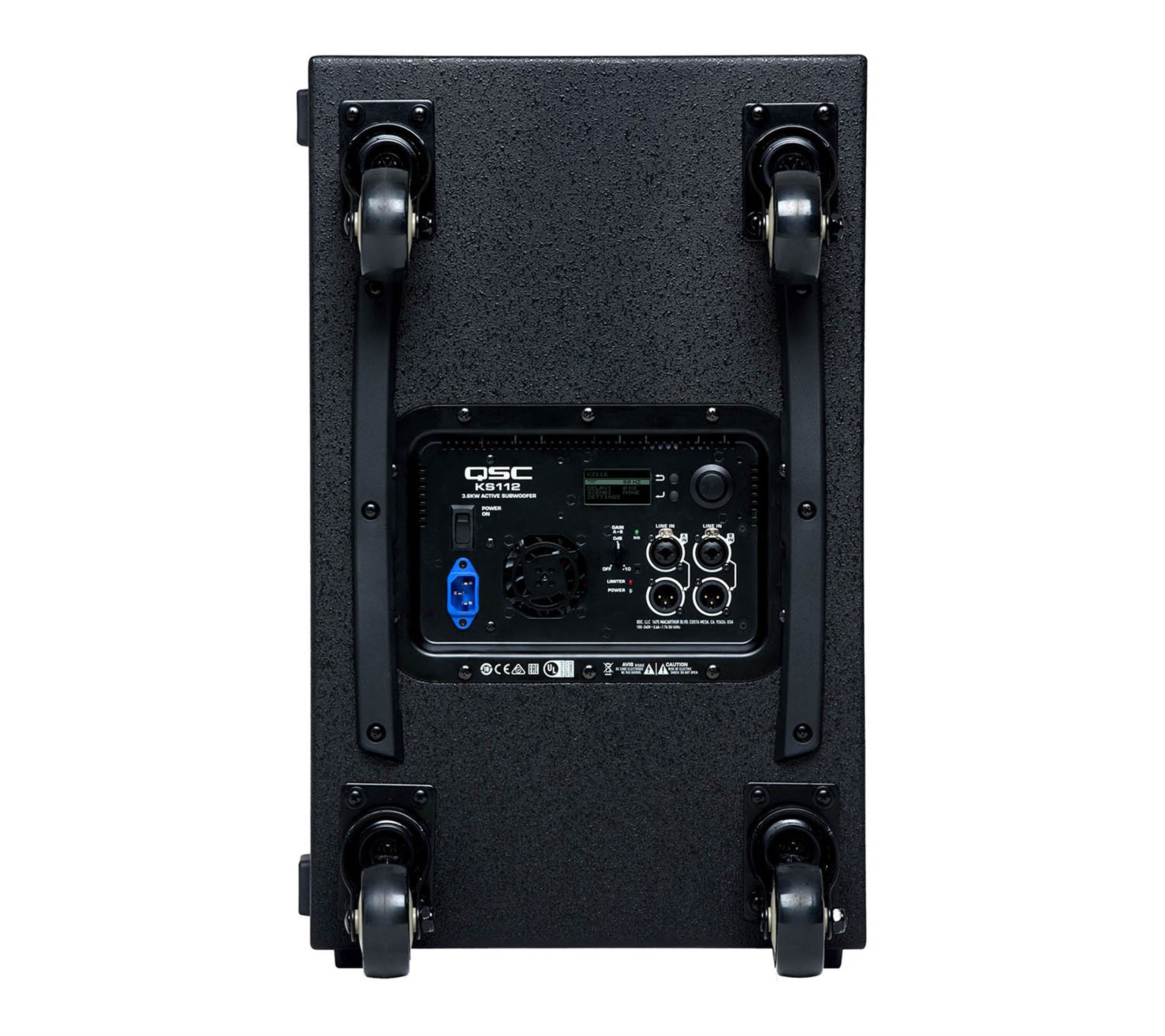

Connectors:

2 × locking XLR/F 1/4-inch combo

2 × XLR/M (Loop-thru Output)

1 × locking IEC power connector

AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz

AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A

Enclosure: 15 mm Birch Plywood

Color: Black (RAL 9011)

Grille: Internal woofer cover



Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

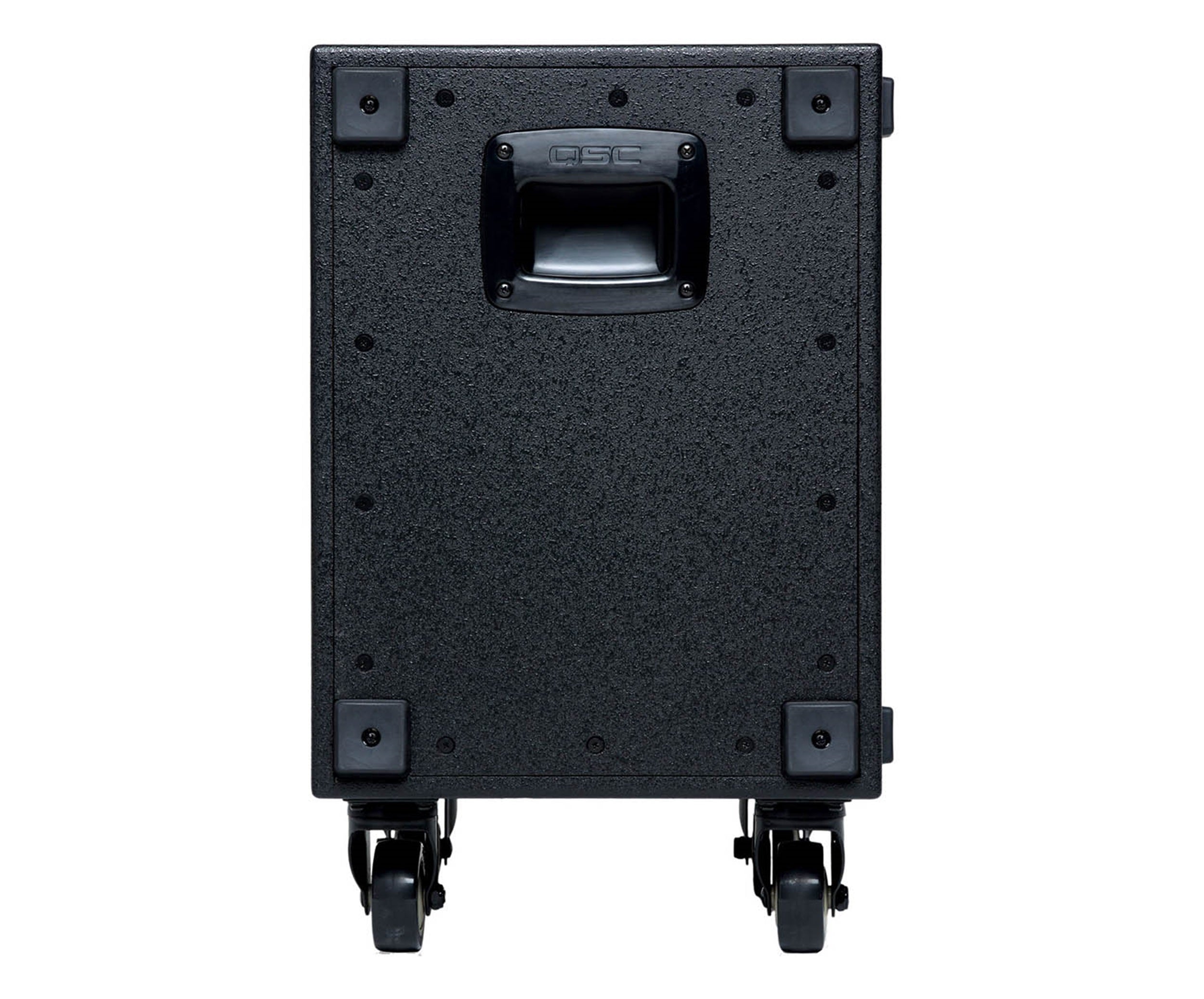

Included Accessories: 4 × Low-Noise, Heavy Duty Casters

Optional Accessories:

KS112 CVR Transport Cover

KS-LOC Lock-Out Cover

SP-26 and SP-36 Loudspeaker Poles

SP-16X Extension Pole

Product Weight: 28.4 kg / 62.6 lbs.

Product Dimensions (H×W×D): 24.5 × 15.5 × 24.25 inches

Shipping Weight: 35 kg / 77.2 lbs.

Shipping Dimensions (H×W×D): 29 × 19.7 × 26.5 inches
