Description

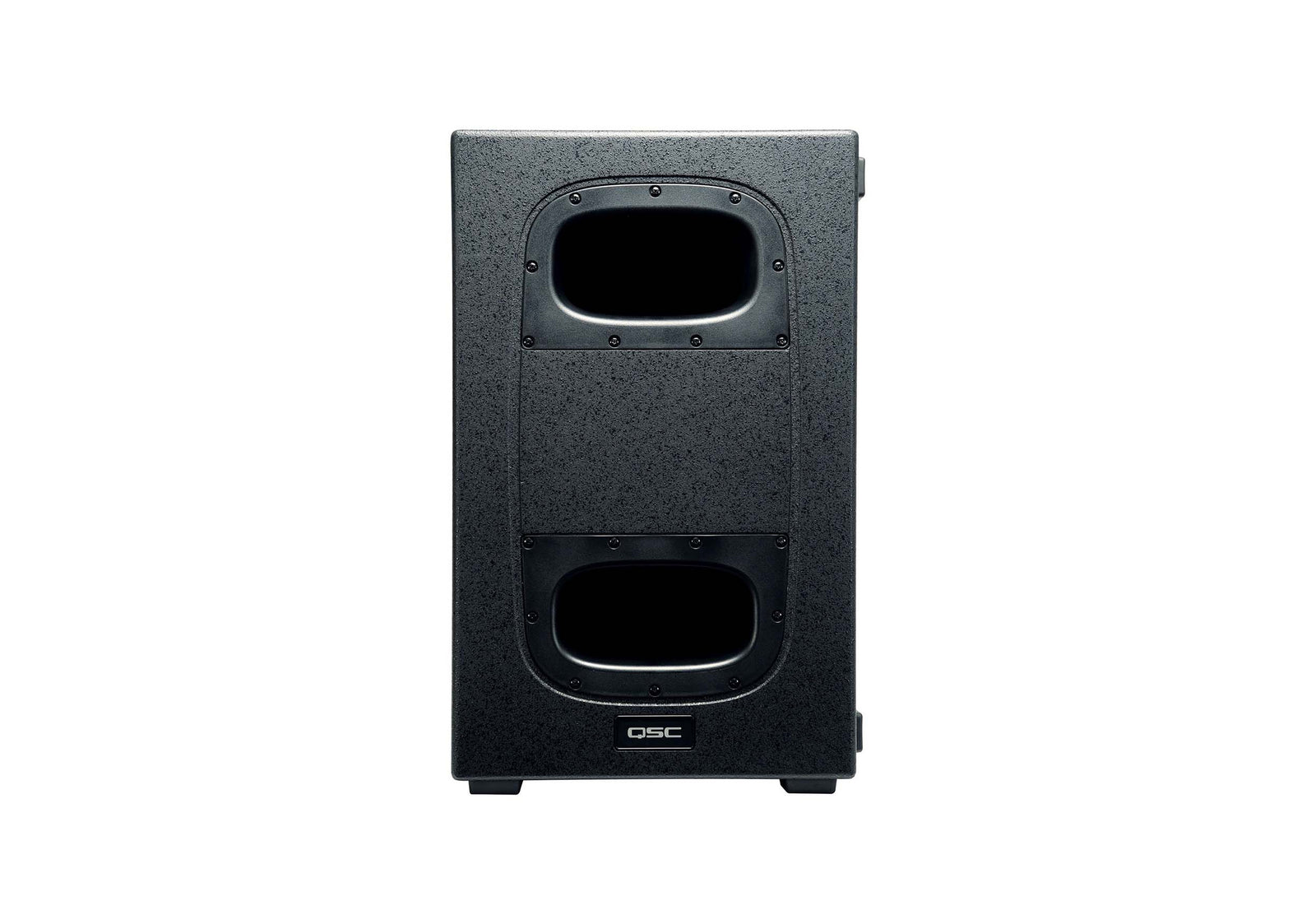

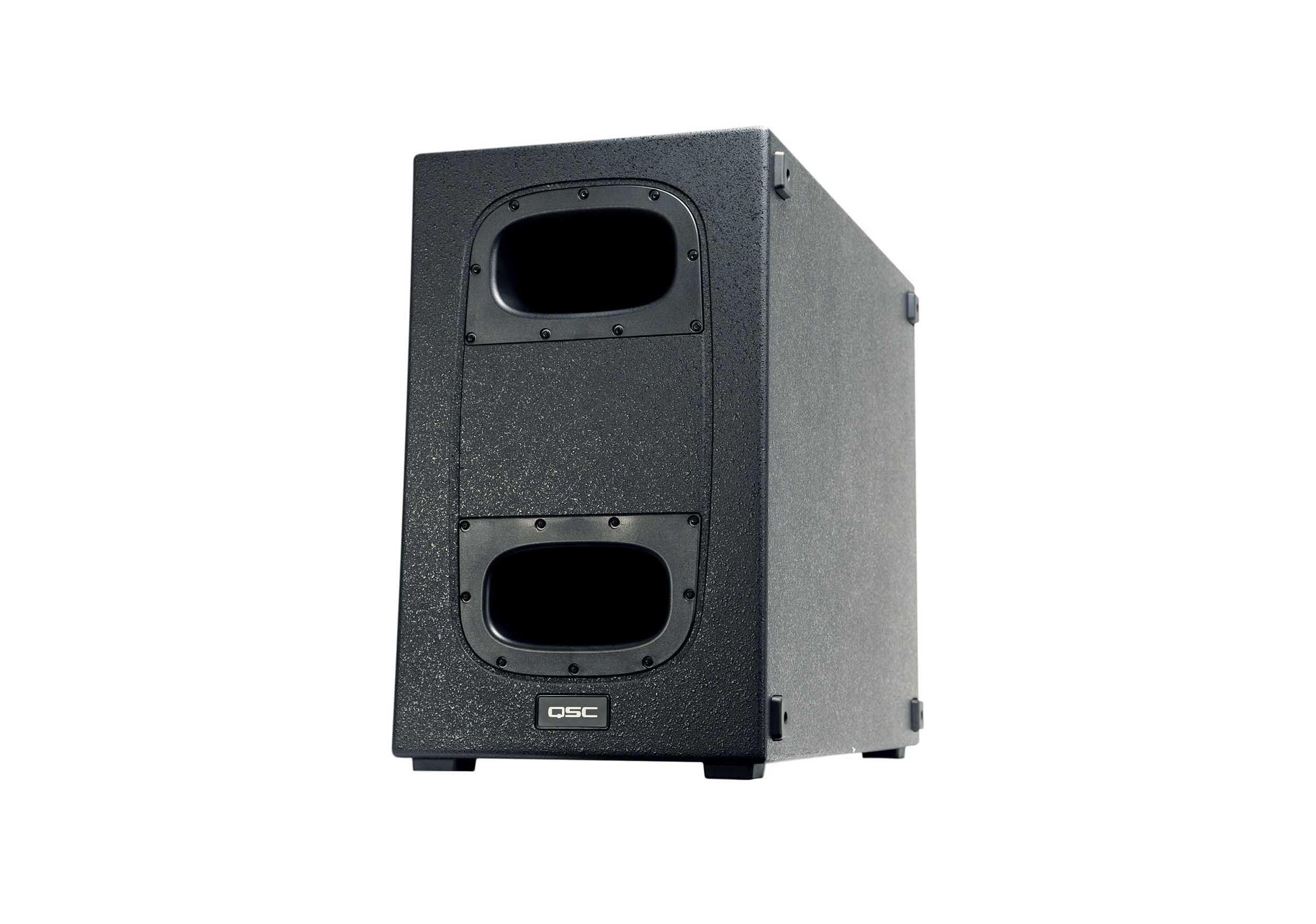

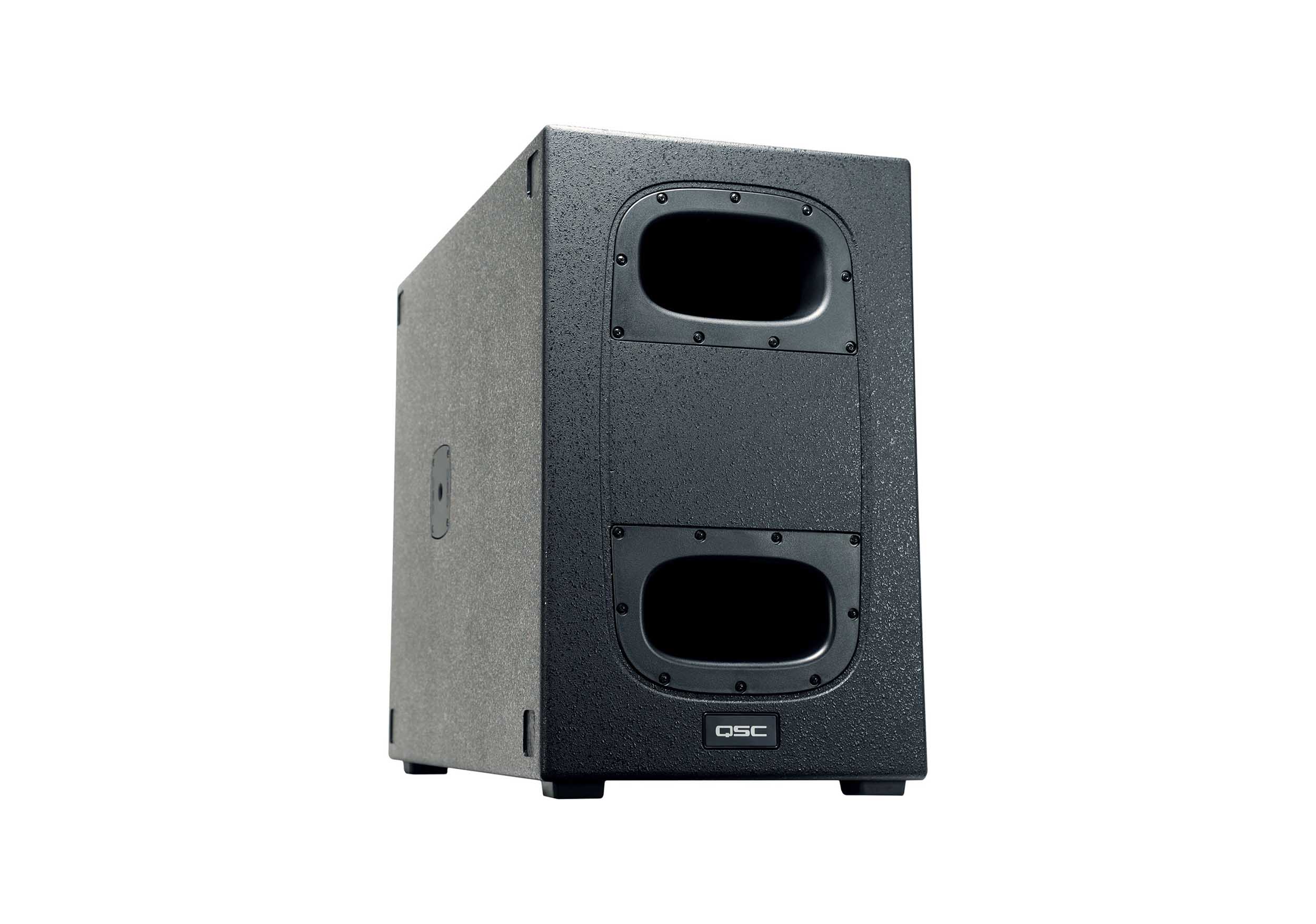

The QSC KS212C (KS212C, KS-212C, KS 212C) is a dual 12-inch cardioid powered subwoofer with 3600 watts of peak Class D power (2 x 1800 W) and 132 dB peak output, in a single cabinet that sends 15 dB less bass behind it than in front (rear rejection measured at 70 Hz). Mobile DJs, bands and AV crews use it to keep low end off the stage, out of open mics and away from neighbors, without building a multi-sub cardioid array.
Each 12-inch driver sits in its own 6th-order bandpass chamber, and the cardioid pattern is always on. The birch plywood cabinet rolls on four casters with cast aluminum handles, and two M20 sockets (top and side) take a 35 mm speaker pole with the sub vertical or horizontal. Inputs are two locking XLR/¼-inch combos with two XLR loop-thru outputs, and the DSP gives an 80 Hz or 100 Hz crossover, up to 100 ms of delay and 5 user scenes.
What does cardioid mean on the KS212C?
It means the sub is loudest in front and quietest behind. QSC rates the rear rejection at 15 dB at 70 Hz, which QSC compares to the difference between 30 watts and 1000 watts. Point the quiet side at the stage, the DJ booth or the neighbors, and you get less low-frequency rumble, less bass spill into open mics and less feedback.
Can the cardioid pattern be turned off?
No. The cardioid pattern is always active.
How is the KS212C different from the KS112 and KS118?
The KS212C is the only QSC KS sub that is cardioid in a single box. The KS112 is smaller and lighter, and the KS118 has an 18-inch driver for more output, but it is only cardioid with 2 or more units arrayed.
| KS212C | KS112 | KS118 | |
|---|---|---|---|
| Driver | 2 x 12-inch | 1 x 12-inch | 1 x 18-inch |
| Design | Dual 6th-order bandpass, cardioid | 6th-order bandpass | Direct radiating |
| Amplifier (peak) | 2 x 1800 W | 2000 W | 3600 W |
| Max SPL (peak) | 132 dB | 128 dB | 136 dB |
| Frequency response (-6 dB) | 44 Hz to 104 Hz | 41 Hz to 108 Hz | 41 Hz to 98 Hz |
| Coverage | Cardioid, 15 dB rear rejection at 70 Hz | Omnidirectional | Omni or cardioid (2 or more units) |
| Dimensions (H x W x D) | 24.5 x 15.5 x 33.5 in | 24.5 x 15.5 x 24.25 in | 25.2 x 20.5 x 30.9 in |
| Net weight | 88.5 lb | 62.6 lb | 104 lb |
Is a speaker pole included with the KS212C?
QSC's spec sheet and user manual list a 36-inch (915 mm) M20 speaker pole as included in the box. QSC's product page does not list it, so check the box contents when your sub arrives. The SP-36 and SP-26 are also sold on their own.
Which speakers can I pole-mount over a KS212C?
QSC's KS manual lists, with the sub standing vertical, the K8.2, CP8, K10.2 and CP12 as OK on the SP-16X, SP-26, SP-36 or SP-16X + SP-26, and the K12.2 as OK on the SP-16X or SP-26. With the sub lying horizontal, all of those tops are OK on the SP-16X, SP-26 and SP-36.
Disclaimer: Pole-mounted speakers can tip if bumped. Use only the pole and speaker combinations QSC lists, and follow the KS Series user manual.
Which crossover setting should I use?
Use 80 Hz with QSC K.2 Series and CP Series tops, and 100 Hz with KW, KLA and legacy K Series speakers. On a K.2 top choose 80 Hz KS in the SUB menu.
How should the KS212C be placed?
Keep it at least 20 inches (50 cm) from walls, the underside of a stage and other KS212C subs. QSC advises against packing cabinets together.
Can KS212C subwoofers be stacked or flown?
Stack them lying horizontal only, no more than two high. QSC rates two stacked units at 12.5 dB of rear attenuation. Do not stack them vertical, and do not fly or suspend them.
QSC KS212C specifications
| Configuration | Dual 6th-order bandpass cardioid subwoofer |
|---|---|
| LF transducers | 2 x 12-inch (305 mm) cone |
| Frequency response (-6 dB) | 44 Hz to 104 Hz |
| Frequency range (-10 dB) | 39 Hz to 118 Hz |
| Coverage | 180° cardioid, 15 dB rear rejection at 70 Hz |
| Maximum SPL | 132 dB peak at 1 m |
| Amplifier | Class D, 2 x 1800 W peak |
| Cooling | Low-noise variable speed fan |

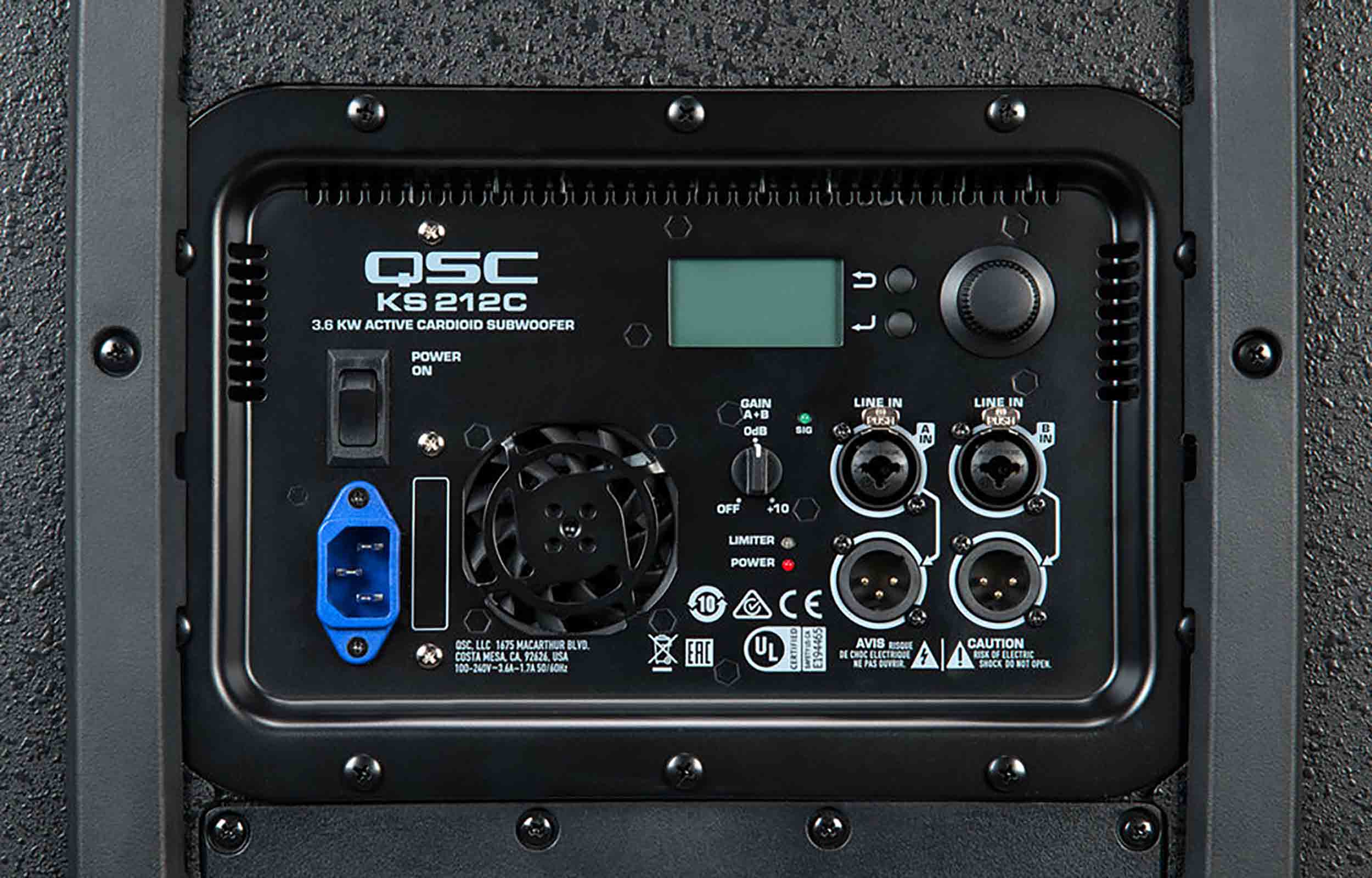

| Inputs | 2 x locking XLR/¼-inch combo |
| Outputs | 2 x XLR loop-thru |
| DSP | 80 Hz or 100 Hz crossover, delay 0 to 100 ms, 5 user scenes |
| Pole sockets | 2 x M20 threaded (top and side) for 35 mm poles |
| AC power | 100 to 240 VAC, 50 to 60 Hz, locking IEC |
| Enclosure | Birch plywood, internal woofer cover, cast aluminum handles |
| Color | Black (RAL 9011) |

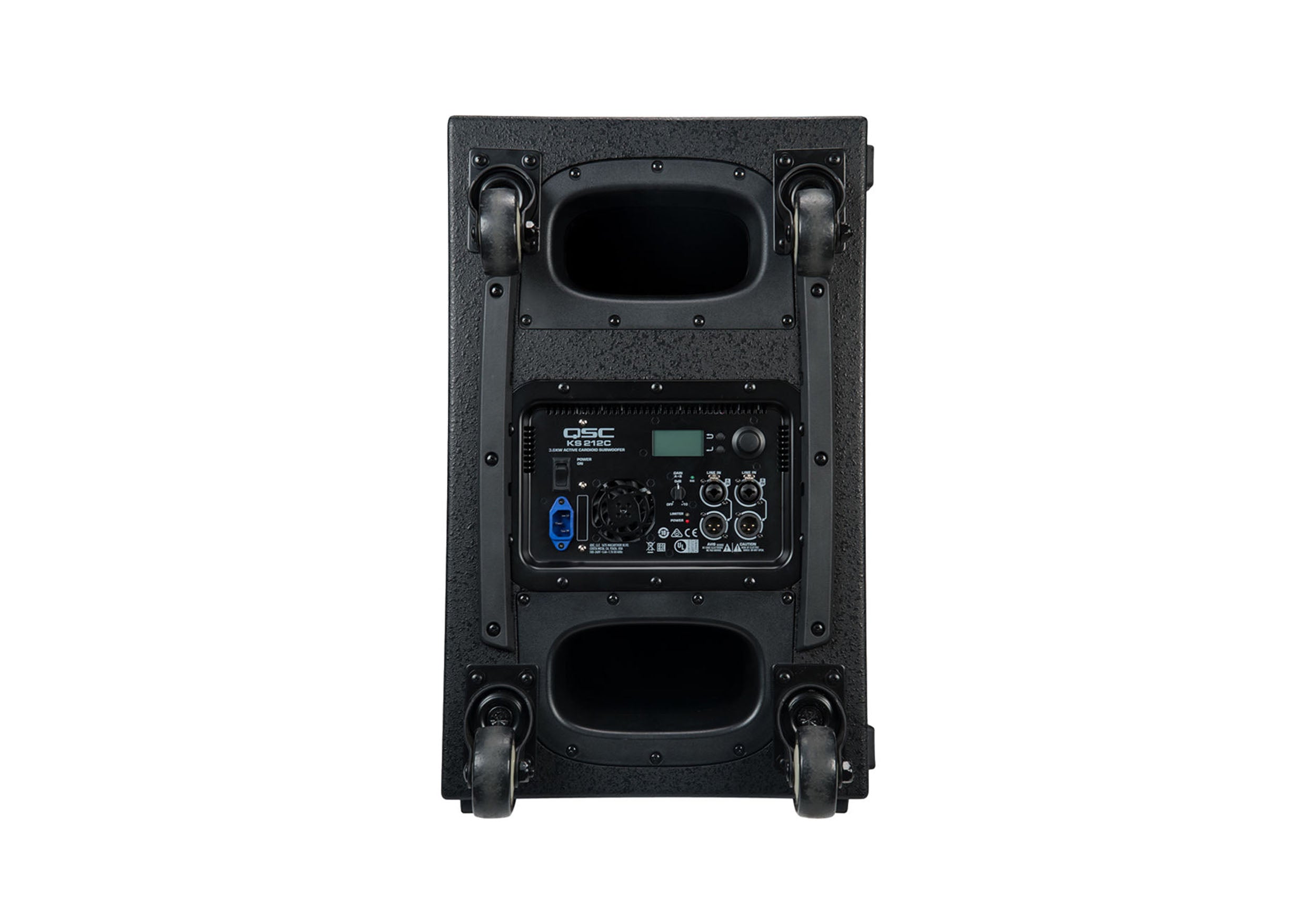

| Included | 4 low-noise heavy-duty casters; 36-inch speaker pole per QSC's spec sheet |
| Dimensions (H x W x D) | 24.5 x 15.5 x 33.5 in (622 x 394 x 851 mm) |
| Net weight | 88.5 lb (40.1 kg) |
| Shipping weight | 107 lb (48.5 kg) |
| Warranty | 3 years, plus 3 years with registration within 30 days (6-year warranty) |
Specifications from QSC's KS212C spec sheet, KS Series user manual and KS212C application guide.
What's in the box?
The KS212C subwoofer with casters fitted, locking AC power cord, 2 QSC logos, QSC limited warranty, quick start guide, safety sheet and, per QSC's spec sheet and manual, a 36-inch speaker pole.
What else goes with the KS212C?
Protect it with the KS212C-CVR padded cover or the KS-LOC lock-out cover, pair it with a K10.2 or K12.2, or browse QSC subwoofers, QSC speakers and all QSC gear.
