RCF HDL6-A, 1400W Dual 6" Active Line Array Module - Black

SKU H-RCF-HDL6A UPC 8024530014483 MPN HDL6-A

Price:
Sale price$1,799.00
Stock:
In stock (26 units), ready to be shipped

Sign in to see your rewards

Sign in
Earn 899500 points (worth $89.95)
Teryn Cooper | Sales Engineer

ASK AN EXPERT

Our Certified Gear Technician is ready to help!

(213) 816 4102

30-Day Price Protection Guarantee If we lower our price within 30 days of your order, we'll refund the difference. Shop now with confidence. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase. Use your points toward future gear purchases with us. Points expire 90 days after they're earned.

Hollywood DJ Expert Picks

Bundle Total: $1,799.00
RCF RPR60689 Rain Cover Set for KX & HDL & TT & SUB Series Protection

Call us for package deal pricing anytime 800-700-4542.

Description

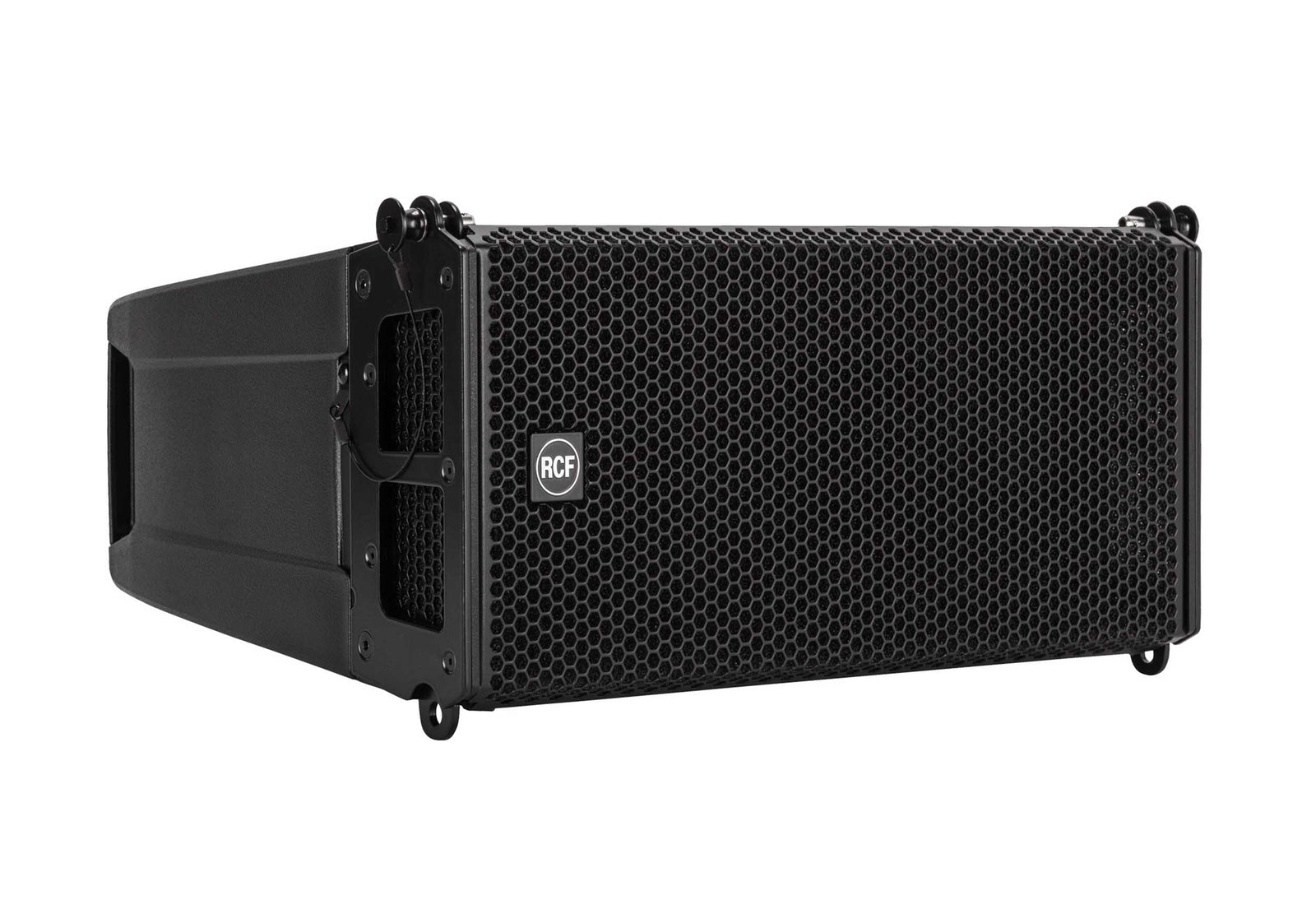

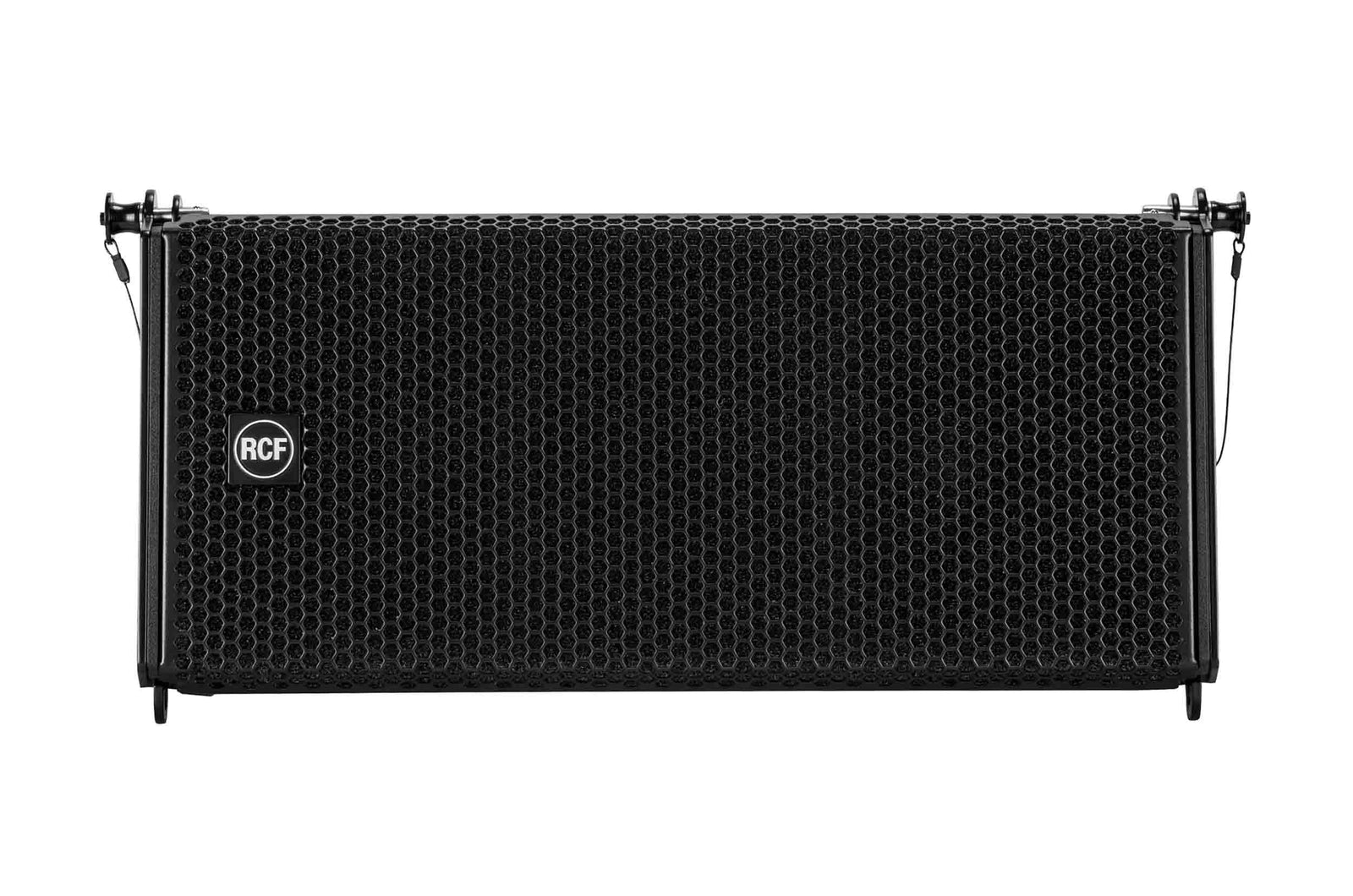

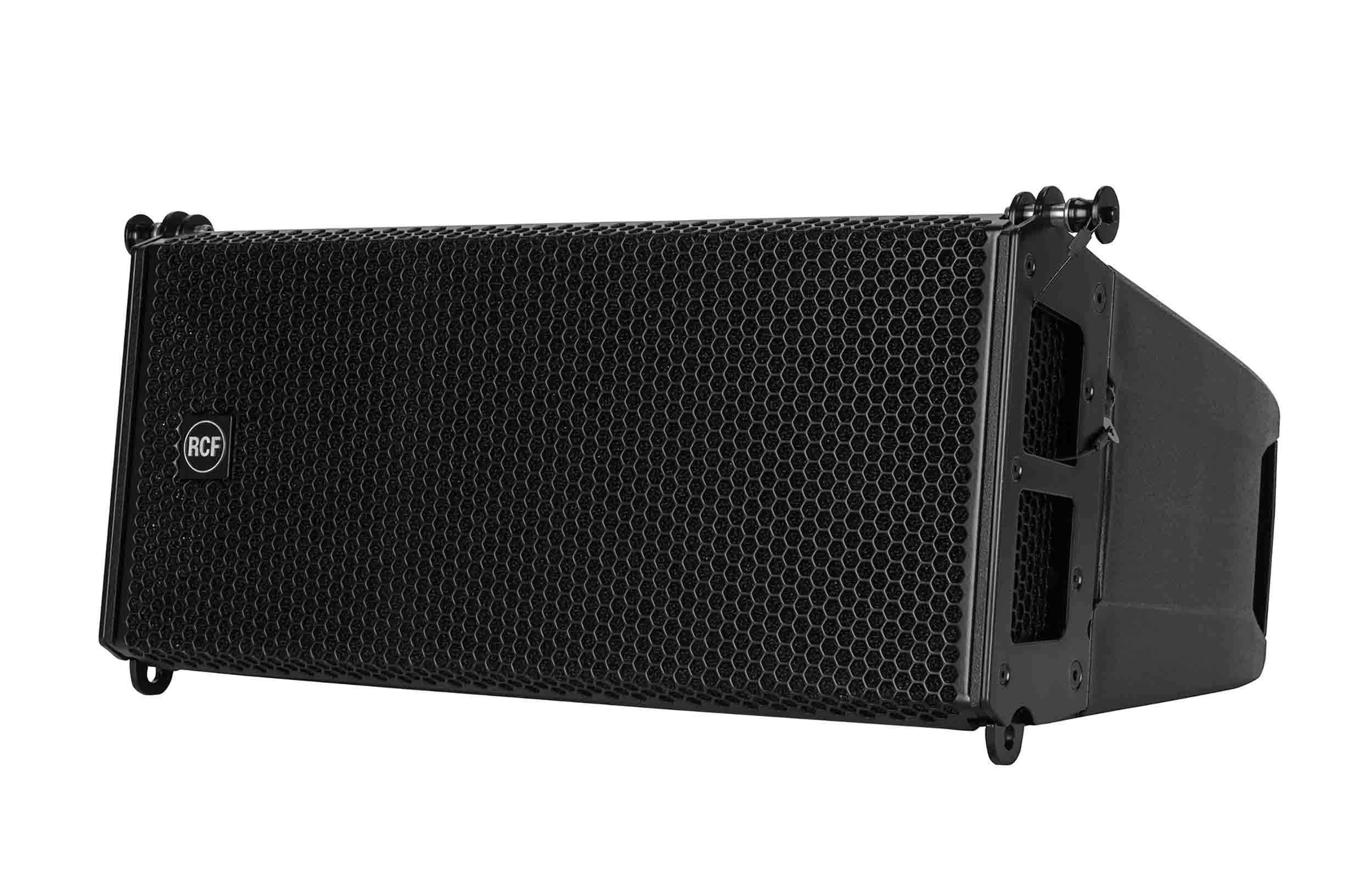

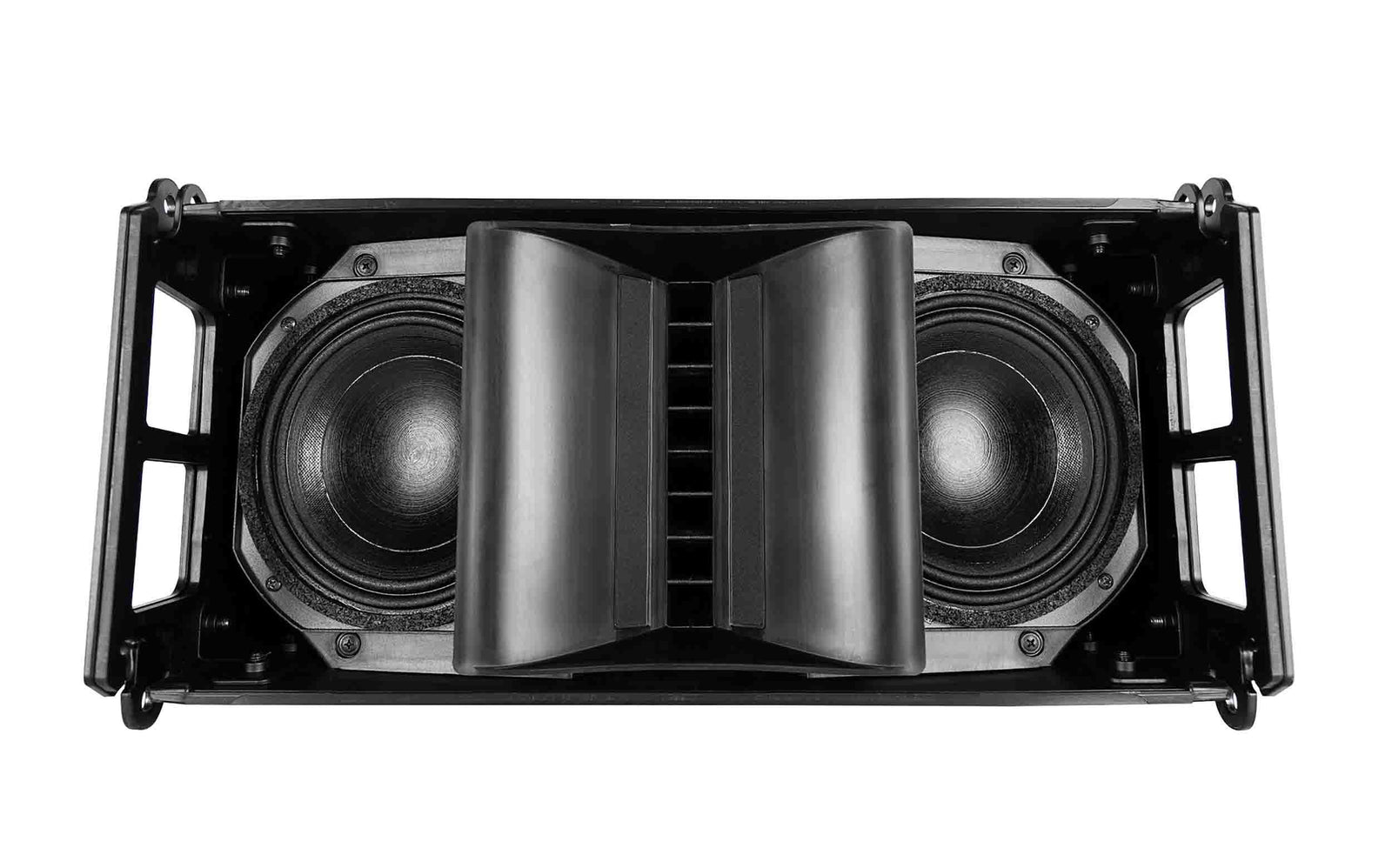

The RCF HDL 6-A (HDL6-A, HDL 6A) is a compact active line array module: two 6-inch neodymium woofers and a 1.75-inch voice coil compression driver on a 100° x 10° waveguide, powered by a built-in 1400 W peak (700 W RMS) Class-D amplifier with DSP. It reaches 131 dB max SPL, covers 65 Hz to 20 kHz and weighs 25.6 lb (11.6 kg). It is made for small to medium events indoors and outdoors: fly up to 16 from one fly bar, or put up to three on a pole.

Each module has its own amplifier, crossover and limiting, so there is no amp rack or external processor. Signal links module to module on XLR and power links on powerCON.

HDL 6-A, HDL 6-A W or Open Box: which should I buy?

Option What you get Best for
HDL 6-A (this page) One module in black Building or adding to a black array
HDL 6-A W The same module in white Churches, ballrooms and installs where a white finish fits better
Open Box HDL 6-A A black HDL 6-A sold as open box Adding a module to an existing hang
HDL 12-AS RCF's flyable 12-inch subwoofer for the HDL 6-A Adding low end to a flown or stacked system

How is the HDL 6-A different from the HDL 26-A, HDL 10-A and HDL 20-A?

The HDL 6-A is the smallest and lightest module in the RCF HDL range. The HDL 26-A uses the same size cabinet with a bigger driver, more power and RDNet control; the HDL 10-A and HDL 20-A step up to 8-inch and 10-inch woofers.

HDL 6-A HDL 26-A HDL 10-A HDL 20-A
Woofers 2 x 6-inch neo 2 x 6-inch neo 2 x 8-inch 2 x 10-inch
Compression driver voice coil 1.75-inch 3-inch 2.5-inch 3-inch
Amplifier 1400 W peak 2000 W peak 1400 W peak 1400 W peak
Max SPL 131 dB 133 dB 133 dB 135 dB
Low end 65 Hz 55 Hz 65 Hz 55 Hz
Coverage 100° x 10° 100° x 10° 100° x 15° 100° x 15°
Network control No RDNet No No
Weight 25.6 lb (11.6 kg) 29.8 lb (13.5 kg) 45 lb (20.4 kg) 66.6 lb (30.2 kg)

Pick the HDL 6-A for the lightest hang and the easiest one-person handling. Step up to the HDL 26-A for more output from the same size box, or to the HDL 10-A or HDL 20-A for bigger rooms and deeper low end.

How many HDL 6-A modules can I fly?

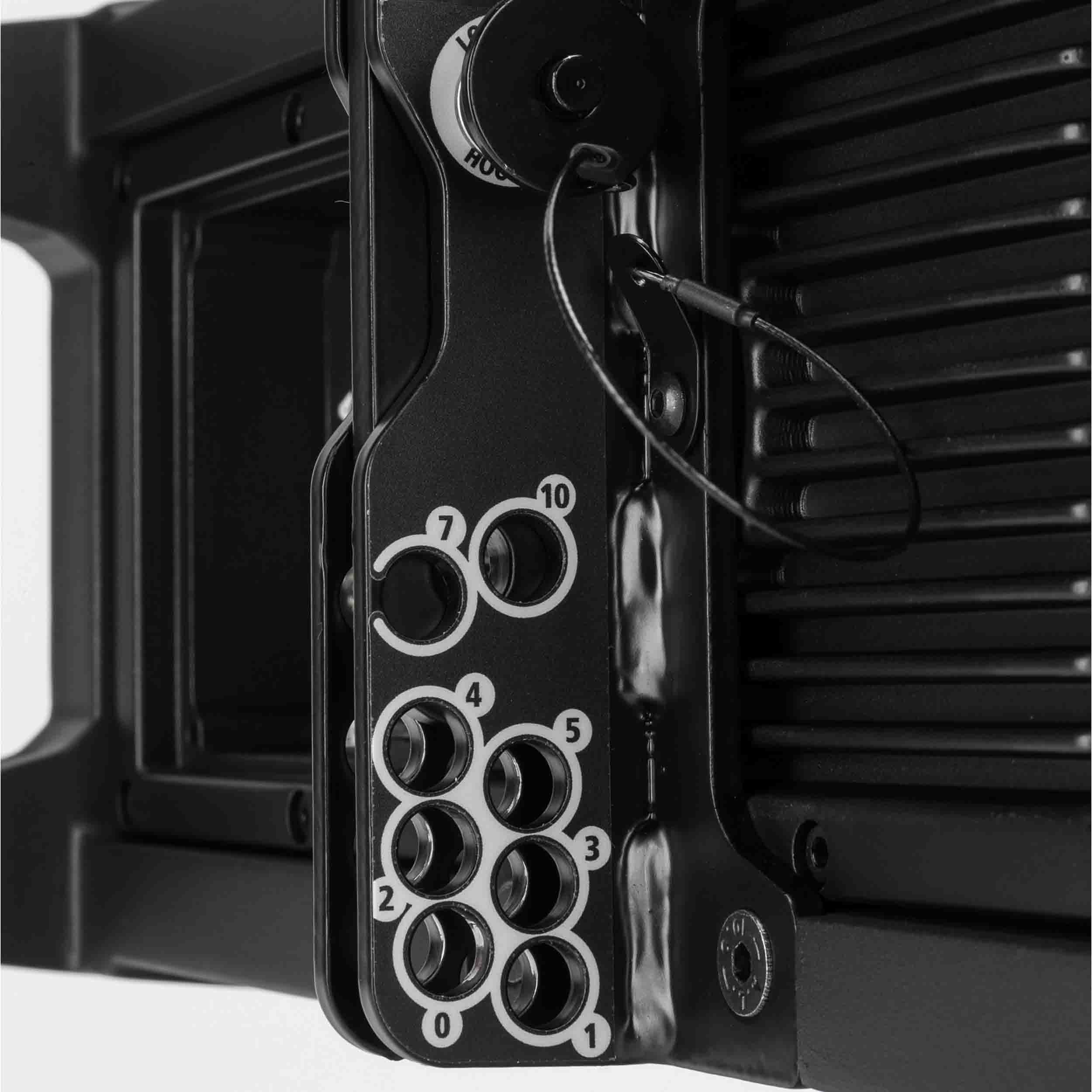

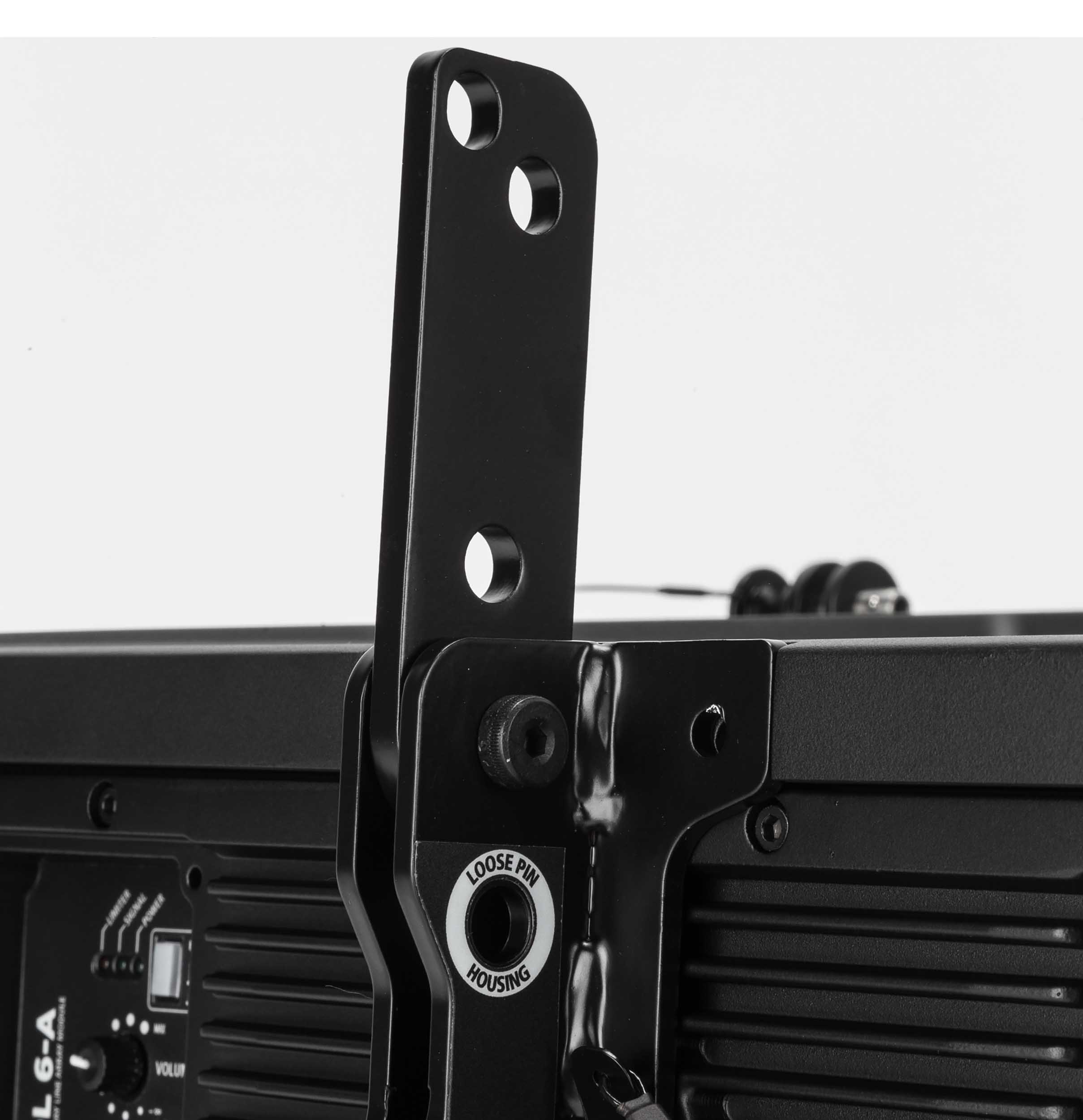

Up to 16 from one RCF FB-HDL6 fly bar, or 4 HDL 12-AS subwoofers plus 8 HDL 6-A in one hang. RCF says to check every hang in its Easy Shape Designer software, which gives the splay angle for each cabinet, the fly bar tilt and the safety factor. Add the fly bar pickup when you hang from two motors.

Can I put the HDL 6-A on a speaker pole?

Yes, up to three modules. The AC-POLEMOUNT-HDL6 bracket has a pole cup that fits a standard speaker pole. RCF also makes a truss clamp for hanging from truss.

How many can I link on one power circuit?

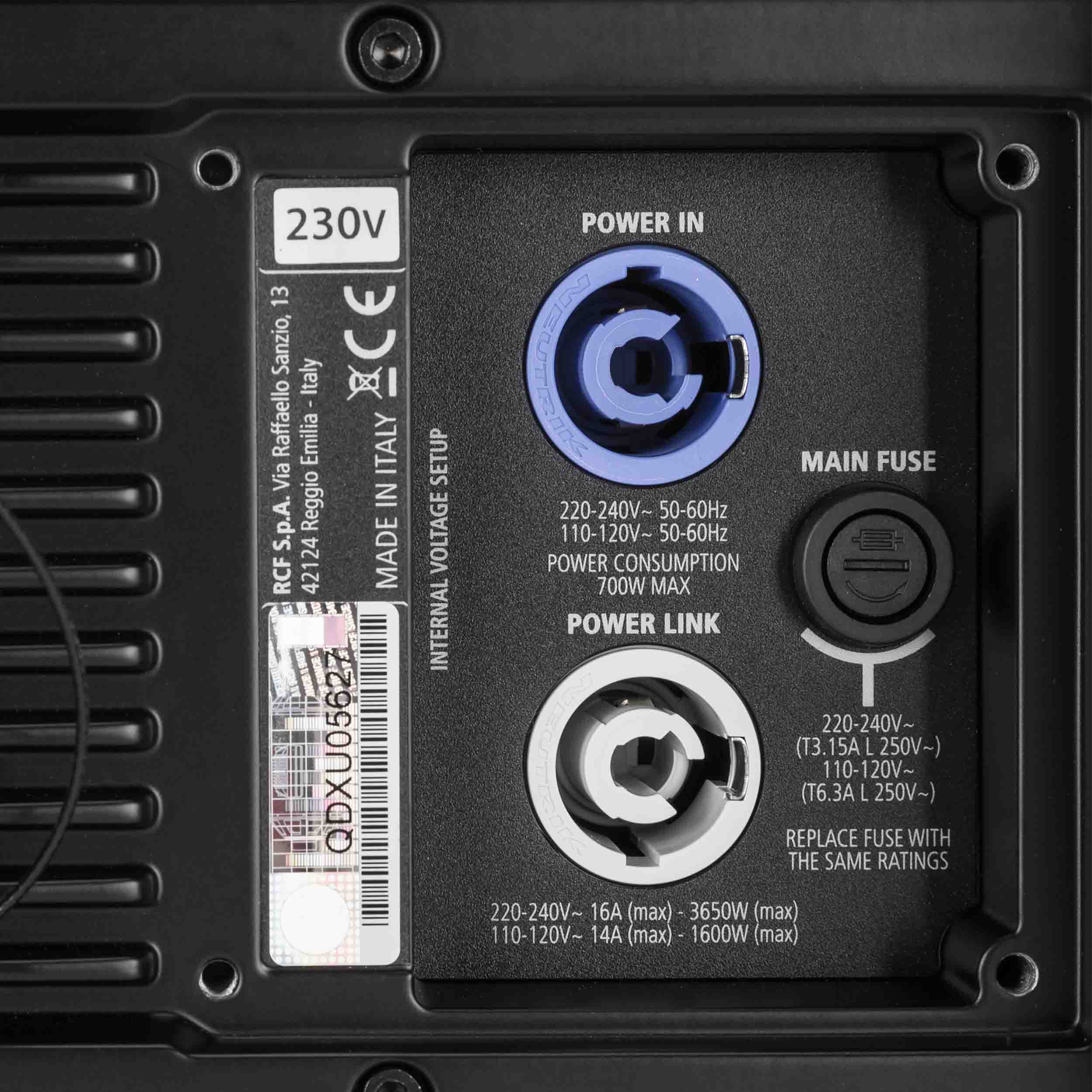

Three modules on 115 V. Each HDL 6-A has a powerCON output to daisy-chain power, and RCF limits a chain to 3 modules total at 115 V (6 at 230 V); more than that exceeds the powerCON rating.

Which subwoofer goes with the HDL 6-A?

The RCF HDL 12-AS, a compact flyable 12-inch subwoofer with its own 1400 W amplifier and an adjustable crossover. It flies from the same fly bar, and RCF's link bars join HDL 12-AS subs to HDL 6-A modules in one hang.

Do I need an amplifier or processor?

No. The HDL 6-A is fully powered. A 2-channel Class-D amplifier and a 48 kHz, 32-bit floating point DSP are built in, handling the crossover, phase correction, limiting and protection. An HF correction control on the rear panel adjusts the highs.

Can I use it outdoors?

Yes, for temporary outdoor events with the RCF AC-RAIN-1XHDL6 rain cover over the amplifier module. The cabinet is wood-reinforced polypropylene composite with a steel grille and two aluminum rear handles.

HDL 6-A specifications

Type Active 2-way line array module
Woofers 2 x 6-inch neodymium, 2-inch voice coil
Compression driver 1-inch exit neodymium, 1.75-inch voice coil
Amplifier Class-D, 1400 W peak (700 W RMS) total
Low frequencies 1000 W peak (500 W RMS)
High frequencies 400 W peak (200 W RMS)
Frequency response 65 Hz to 20 kHz
Max SPL 131 dB at 1 m
Coverage 100° horizontal x 10° vertical
Crossover 900 Hz
Processing 48 kHz, 32-bit floating point DSP, FiRPHASE, soft limiter

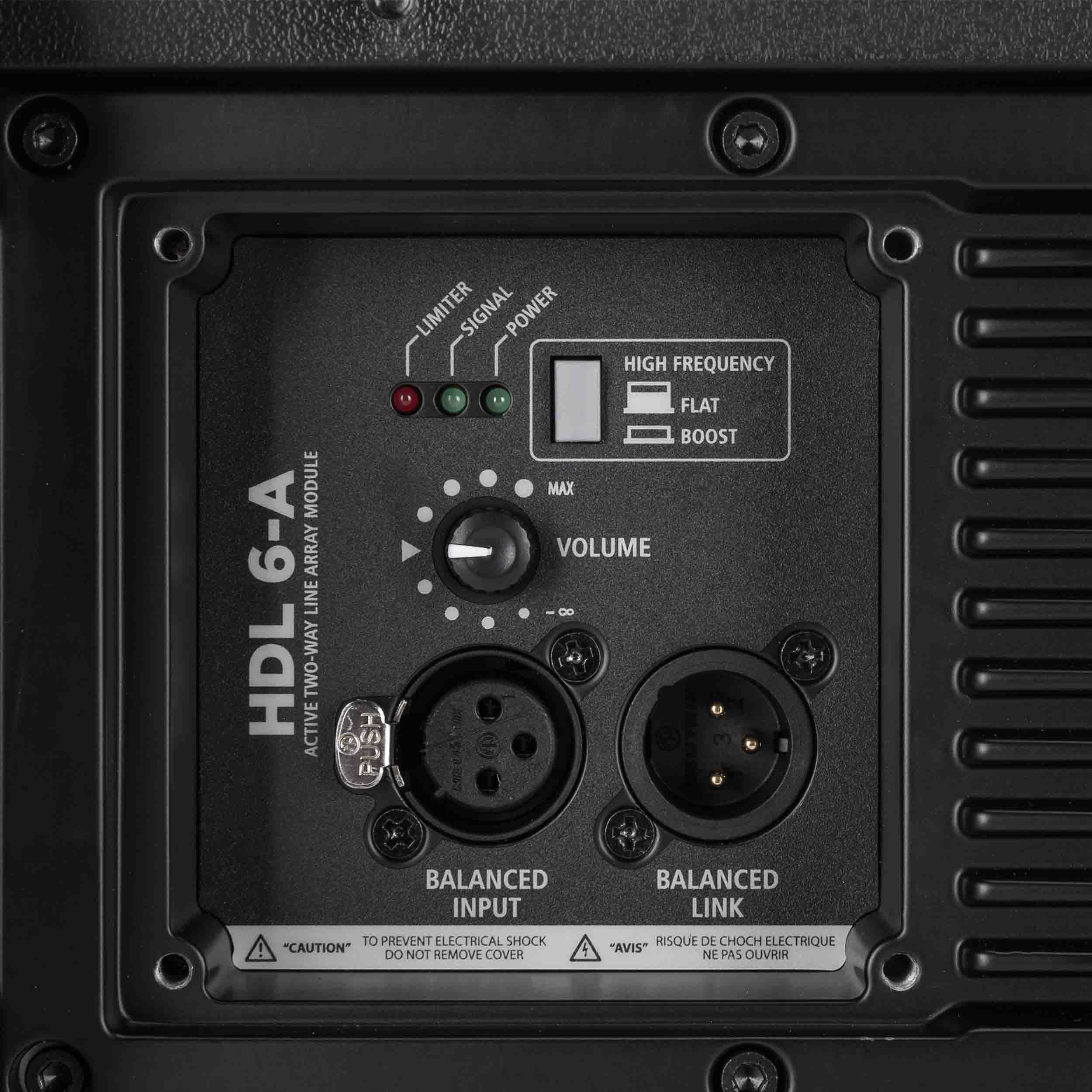

Controls HF correction

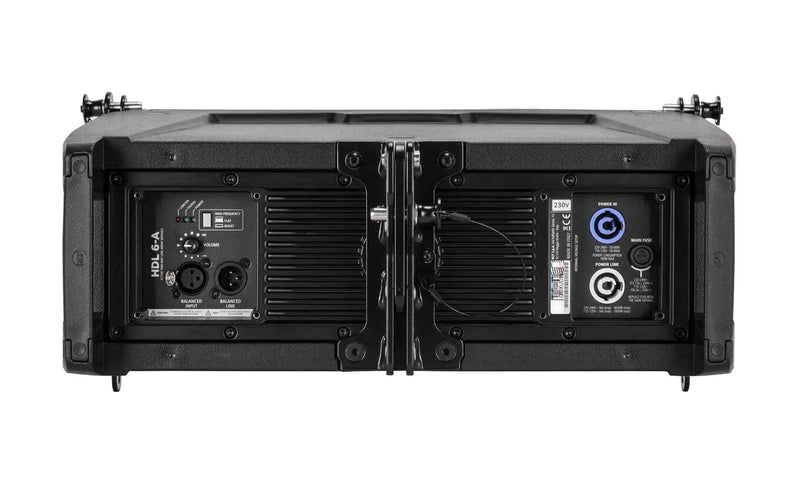

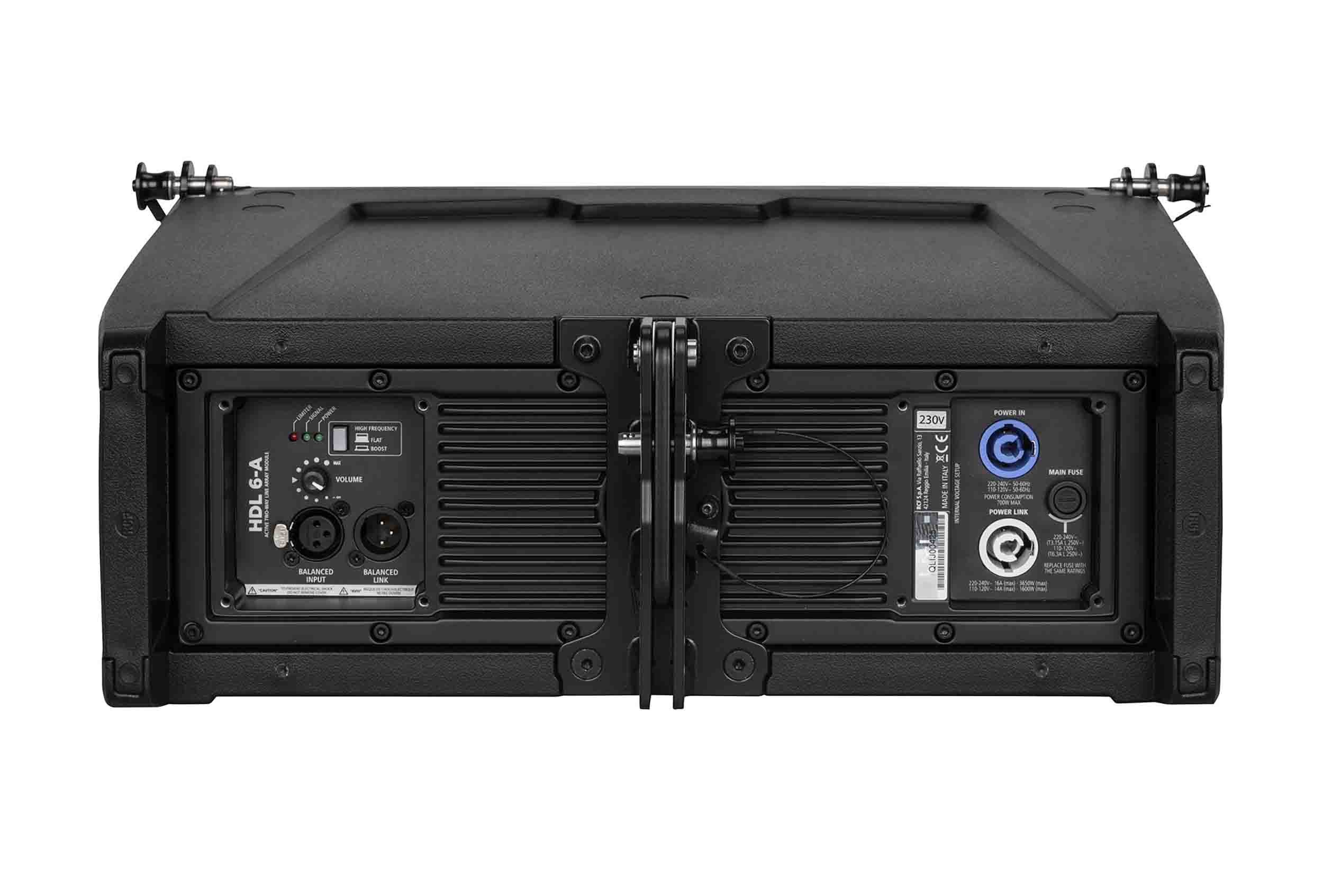

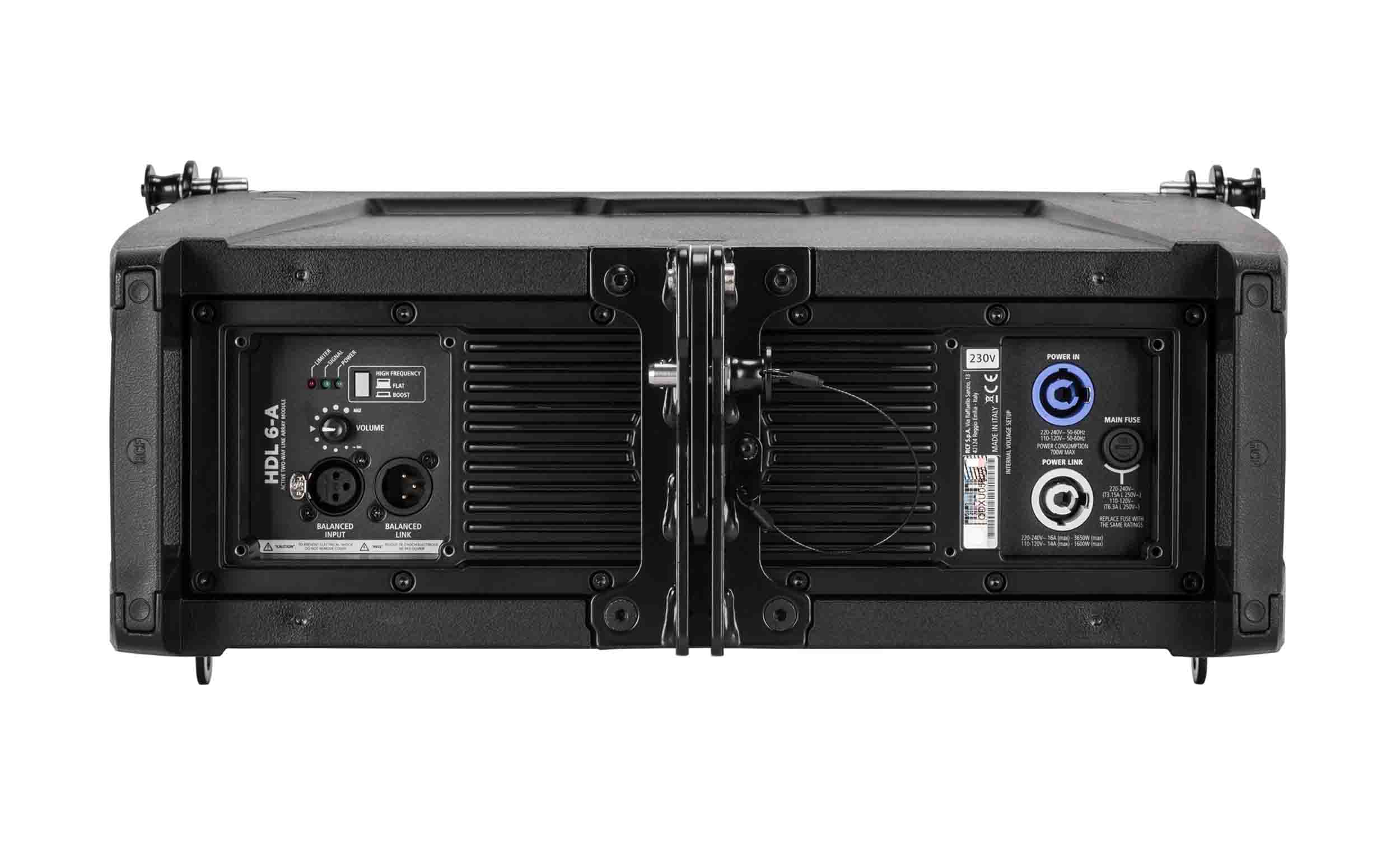

Input and output XLR in, XLR link out, balanced or unbalanced
Input sensitivity +4 dBu
Power powerCON in and out
Protections Thermal, RMS
Cooling Convection (no fan)

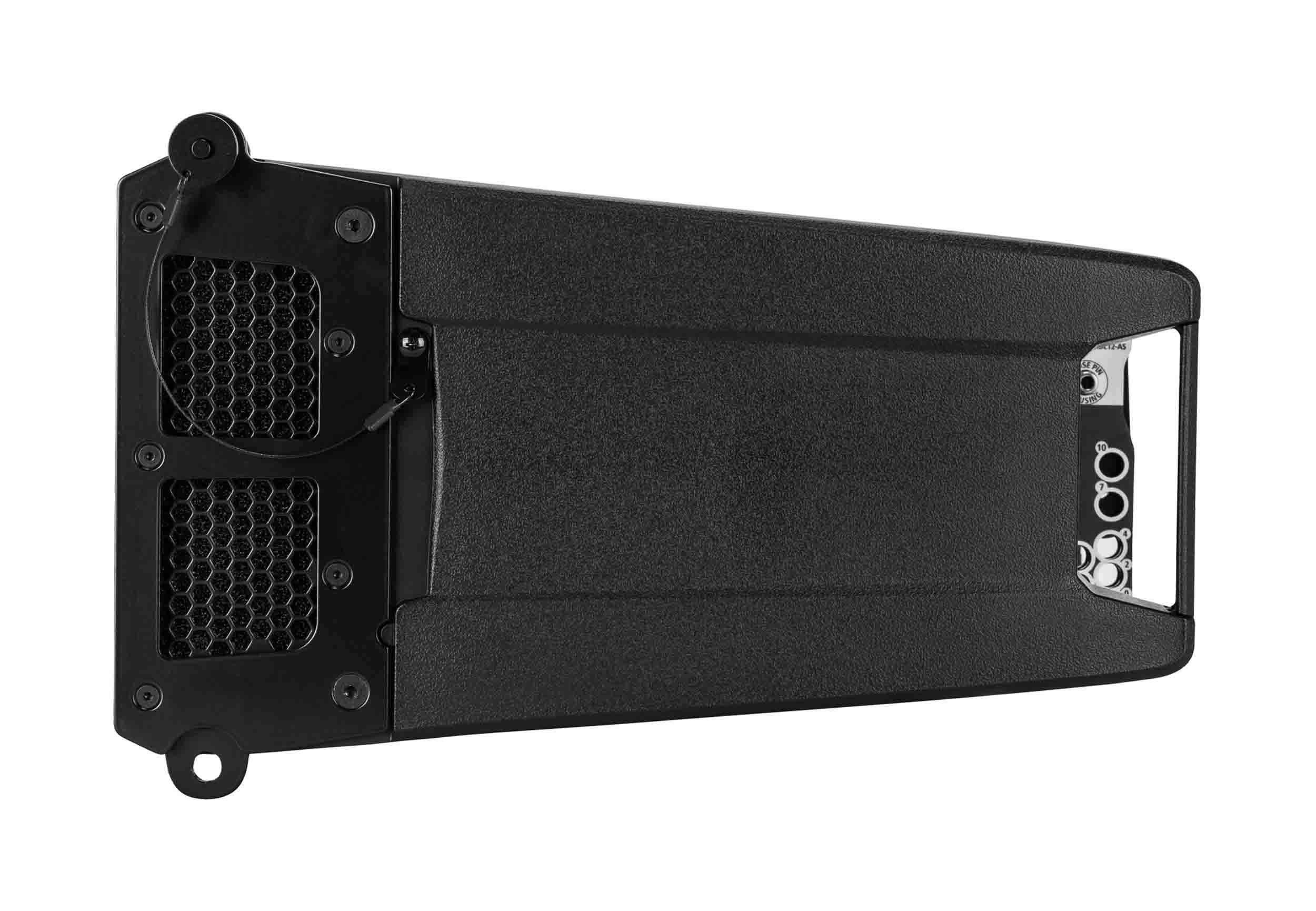

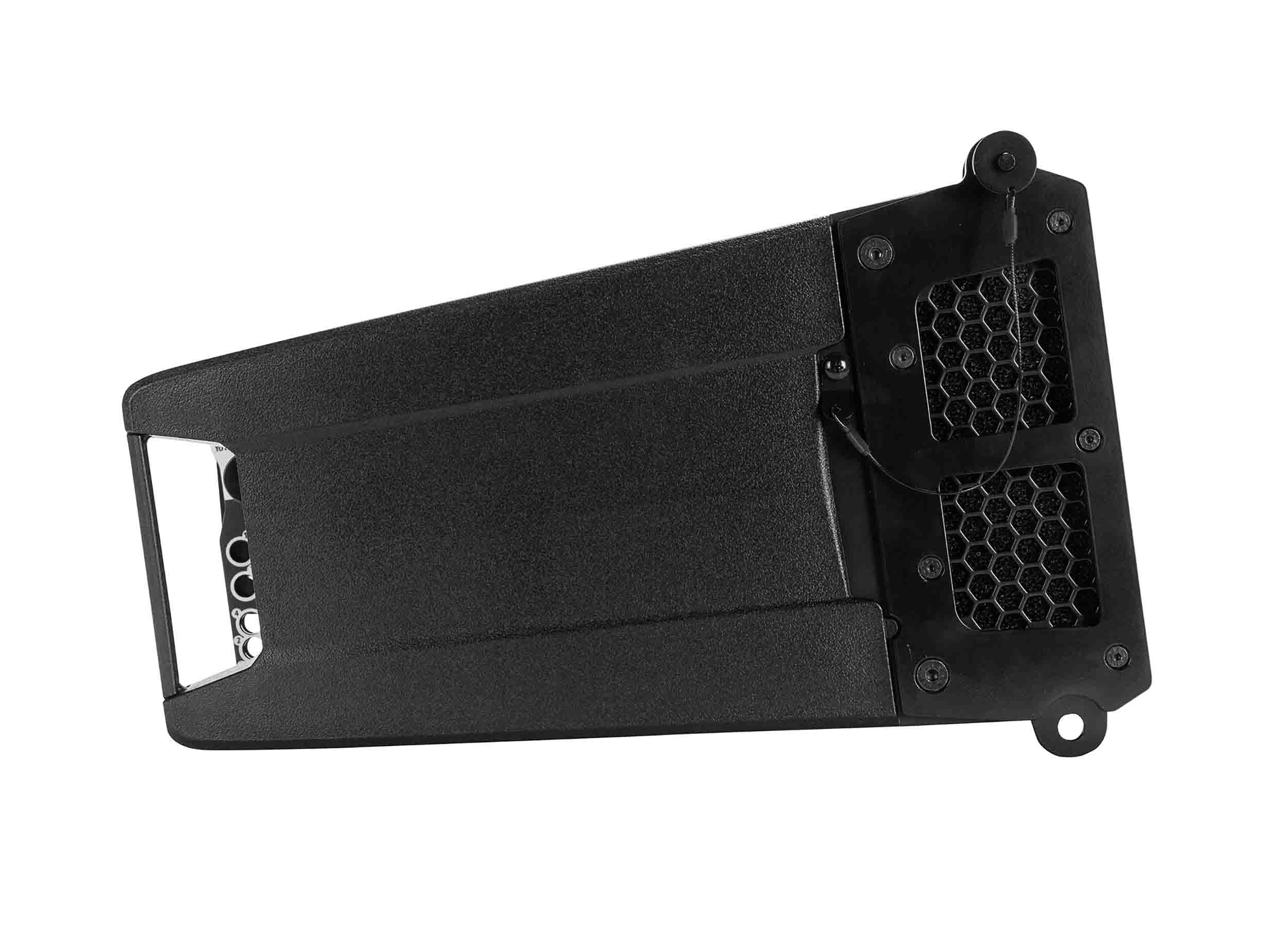

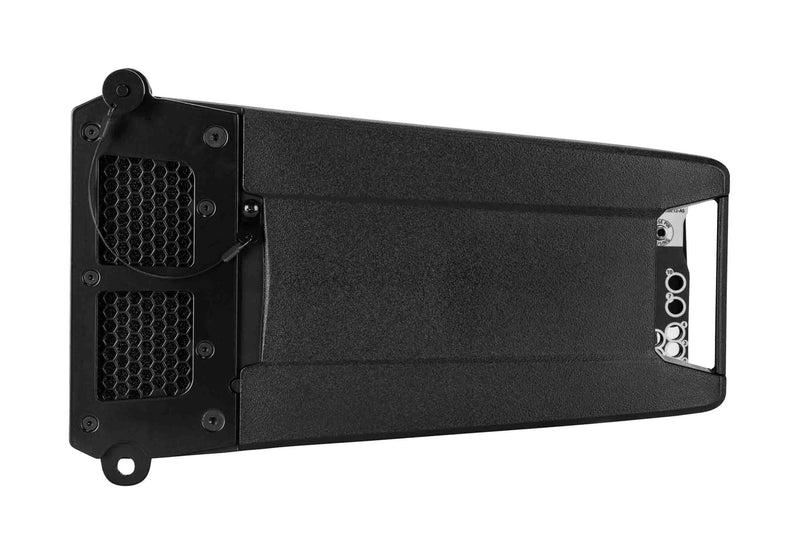

Cabinet Wood-reinforced polypropylene composite, steel grille, array fittings, 2 rear handles
Dimensions (H x W x D) 9.33 x 18.5 x 14.84 in (237 x 470 x 377 mm)
Weight 25.6 lb (11.6 kg)
Shipping weight 28.7 lb (13 kg)
Colors Black (HDL 6-A), white (HDL 6-A W)

Specifications from the RCF HDL 6-A product page and user manual.

What rigging and accessories fit the HDL 6-A?

Compare it with every RCF module in RCF HDL line array systems, see every brand in line array speakers, or browse everything from RCF.
