Description

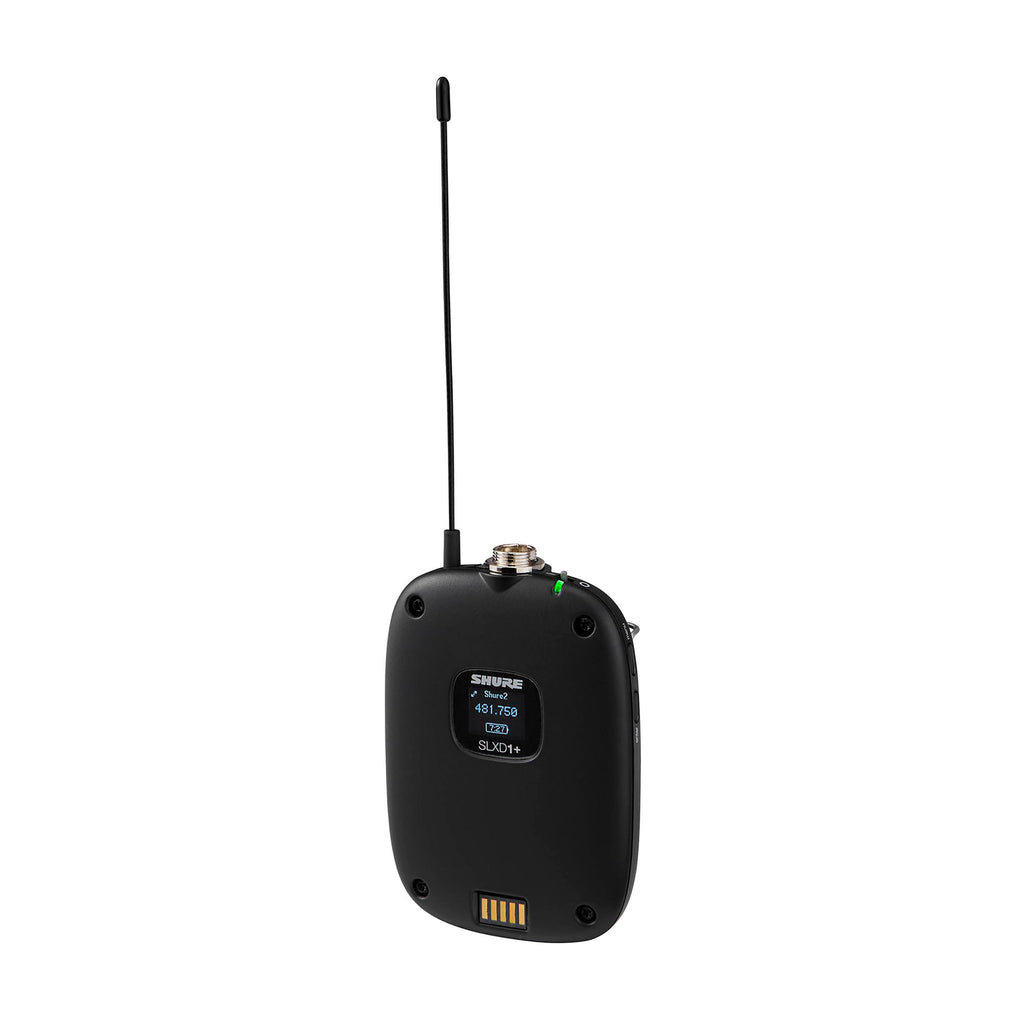

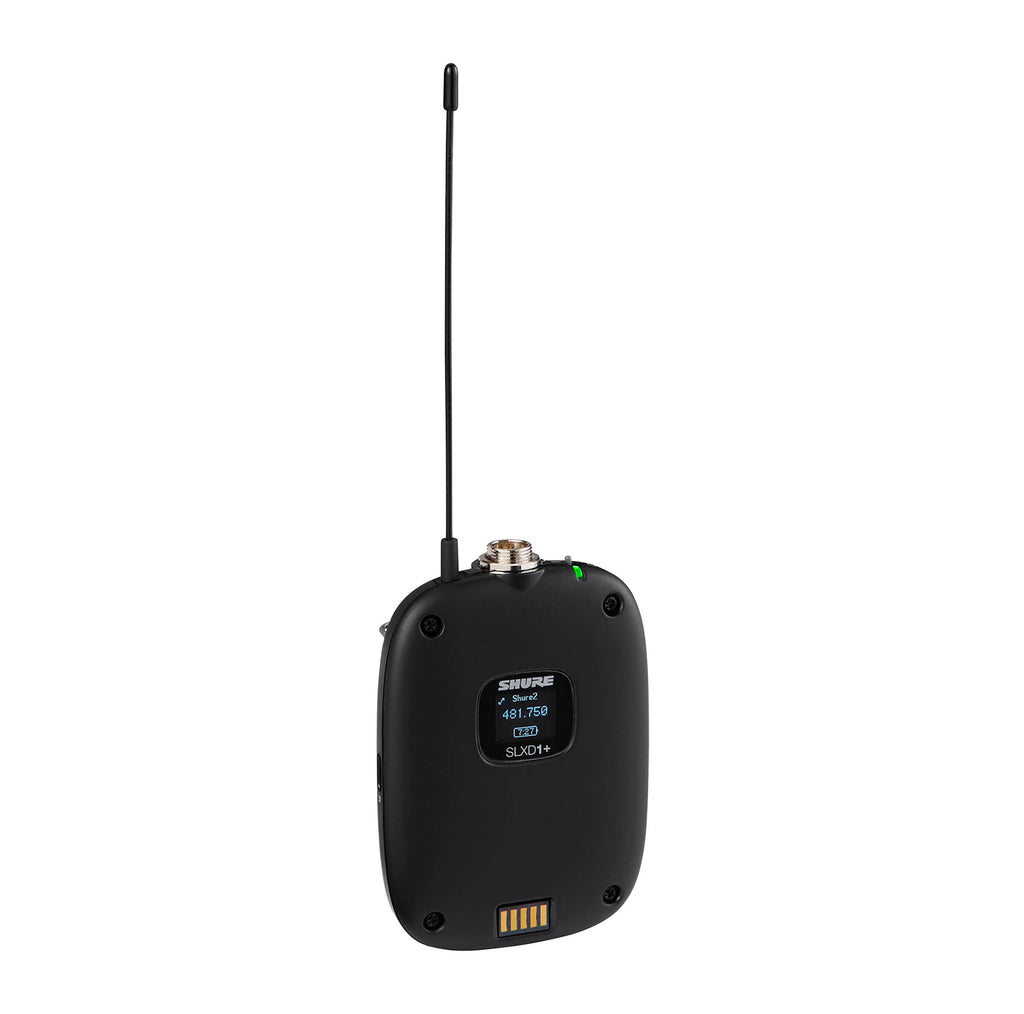

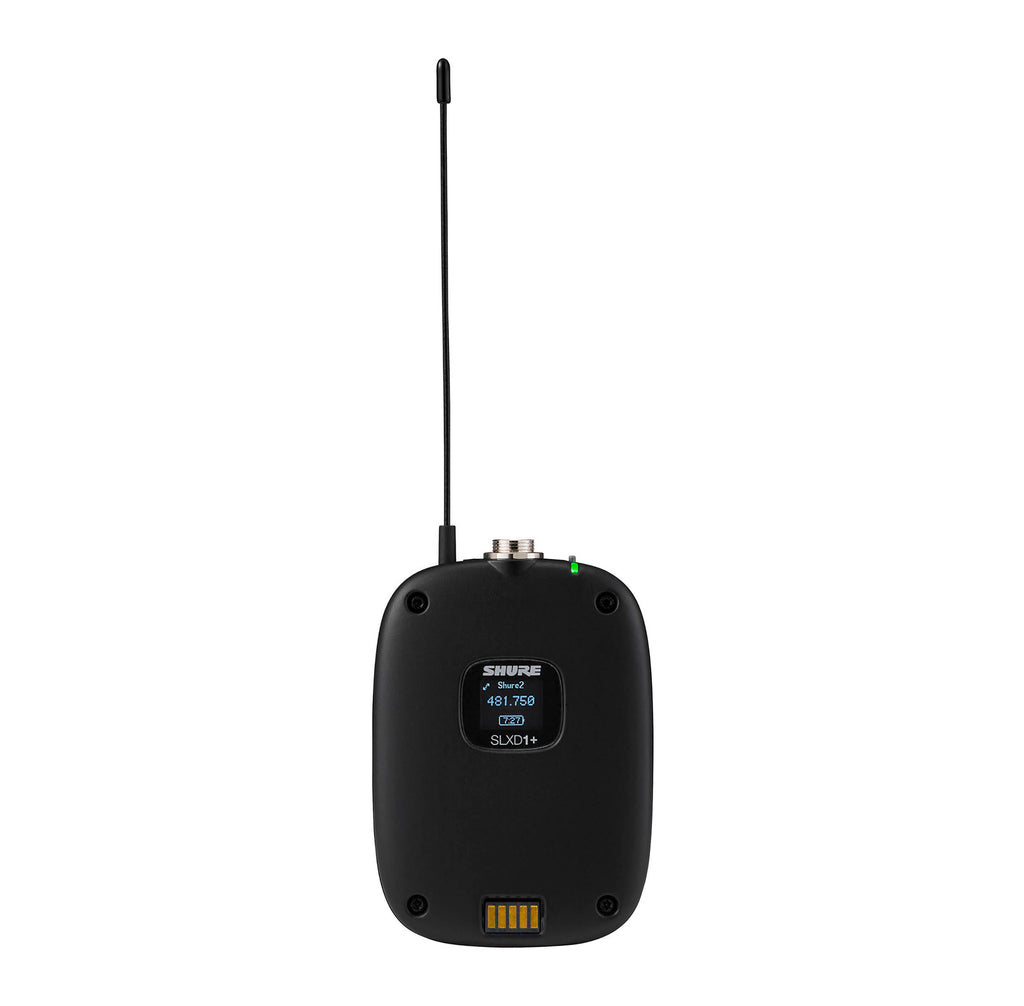

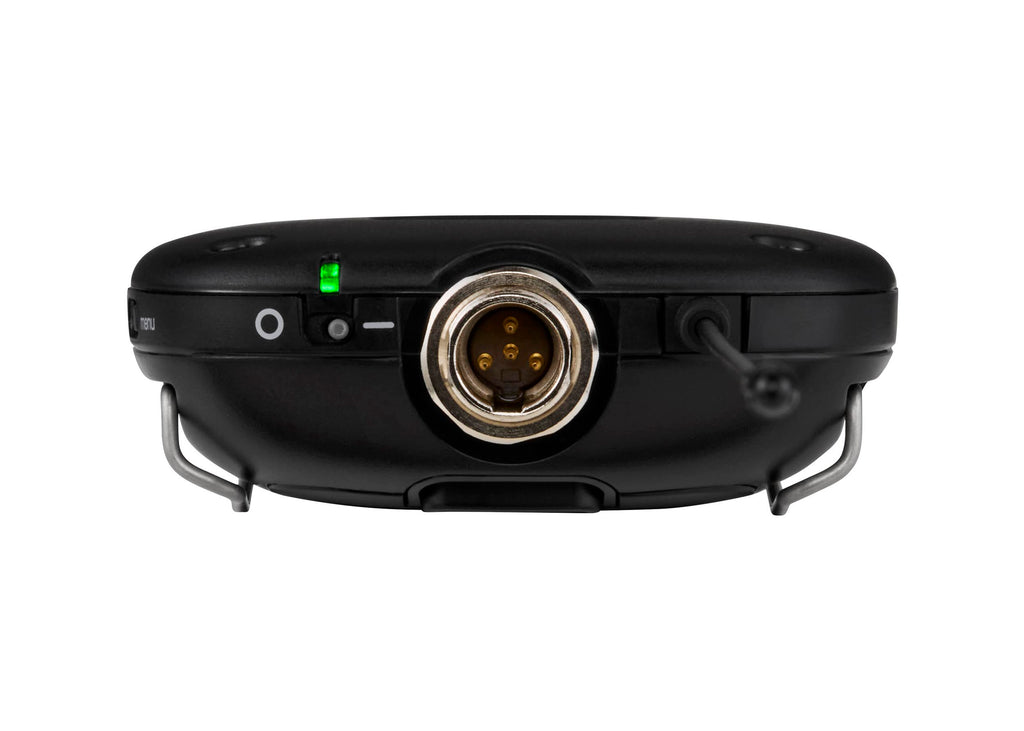

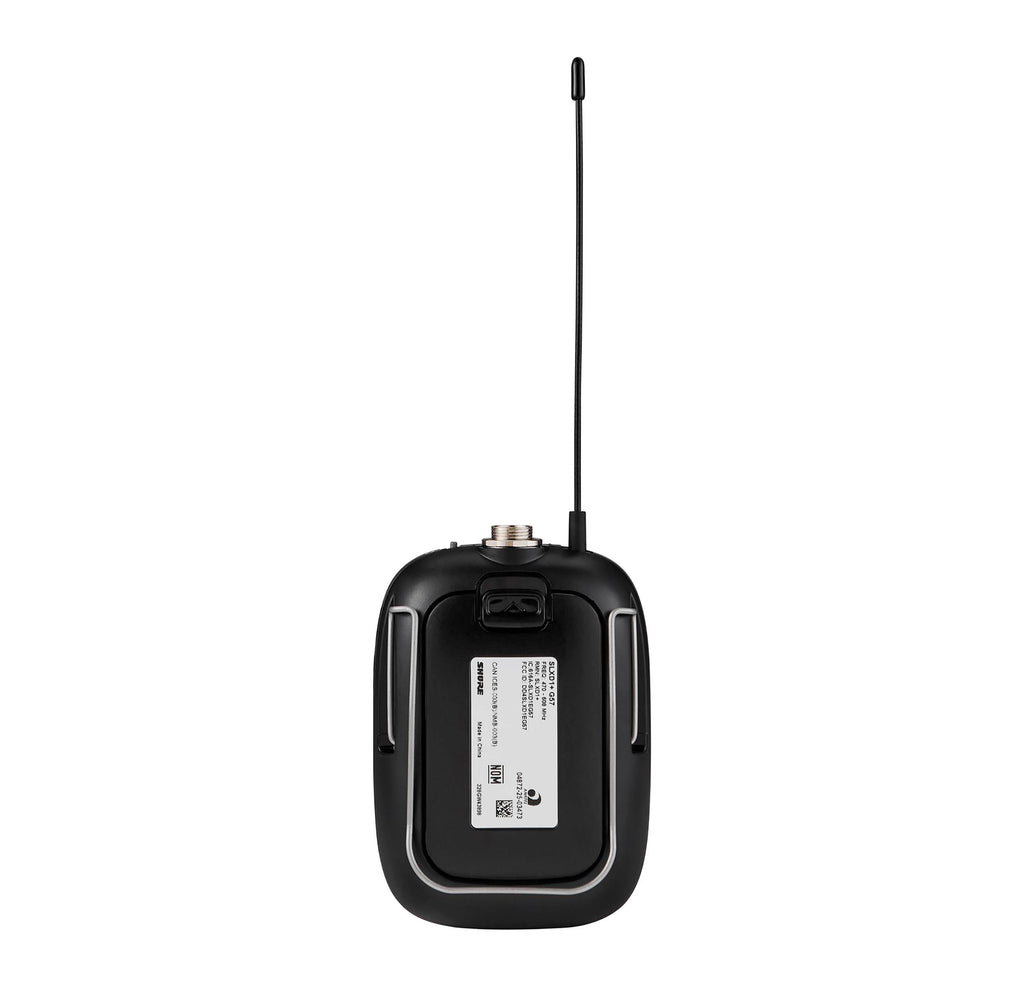

The Shure SLXD1+TA Digital Wireless Bodypack Transmitter (TAA Compliant) - G57: 470 to 608 MHz built for live sound, broadcast, and presentation use. It features a compact, lightweight ABS chassis with an integrated belt clip for comfortable and discreet wear. The locking TA4M connector allows compatibility with a wide range of lavalier, headset, and instrument microphones, as well as guitar and bass cables. A clear front-panel LCD displays key system information such as battery life, RF signal strength, and frequency.
High-Quality Audio and RF Performance
This transmitter delivers transparent 24-bit digital audio with over 118 dB of dynamic range, ensuring clean and accurate sound reproduction. With an expanded tuning range of up to 138 MHz (depending on region), it simplifies frequency coordination and supports scalable setups. The system can handle up to 11 simultaneous channels in a 6 MHz band and up to 14 in an 8 MHz band, making it ideal for complex multi-channel environments.
Advanced Control and Power Flexibility

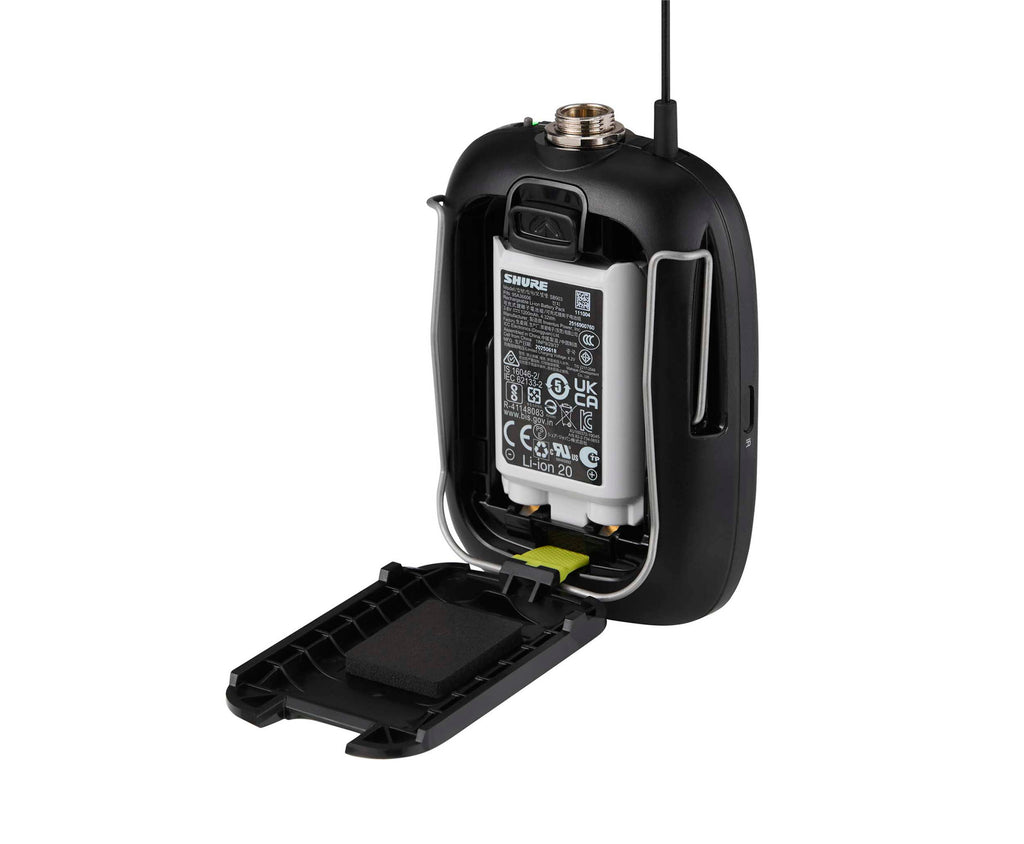

The SLXD1+ includes ShowLink Ease technology, enabling real-time two-way communication with compatible receivers via BLE. This allows automatic synchronization when frequencies change or devices power cycle. It also integrates with Wireless Workbench software and mobile apps for centralized monitoring and control. For power, it runs up to 8 hours on two AA batteries or can use the optional SB903 rechargeable battery, which provides accurate runtime tracking when paired with compatible charging accessories.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible:Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphone:
Microphone Type: No Microphone Included
Power:
Transmitter Battery Type: 2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: ABS
Dimensions: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm
Weight: 0.5 lbs
Shipping Weight: 1 lbs
Shipping Dimensions: 10 x 8 x 3 inches
