Description
The Shure SLXD5+TA Digital Camera-Mount Wireless Receiver - TAA Compliant (G57: 470 to 608 MHz) is engineered for on-camera mounting and audio-bag workflows in broadcast, filmmaking, and field production. Its lightweight design with cold-shoe compatibility makes it ideal for mobile recording setups. Dual 3.5mm outputs—including a headphone monitor and switchable mic/line output—ensure easy integration with cameras, recorders, and mixers without additional accessories.
Crystal-Clear 24-Bit Digital Audio with Wideband RF Performance
Delivering transparent 24-bit digital audio with over 118 dB of dynamic range, the SLXD5+ ensures precise and professional sound capture. Its wide 138 MHz tuning range allows reliable performance across various locations while simplifying frequency coordination. Designed for demanding RF environments, it supports multiple simultaneous systems, making it perfect for scalable wireless audio setups.
Smart Wireless Control with ShowLink Ease Technology
Equipped with ShowLink Ease, the SLXD5+ enables real-time, two-way communication with compatible transmitters. This allows automatic synchronization, remote frequency adjustments, gain control, and interference management without direct access to the transmitter. Multi-Mic Mode enhances workflow efficiency by enabling quick scanning, syncing, and monitoring of multiple audio sources from a single receiver.
Advanced Monitoring, Mobile Control, and Secure Operation
The SLXD5+ integrates with the Shure Wireless Workbench Mobile app for convenient system control via Bluetooth, including RF monitoring and frequency scanning. Built-in Digital Feedback Reduction (DFR) improves clarity by automatically suppressing feedback in challenging environments. For secure transmission, AES-256 encryption is included, while flexible power options—up to 5.5 hours on AA batteries or rechargeable SB903—ensure reliable operation in the field.
Product Specification:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:
Receiver Type: 1x Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: 2x Removable 1/4 Wave Flexible Whip
Number of Audio Channels: 1

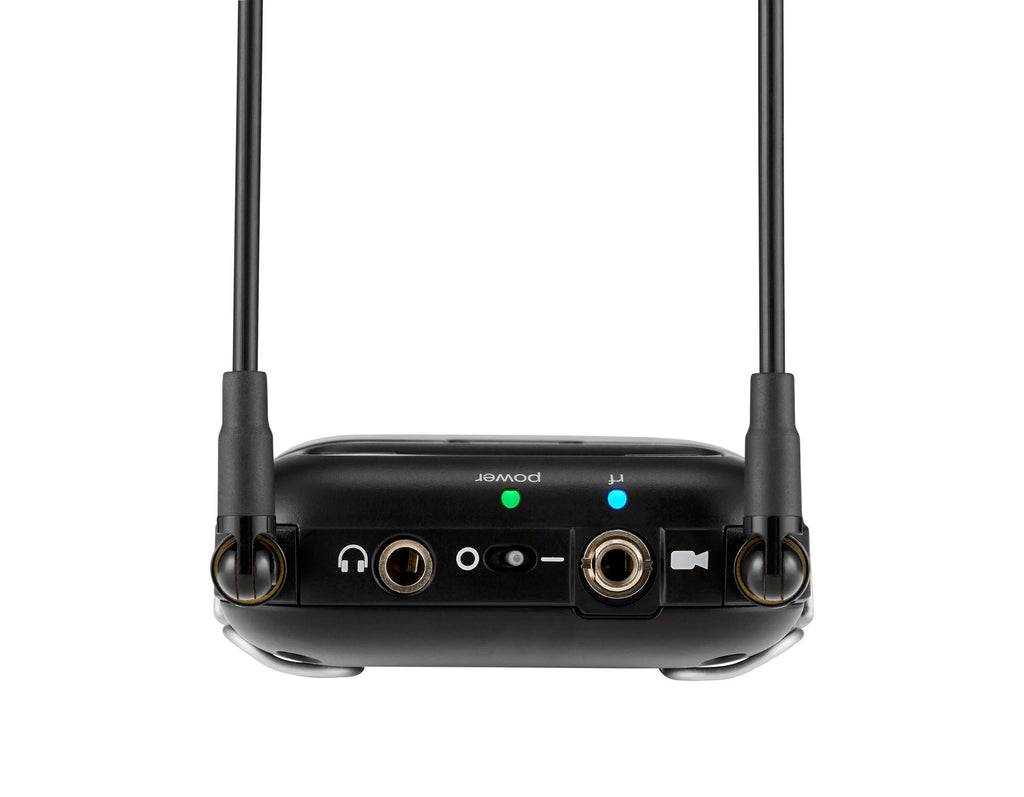

Audio I/O:
1x 1/8"" / 3.5 mm TRS Balanced Mic/Line Output
1x 1/8"" / 3.5 mm TRS Headphone Output
Slot-Mount I/O Adapters: No
Network I/O: No
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: Battery
Power:

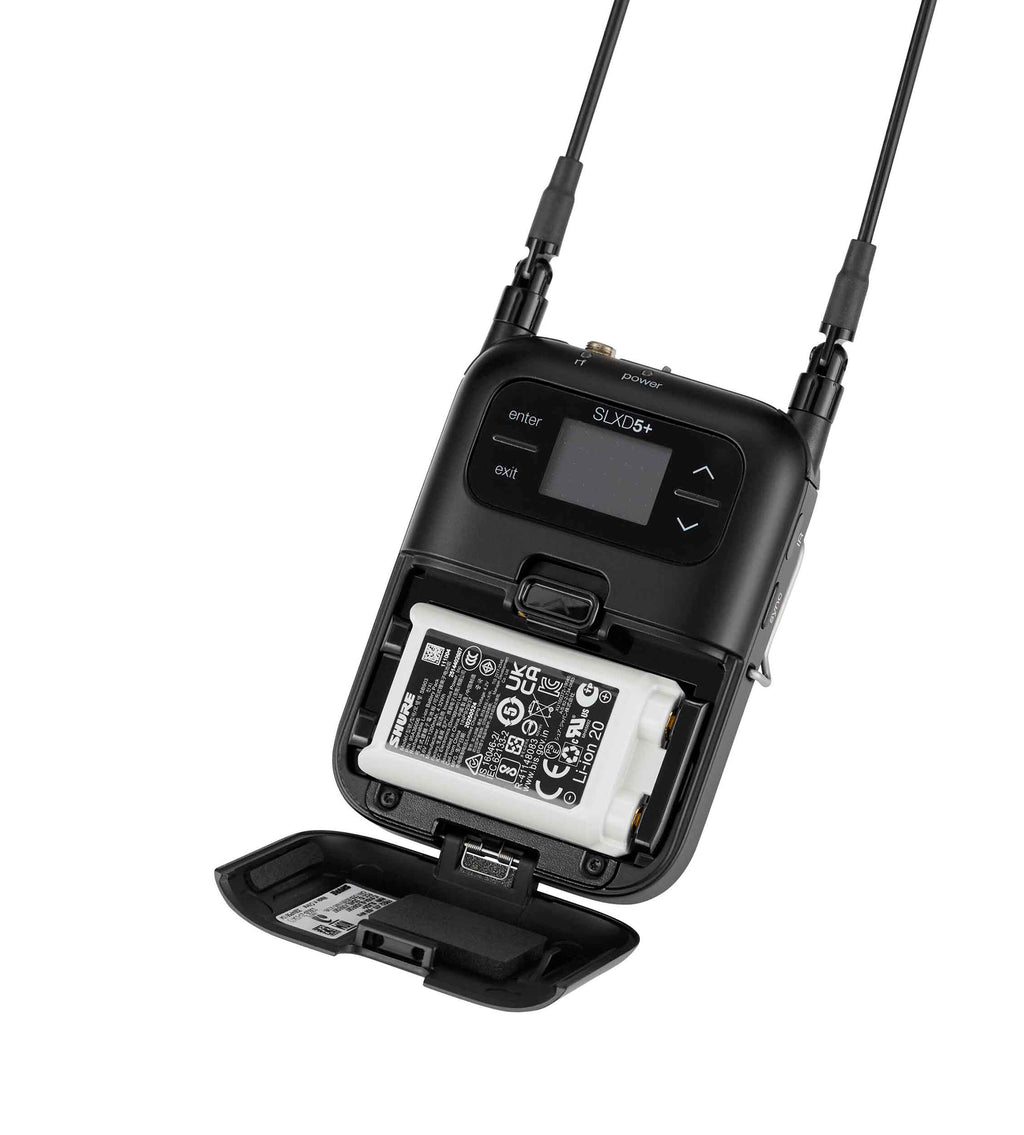

Receiver Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Receiver Battery Life: 5.5 Hours
Included Charging Case: No
AC/DC Power Adapter: No
Physical:
Environmental Resistance: No
Housing: Aluminum
Dimensions: 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
Weight: 6.4 oz / 182 g
Shipping Weight: 1.5 lbs.
Shipping Dimensions (LxWxH): 11.1 x 6 x 3"
