Shure SLXD15+ /85M Portable Wireless System - G57 (470-608 MHz)

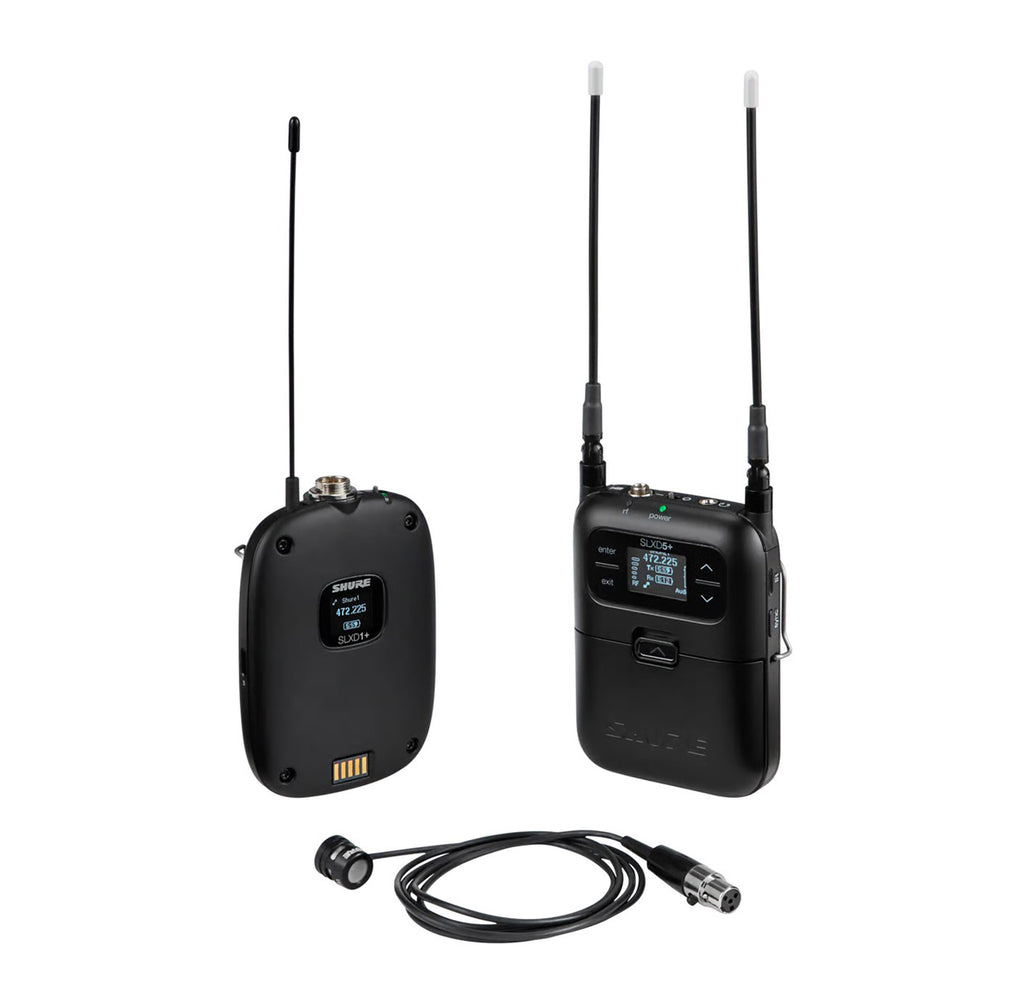

The Shure SLXD15+ /85M-G57 portable bodypack wireless system features the SLXD5+ Portable Receiver and the SLXD1+ bodypack transmitter and the low-profile WL185m cardioid lavalier microphone for videographers, ENG and field production, film and location sound applications. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Lightweight Bodypack Transmitter with WL185m Cardioid Lavalier Mic

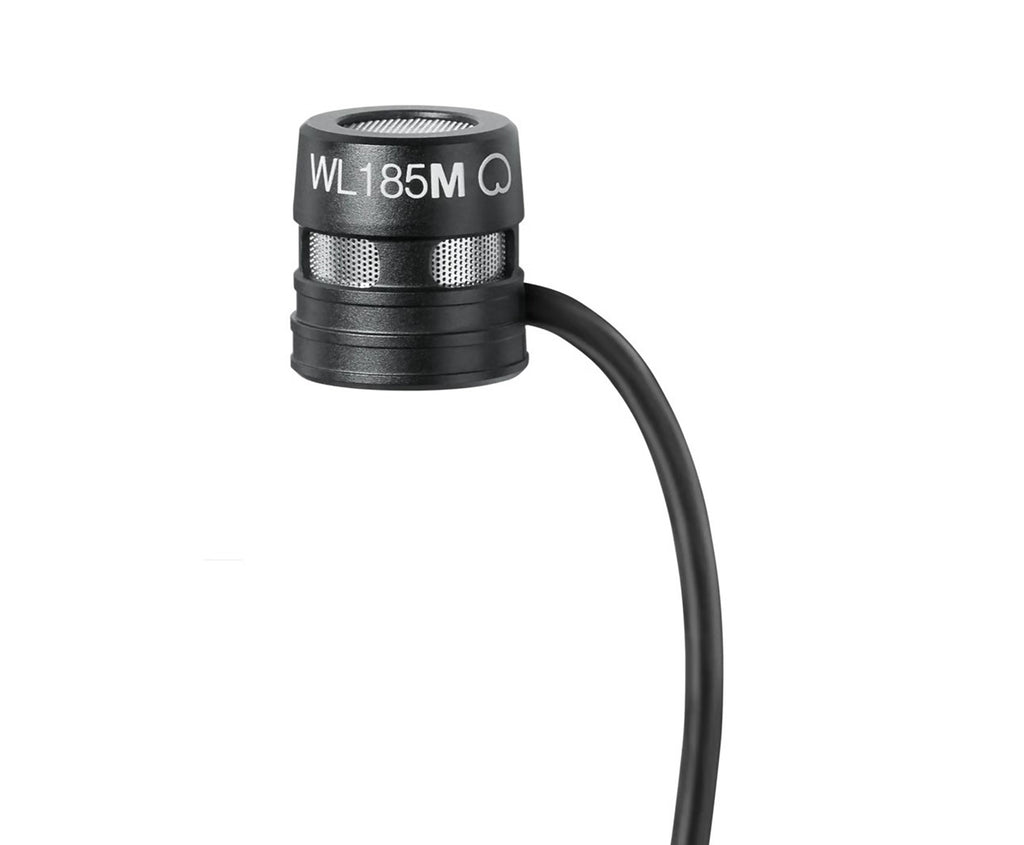

The included WL185m electret-condenser lavalier microphone features a cardioid polar pattern that focuses pickup on the speaker while helping reduce background noise and feedback in reinforced sound environments. Its low-profile design keeps the microphone visually discreet for on-camera, presentation, and broadcast use. The microphone connects via a locking TA4F connector to the compact SLXD1+ bodypack transmitter, which includes a belt clip and LCD screen for quick access to frequency, battery, and link status.

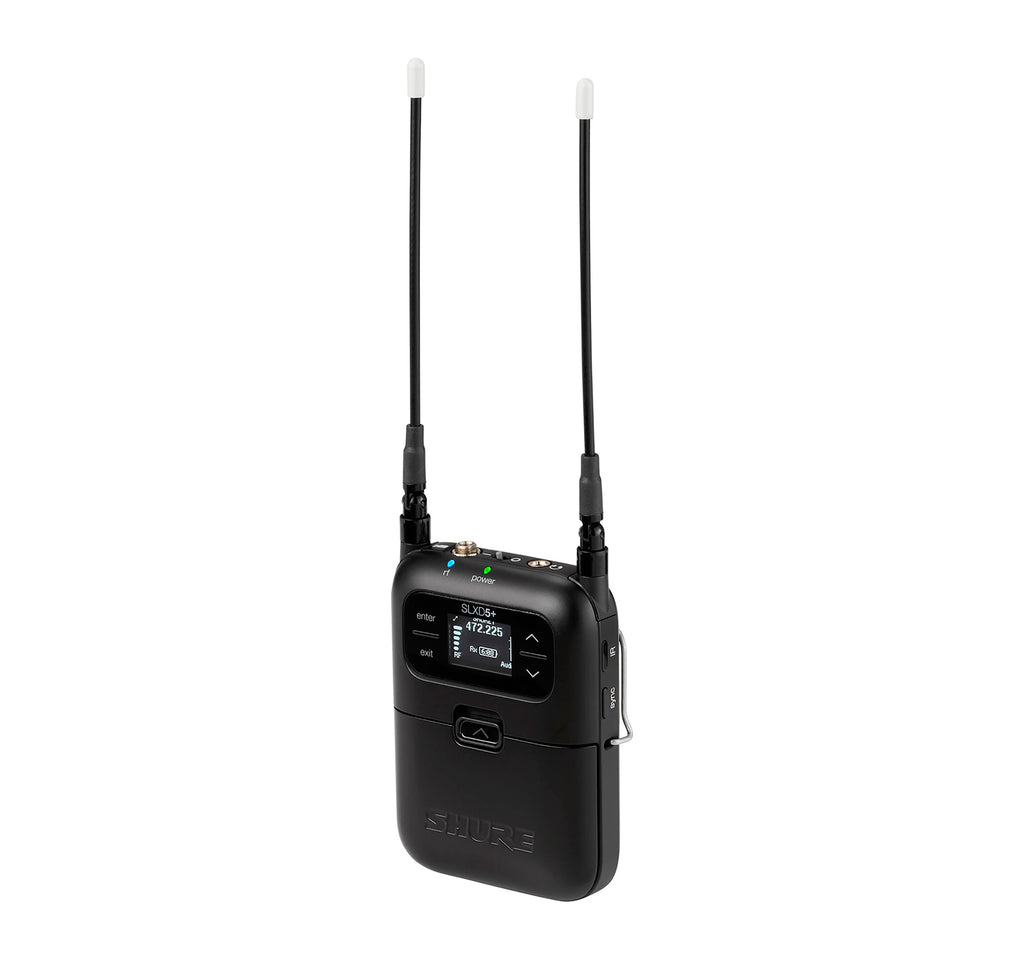

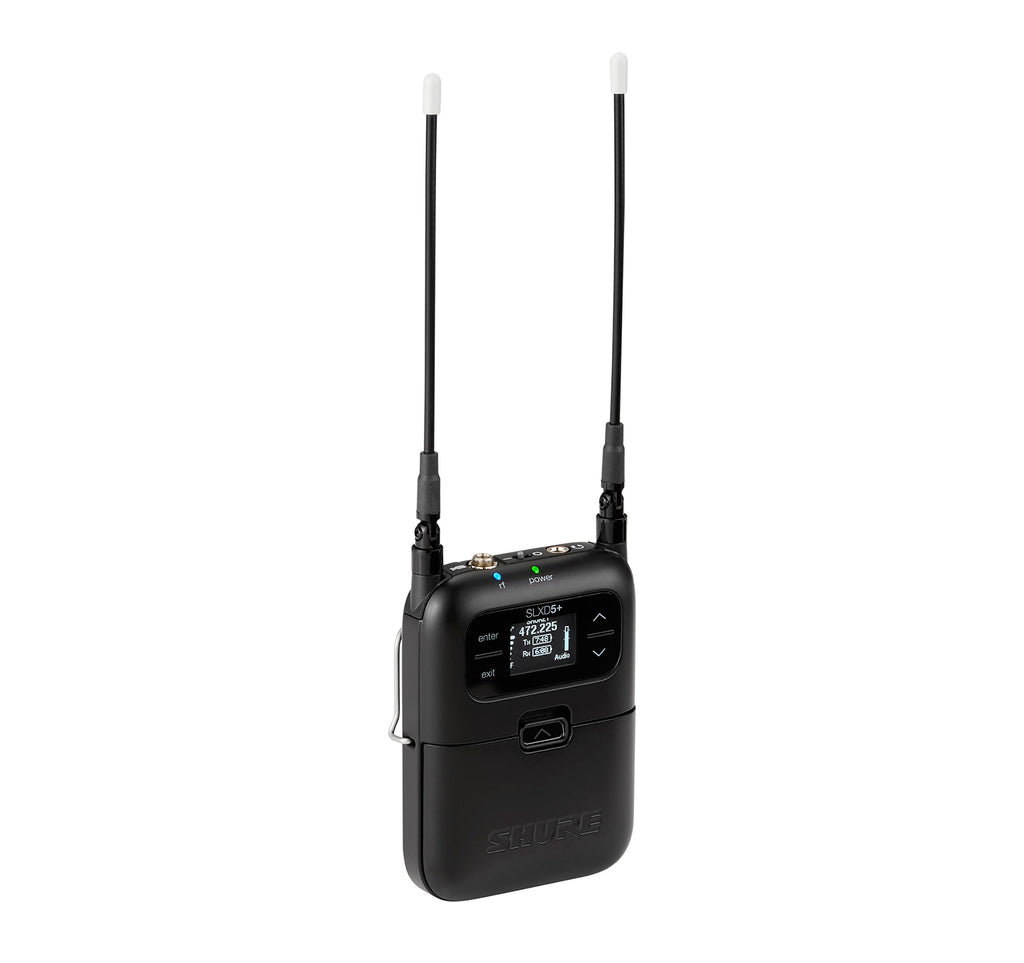

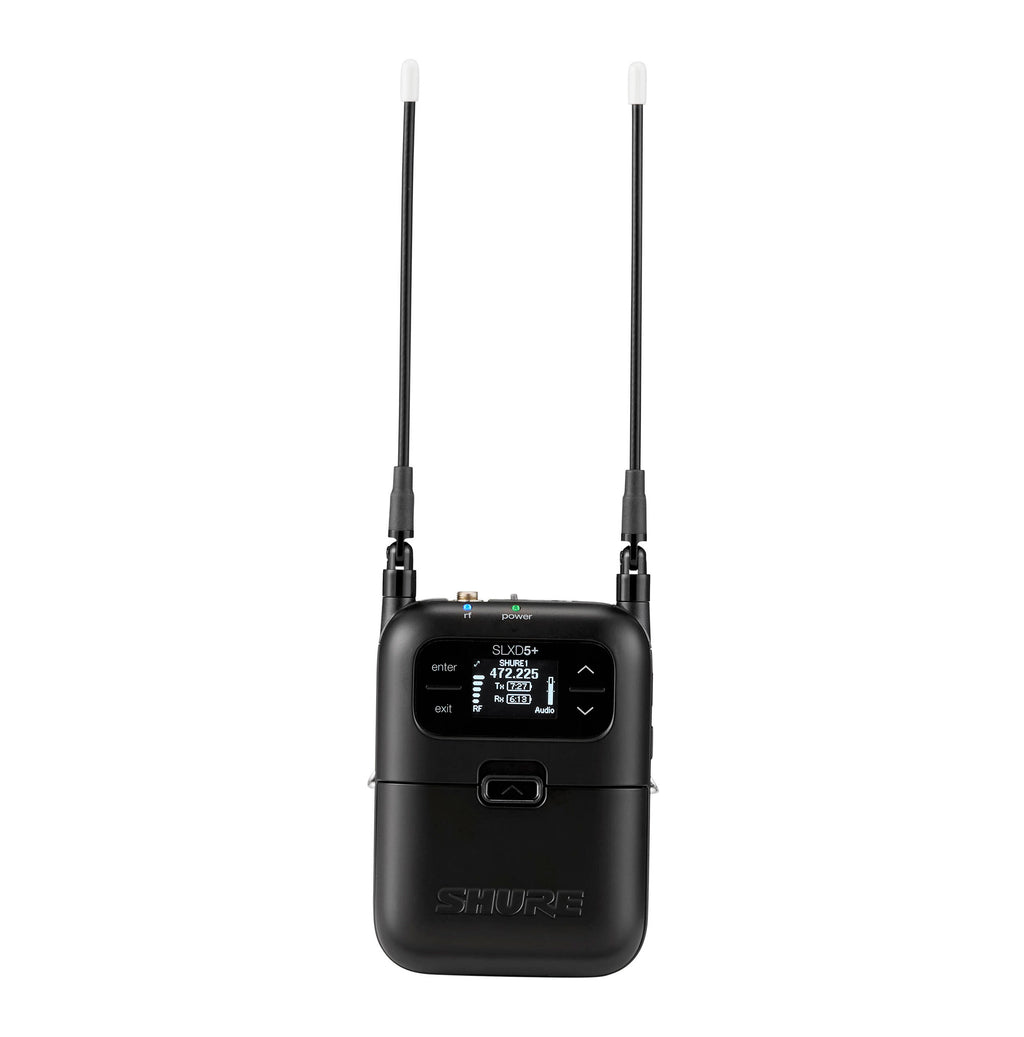

SLXD5+ Camera-Mount Digital Wireless Receiver

The SLXD5+ is a single-channel portable digital wireless receiver designed for on-camera cold-shoe mounting or audio-bag use. It delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range and rock-solid UHF RF performance. Dual 1/8" outputs provide a dedicated headphone monitoring output and a switchable mic/line output for direct connection to cameras, recorders, and mixers. It features a backlit LCD for important information at a glance, while its compact design makes it well suited for mobile production environments where speed and reliability are essential.

Transparent Digital Audio and Expanded RF Performance

SLX-D+ delivers pristine 24-bit digital audio with exceptional clarity and headroom. A wide 138 MHz tuning range (regionally dependent) provides greater geographical coverage and simplified frequency coordination. The system supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, enabling scalable multi-channel deployments, even in challenging RF environments.

ShowLink Ease Automated Wireless Management

ShowLink Ease enables real-time two-way communication between paired SLX-D+ receivers and transmitters using a dedicated control link. Once linked, transmitters automatically follow receivers across power cycles and frequency changes. Users can remotely change transmitter frequency, adjust gain, lock or unlock controls, deploy interference mitigation, and perform over-the-air firmware updates-directly from the receiver or a paired mobile device.

Wireless Workbench Desktop and Mobile Control

The SLXD15+/85M integrates with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app, allowing RF monitoring and system control over Wi-Fi or Bluetooth. Users can scan and coordinate frequencies, manage transmitters via ShowLink Ease, and monitor system status from a centralized interface-ideal for fast-moving production environments.

Integrated Digital Feedback Reduction

Patented Shure Digital Feedback Reduction (DFR) software is embedded in every SLX-D+ receiver. DFR automatically detects and suppresses feedback using dynamic notch filters, enhancing clarity and stability when lavalier microphones are used near loudspeakers or in unpredictable acoustic spaces.

Secure Operation and Flexible Power Options

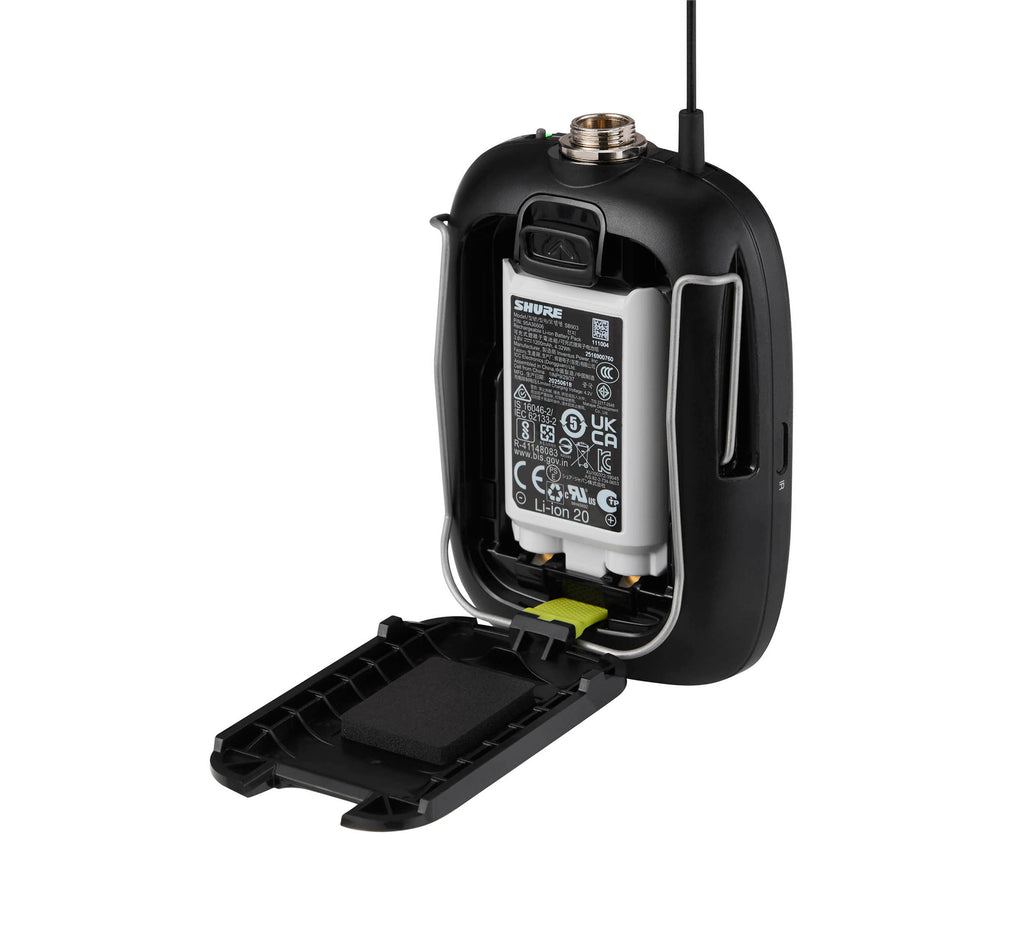

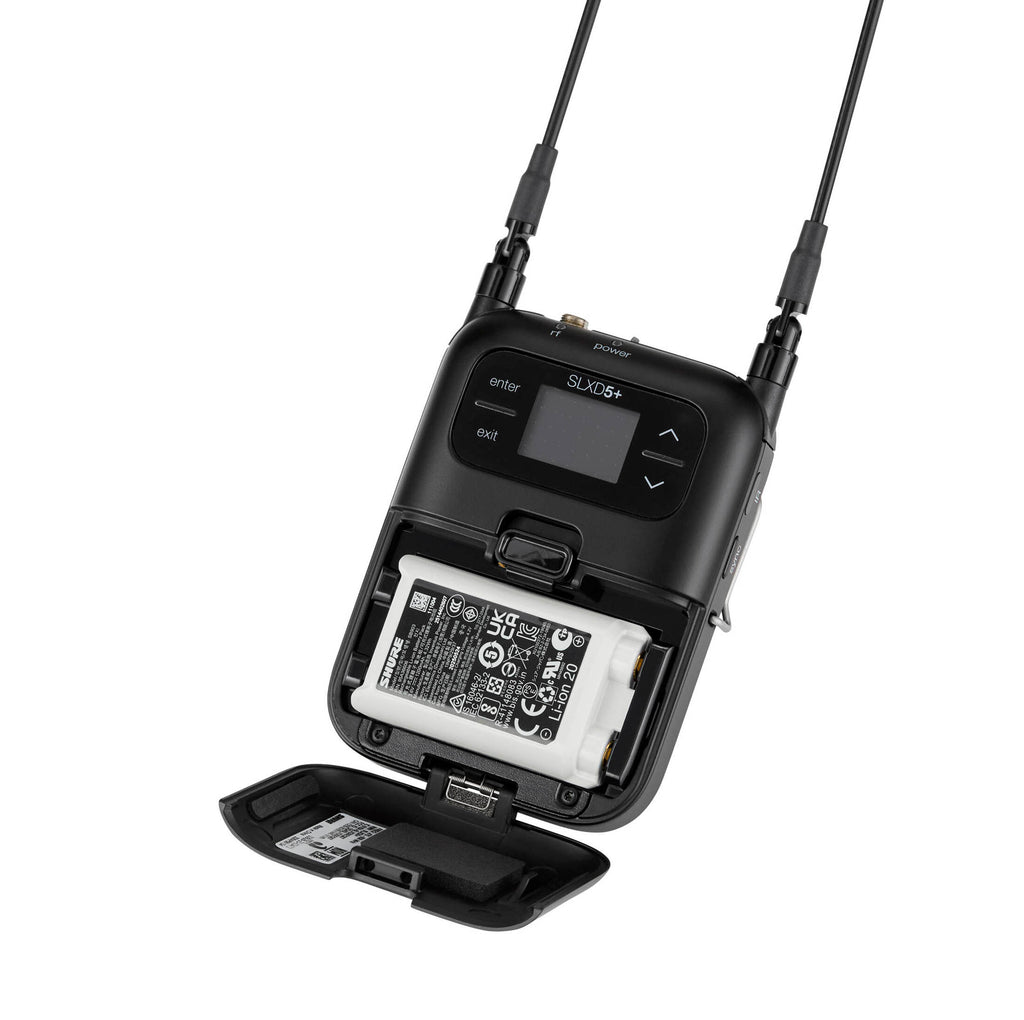

All SLX-D+ systems ship with AES-256 encryption enabled for secure wireless transmission. The SLXD1+ bodypack transmitter provides up to 8 hours of operation using two AA batteries or optional SB903 lithium-ion rechargeable batteries. The SLXD5+ camera-mount receiver offers up to 5.5 hours of operation using two AA batteries or optional SB903 rechargeable batteries, with compatibility for Shure charging accessories (available separately).

What’s Included:

1 SLXD5+ Single-Channel Portable Wireless Receiver

1 SLXD1+ Bodypack Transmitter

1 WL185m Low-Profile Cardioid Lavalier Microphone

1 single-mount tie clip

1 snap-fit windscreen

4 AA batteries

2 audio cables

1 WA311 Non-Conductive Cold Shoe Mount Adapter

Product Specifications:

Wireless Technology: Digital UHF

Diversity: Yes

RF Frequency Band: 470 to 608 MHz

Number of RF Channel Frequencies: 5520

RF Channel Scanning: Auto-Scan

Max Operating Range: 328.1' / 100 m

Max Transmitters per Band: 14

Dynamic Range: 118 dB

Latency: 2.8 ms

Encryption: AES 256

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: Yes: Android & iOS

Receiver:

Receiver Type: 1x Camera-Mount

Mounting Options: Shoe-Mount (with Included Hardware)

Antenna: 2x Removable 1/4 Wave Flexible Whip

Number of Audio Channels: 1

Audio I/O:

1x 1/8" / 3.5 mm TRS Balanced Mic/Line Output

1x 1/8" / 3.5 mm TRS Headphone Output

Network I/O: No

USB/Lightning Connectivity: No

Gain Range: -18 to +42 dB

Display: Backlit LCD

Power Requirements: Battery

Transmitters:

Included Transmitters: 1x Bodypack

RF Output Power: 1 / 10 mW

Antenna: Fixed 1/4 Wave

Input Level: Microphone / Instrument

Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input

Bias/Plug-In & Phantom Power:

Voltage is Unspecified

No Phantom Support

USB I/O: No

Muting: Off/On Switch

Auto-Level/Gain: No

Sync Method: IR

Display: Backlit LCD

Microphones:

Microphone Type: 1x Lavalier

Polar Pattern: Cardioid

Frequency Response: 70 Hz to 20 kHz

Maximum SPL: 140.5 dB

Sensitivity: -43 dBV/Pa

Output Connector: 1x TA4F/Mini-XLR 4-Pin Female

Cable Length: 4' / 1.2 m

Color: Black

Power:

Receiver Battery Type:

2x AA (Included)

1x Shure SB903

Transmitter Battery Type:

2x AA (Included)

1x Shure SB903 (Not Included)

Transmitter Battery Life: 5.5 Hours

Included Charging Case: No

AC/DC Power Adapter: No

Physical:

Environmental Resistance: No

Housing:

Aluminum (Receiver)

ABS (Bodypack Transmitter)

Dimensions:

Receiver: 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm

Bodypack Transmitter: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm

Weight:

Receiver: 0.4 lb / 182 g

Bodypack Transmitter: 3.1 oz / 89 g
