Description

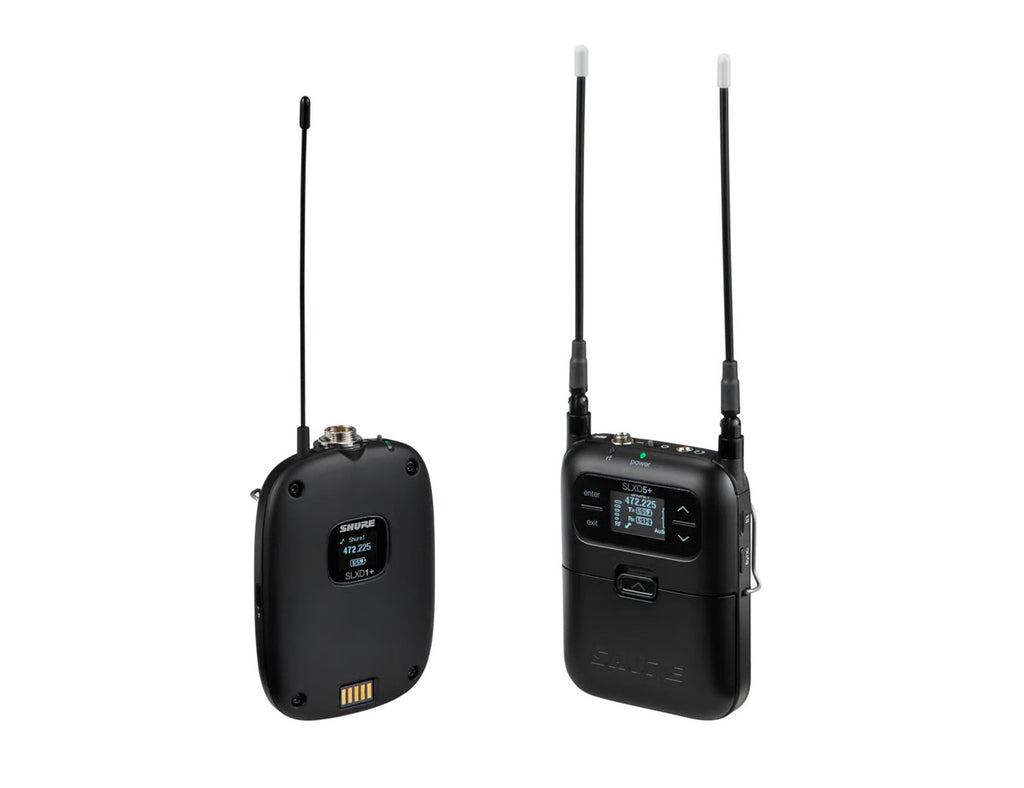

The Shure SLXD15+ portable bodypack wireless system features the SLXD5+ Portable Receiver and the SLXD1+ bodypack transmitter for videographers, ENG and field production, film and location sound applications. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
Transparent Digital Audio and Expanded RF Performance
SLX-D+ delivers pristine 24-bit digital audio with exceptional clarity and headroom. A wide 138 MHz tuning range (regionally dependent) provides greater geographical coverage and simplified frequency coordination. The system supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, enabling scalable multi-channel deployments, even in challenging RF environments.
ShowLink Ease Automated Wireless Management
ShowLink Ease enables real-time two-way communication between paired SLX-D+ receivers and transmitters using a dedicated control link. Once linked, transmitters automatically follow receivers across power cycles and frequency changes. Users can remotely change transmitter frequency, adjust gain, lock or unlock controls, deploy interference mitigation, and perform over-the-air firmware updates-directly from the receiver or a paired mobile device.
Wireless Workbench Desktop and Mobile Control
The SLXD15+ integrates with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app, allowing RF monitoring and system control over Wi-Fi or Bluetooth. Users can scan and coordinate frequencies, manage transmitters via ShowLink Ease, and monitor system status from a centralized interface—ideal for fast-moving production environments.
Integrated Digital Feedback Reduction
Patented Shure Digital Feedback Reduction (DFR) software is embedded in every SLX-D+ receiver. DFR automatically detects and suppresses feedback using dynamic notch filters, enhancing clarity and stability when lavalier microphones are used near loudspeakers or in unpredictable acoustic spaces.
Secure Operation and Flexible Power Options

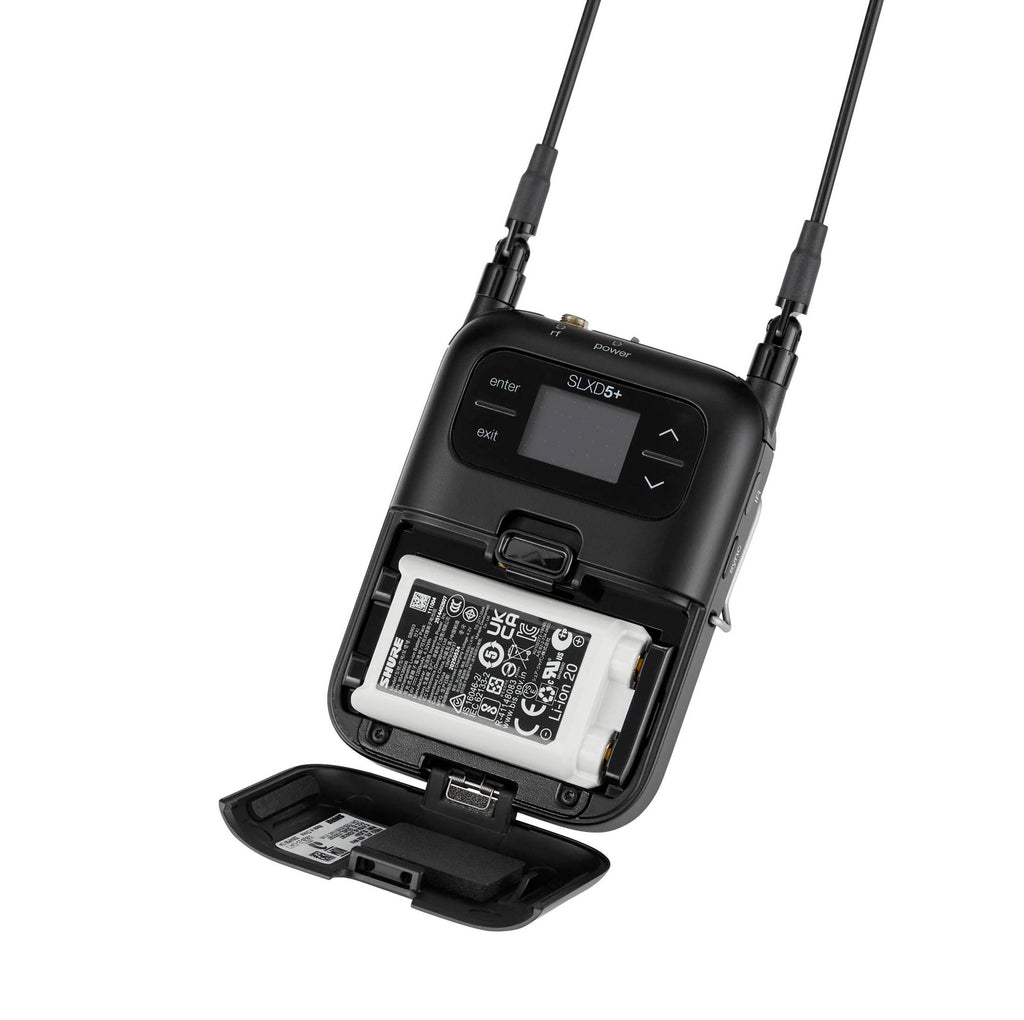

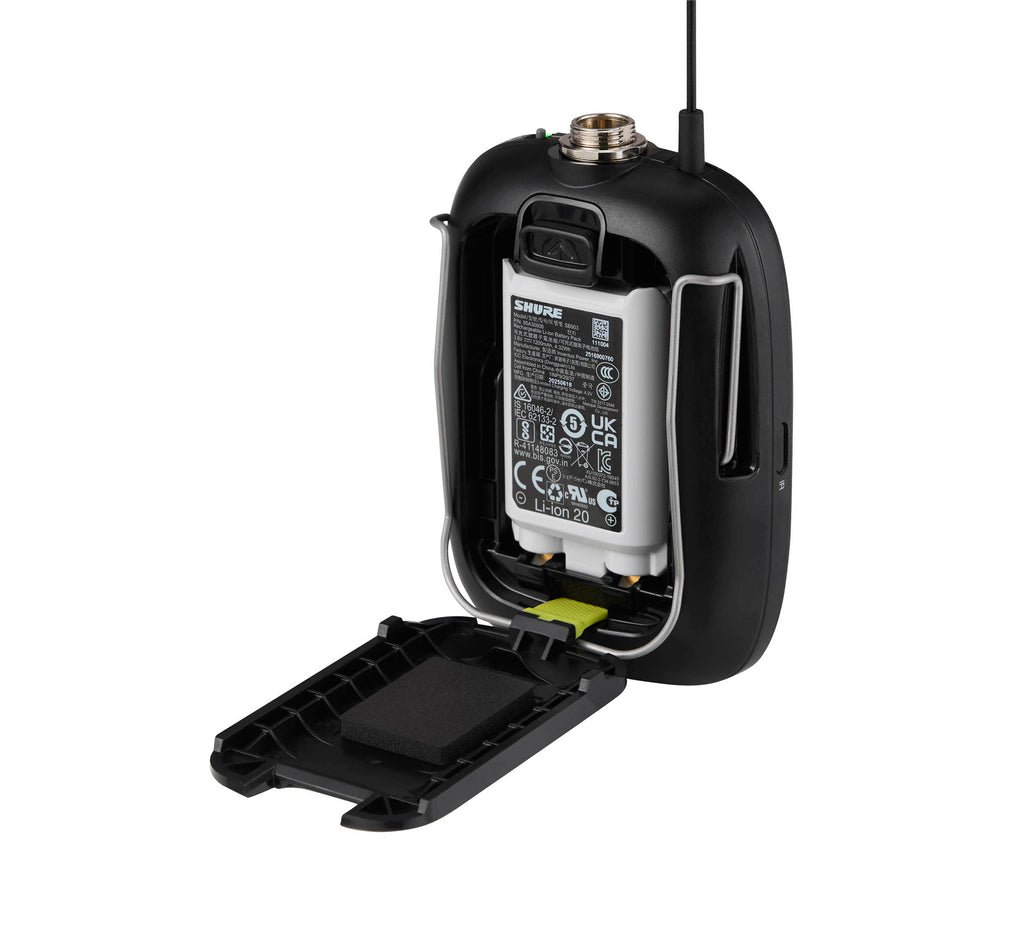

All SLX-D+ systems ship with AES-256 encryption enabled for secure wireless transmission. The SLXD1+ bodypack transmitter provides up to 8 hours of operation using two AA batteries or optional SB903 lithium-ion rechargeable batteries. The SLXD5+ camera-mount receiver offers up to 5.5 hours of operation using two AA batteries or optional SB903 rechargeable batteries, with compatibility for Shure charging accessories (available separately).
What’s Included:

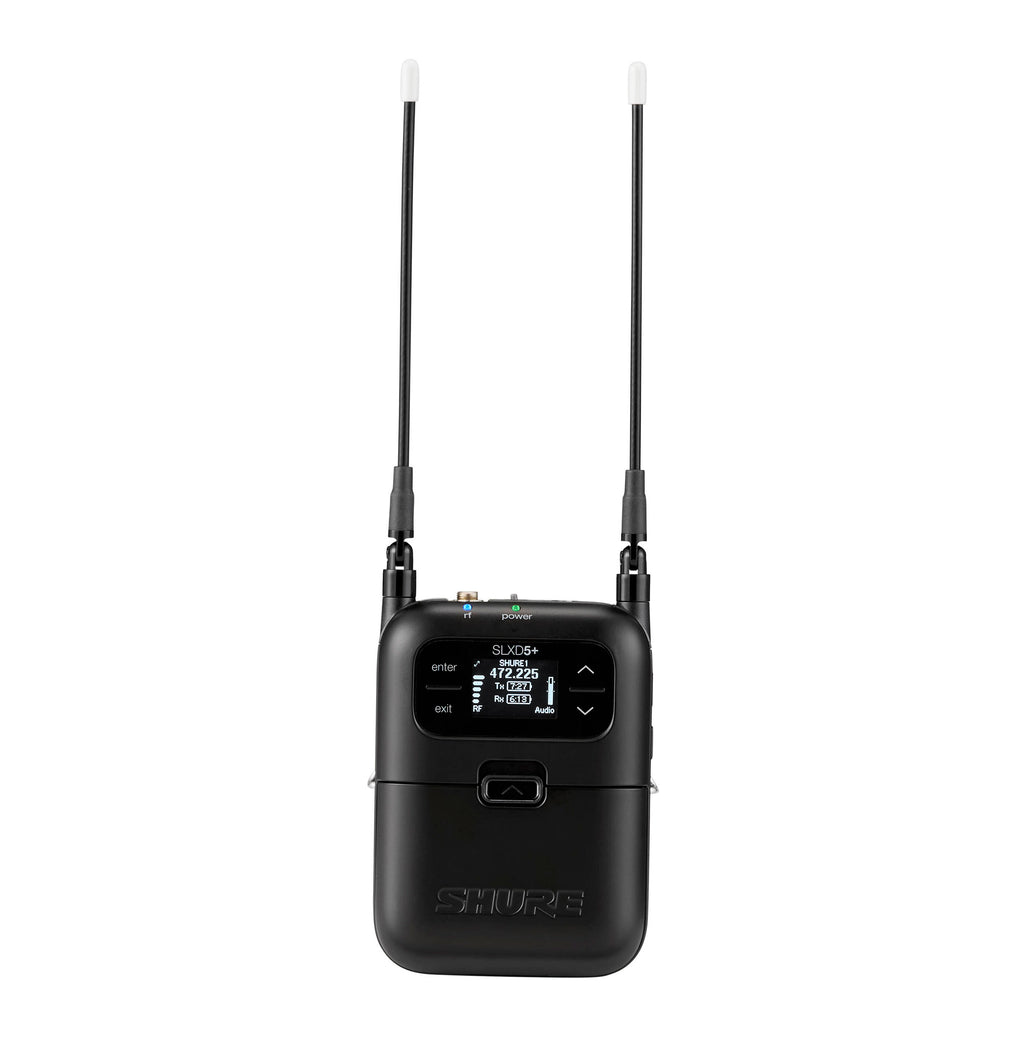

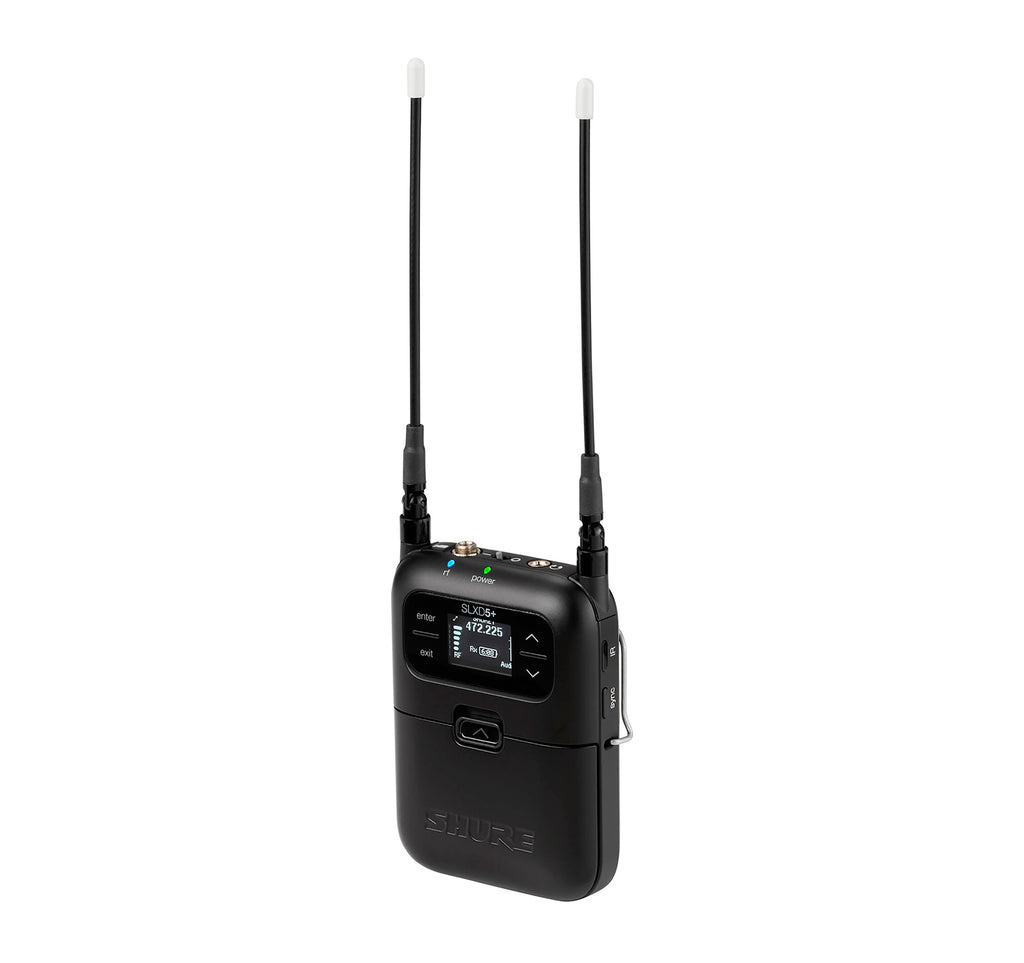

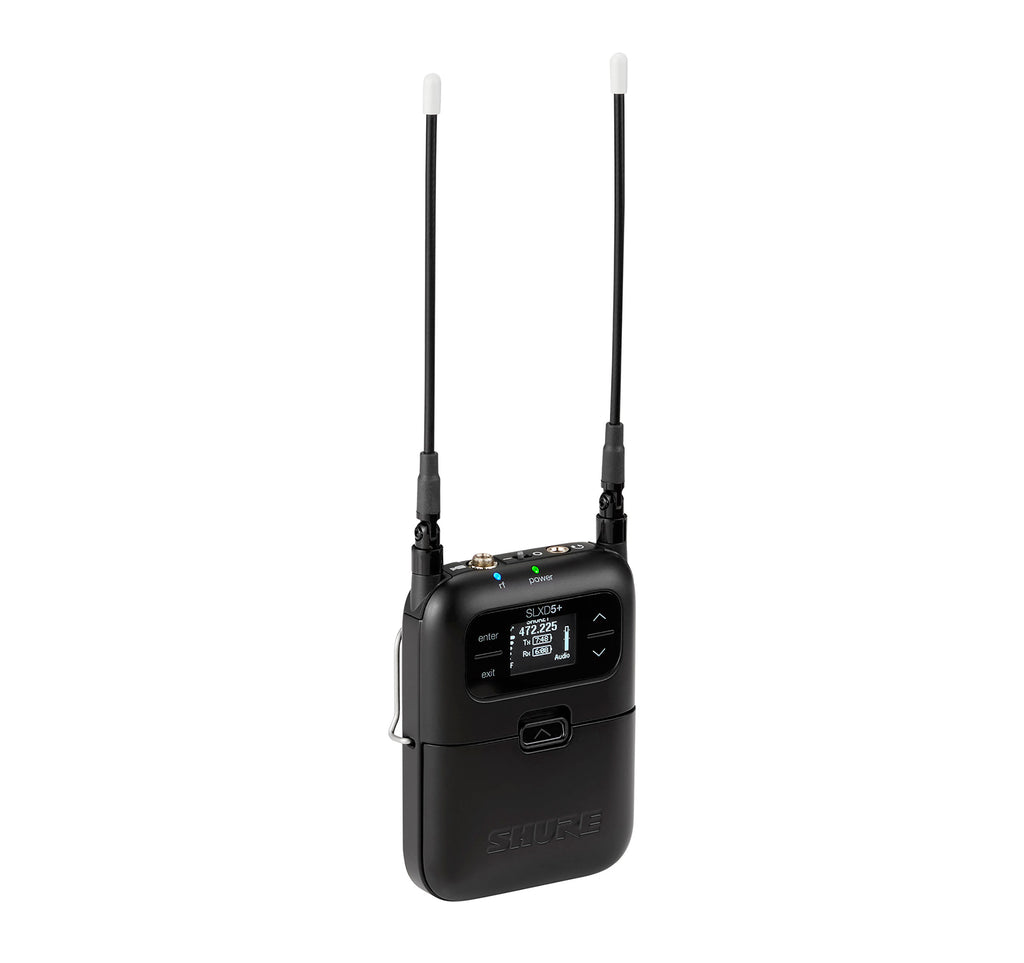

1 SLXD5+ Single-Channel Portable Wireless Receiver

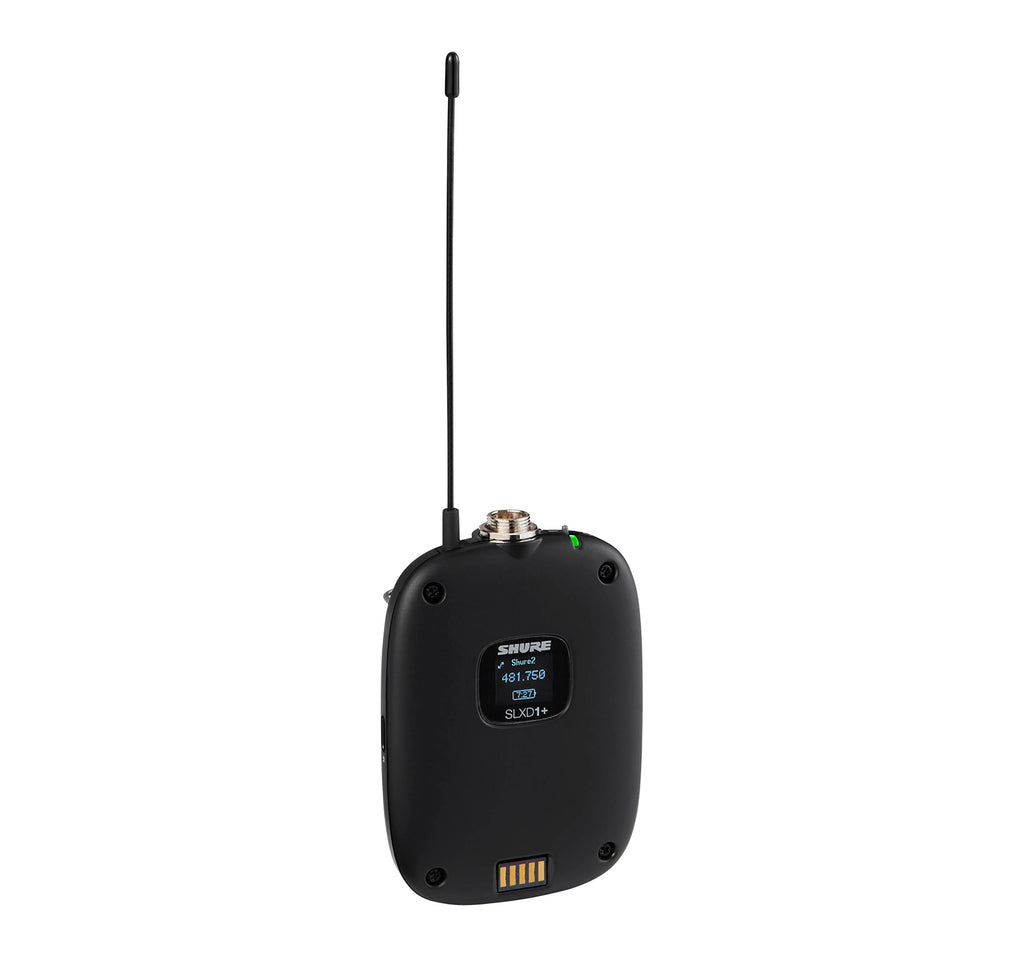

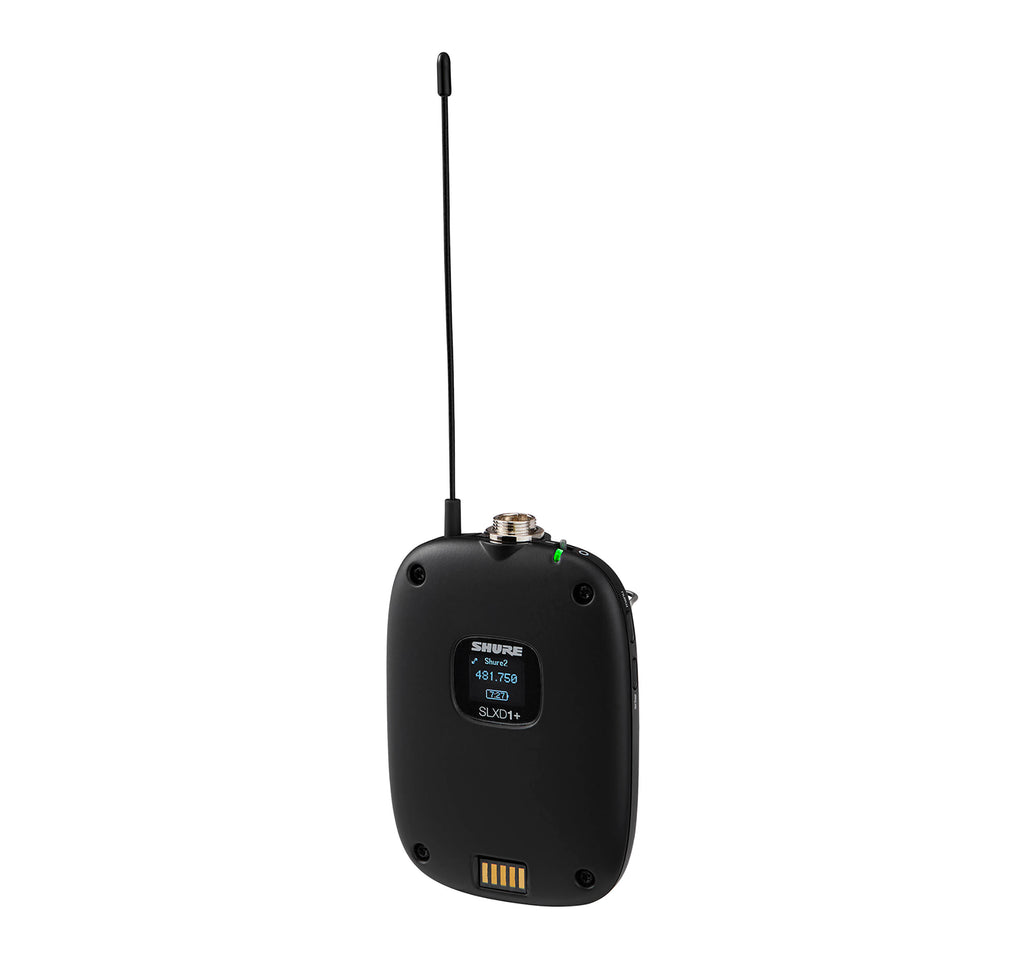

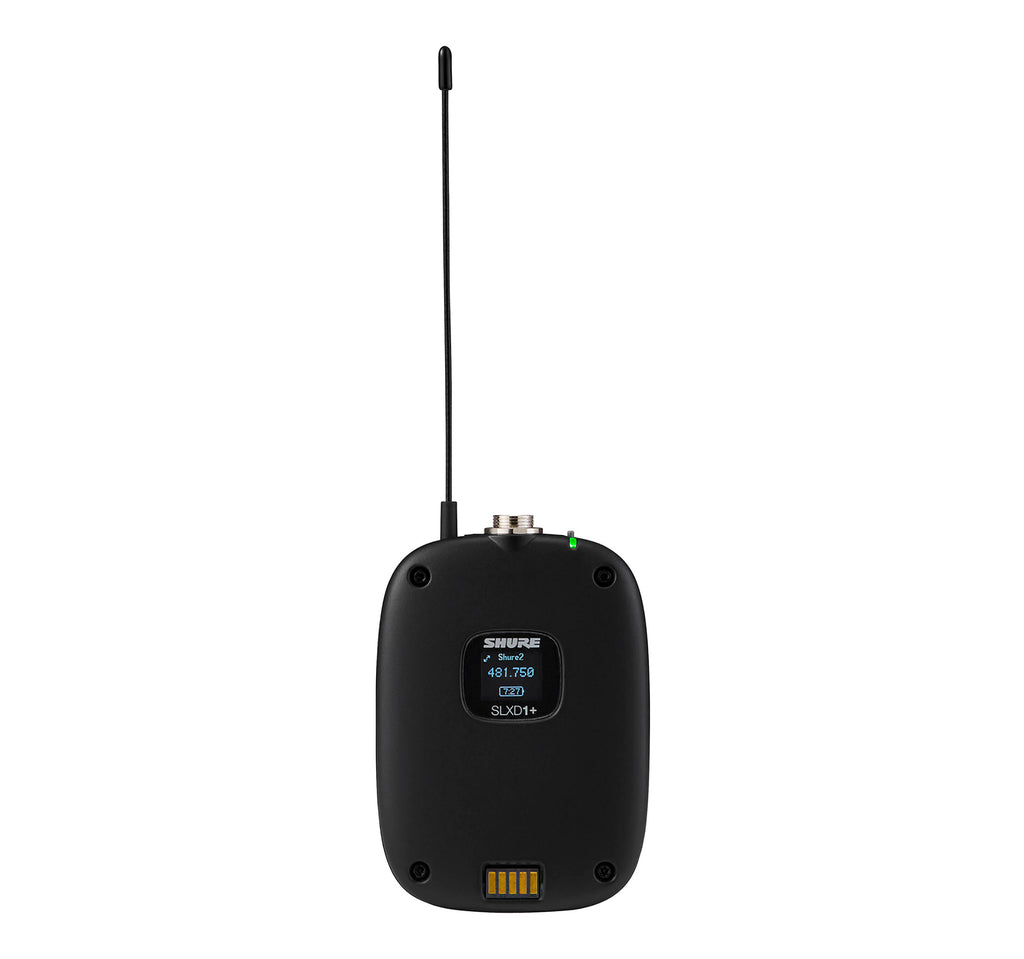

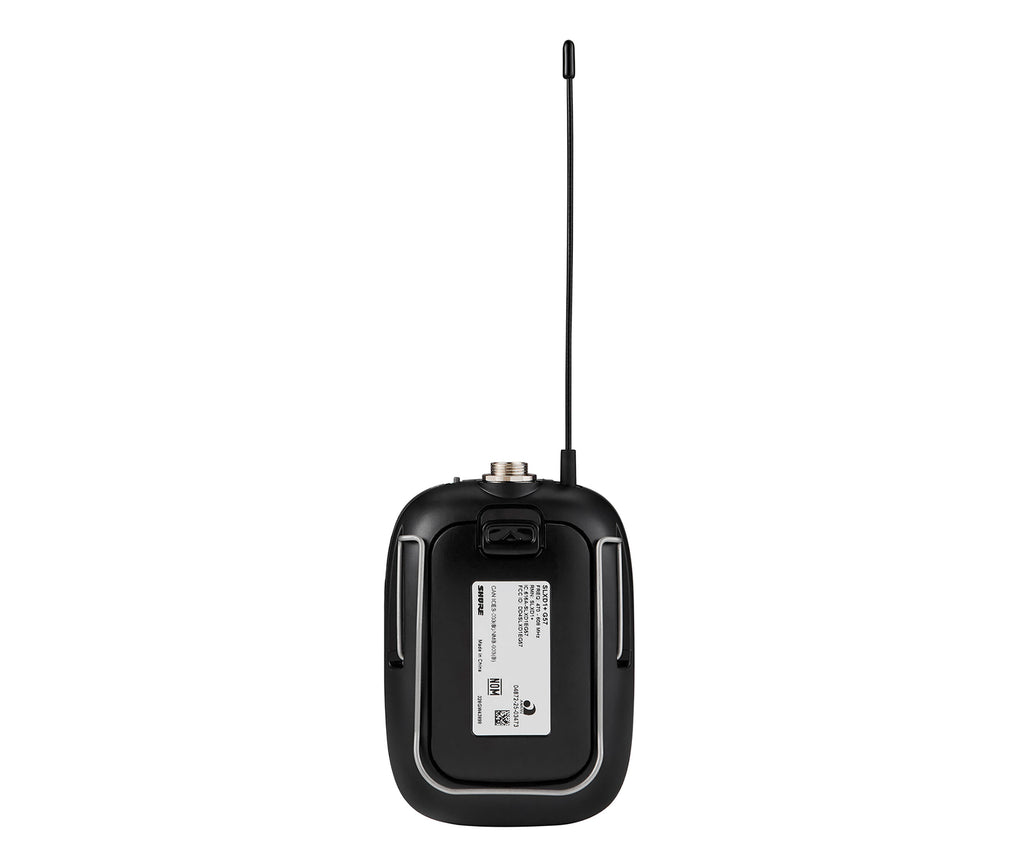

1 SLXD1+ Bodypack Transmitter
2 zippered Carrying Pouches
4 AA batteries
1 leather protective sleeve with integrated belt clip
1 WA311 Non-Conductive Cold Shoe Mount Adapter
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Receiver:
Receiver Type: 1x Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: 2x Removable 1/4 Wave Flexible Whip
Number of Audio Channels: 1
Audio I/O:
1x 1/8" / 3.5 mm TRS Balanced Mic/Line Output
1x 1/8" / 3.5 mm TRS Headphone Output
Network I/O: No
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Display: Backlit LCD
Power Requirements: Battery
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 1 / 10 mW
Antenna: Fixed 1/4 Wave
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power:
Voltage is Unspecified
No Phantom Support
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: No Microphone Included
Power:
Receiver Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Receiver Battery Life: 5.5 Hours
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: No
Physical:
Environmental Resistance: No
Housing:
Aluminum (Receiver)
ABS (Bodypack Transmitter)
Dimensions:
Receiver: 4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
Bodypack Transmitter: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm
Weight:
Receiver: 0.4 lb / 182 g
Bodypack Transmitter: 3.1 oz / 89 g
