Description

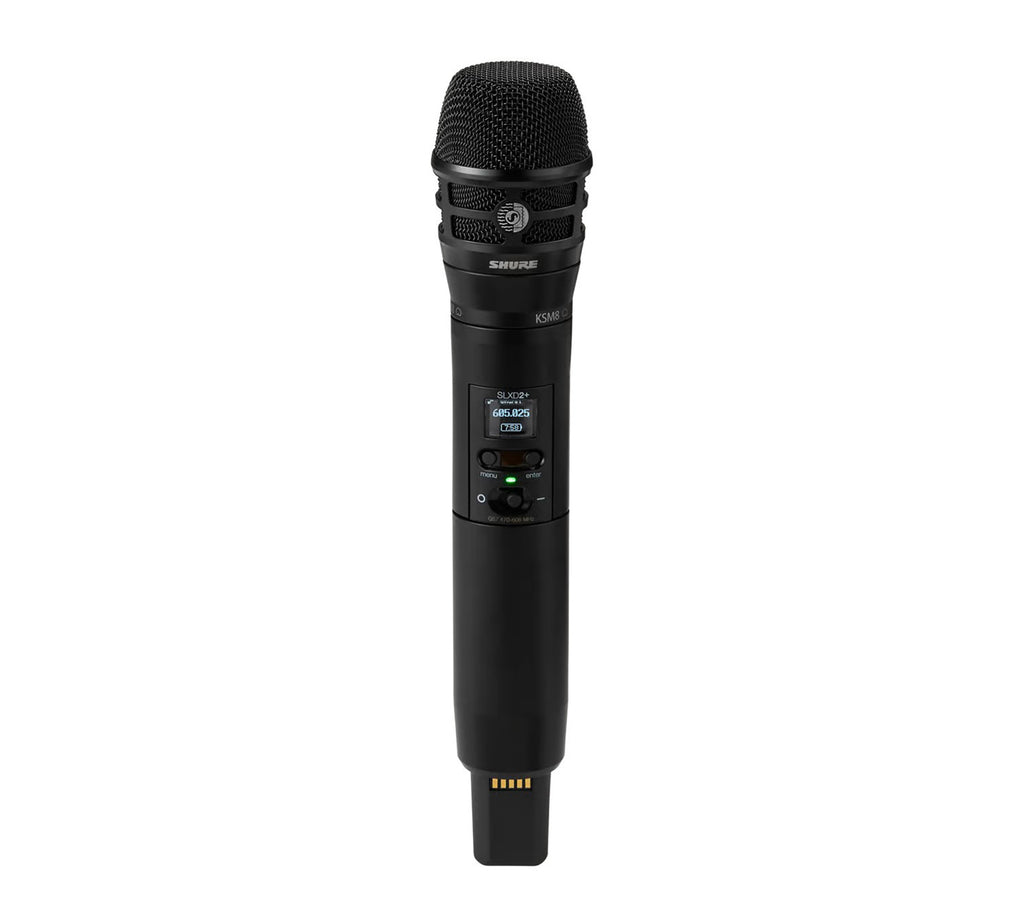

The Shure SLXD2+/K8B handheld transmitter, featuring the KSM8 Dualdyne cardioid dynamic microphone, unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
SLX-D+ delivers transparent 24-bit digital audio quality with greater than 118 dB dynamic range, combined with rock-solid RF performance and a wide 138 MHz tuning range for enhanced geographical coverage. It supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 simultaneous systems in 8 MHz TV bands. Automatic Setup ensures that once linked, receivers and transmitters remain securely connected—even in the presence of RF interference—providing dependable, uninterrupted performance.
With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including frequency changes once an open channel is identified, power level adjustments, control lock/unlock, and firmware updates. Monitor RF status and manage system settings via Wireless Workbench desktop software or the WWB Mobile app over Wi-Fi or Bluetooth. Each SLX-D+ component ships with AES-256 encryption for secure operation and delivers up to 8 hours of use with included AA batteries or optional SB903 Li-ion rechargeable batteries from Shure, all housed in rugged metal construction built for professional durability.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power:
N/A: Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Cardioid
Frequency Response: 40 Hz to 16 kHz
Sensitivity: -51.5 dBV/Pa
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: Aluminum
Dimensions: 6.9 x 1.5" / 176 x 37.1 mm
Weight: 5.1 oz / 144 g
Shipping Weight: 1.53 lbs.
Shipping Dimensions (LxWxH): 11 x 5.3 x 3.4"
