Description

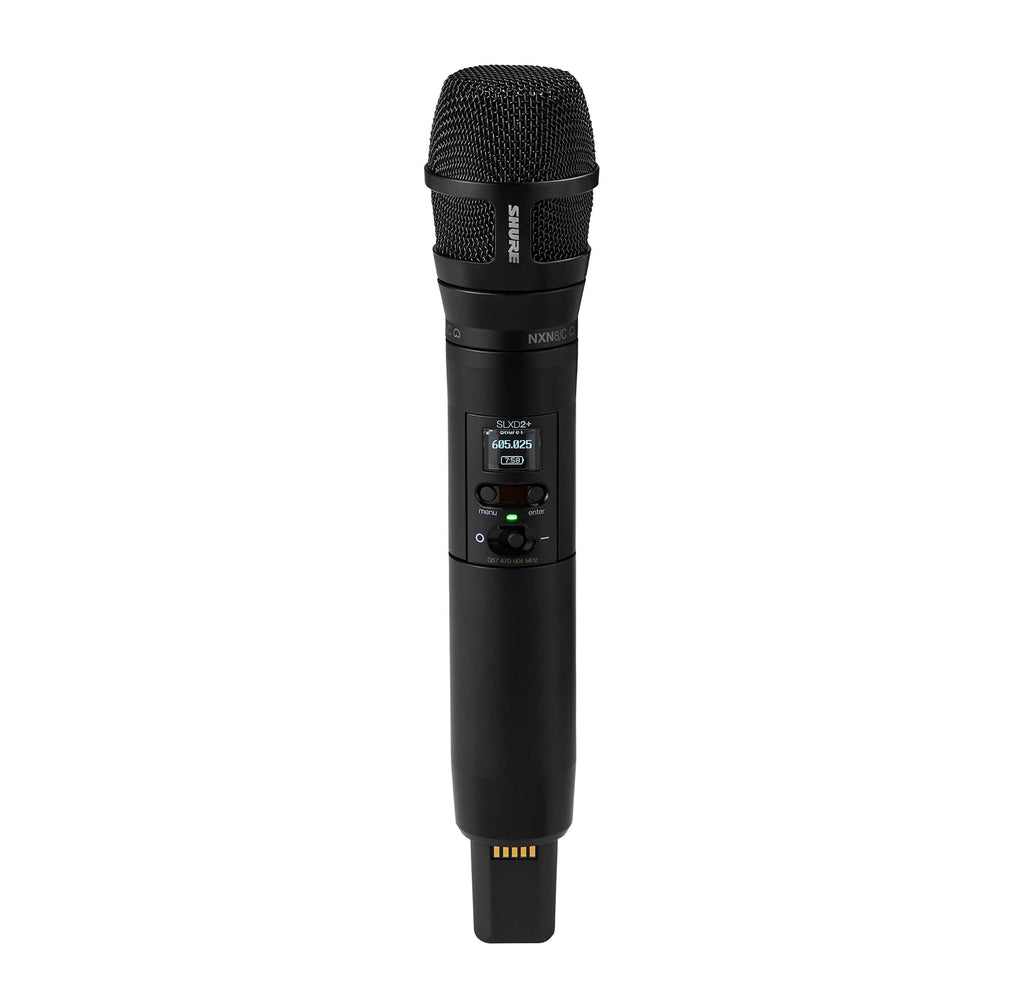

The Shure SLXD2+TA/N8C Digital Wireless Handheld Microphone Transmitter with Nexadyne 8/C Cardioid Capsule - TAA Compliant is designed for live performance, installed sound, and houses of worship. It features a rugged aluminum, stage-ready design with a backlit LCD screen for clear system information. This version includes the Nexadyne 8/C cardioid dynamic capsule, optimized for focused vocal capture and natural clarity while reducing background noise in demanding live environments.
Advanced Capsule Technology and Audio Performance
The Nexadyne 8/C uses Shure’s Revonic dual-transducer design, where two precisely matched transducers work together to improve sound quality and reject unwanted noise. By wiring them out of phase, mechanical vibration is canceled at the source, reducing self-noise and eliminating the need for traditional shockmounts. This results in clear, natural vocal reproduction with reduced handling noise and improved gain before feedback. When paired with an SLX-D+ receiver, the SLXD2+ delivers transparent 24-bit digital audio with over 118 dB dynamic range and supports a wide tuning bandwidth of up to 138 MHz for reliable performance in complex RF environments.
Intelligent Control, Flexibility, and Power Options
The SLXD2+ features ShowLink Ease technology for real-time, two-way communication with compatible receivers via BLE, enabling automatic frequency synchronization and remote control of settings like RF power and control locks. It also supports over-the-air firmware updates and interference management without physically handling the microphone. Its interchangeable capsule system supports options such as Nexadyne 8/S, SM58, Beta 58A, Beta 87A, and KSM8 for different vocal applications. For power, it runs up to 8 hours on two AA batteries or optional SB903 rechargeable batteries, with accurate runtime tracking when used with compatible charging accessories.
Product Specification:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible:
Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power:
N/A: Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Cardioid
Frequency Response: 50 Hz to 20 kHz
Sensitivity: -54 dBV/Pa
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: Aluminum
Product Dimensions: 6.9 x 1.5" / 176 x 37.1 mm
Product Weight: 1 lbs.
ShippingDimensions: 11 x 5.28 x 3.15 inch
Shipping Weight: 1.5 lbs.
