Description

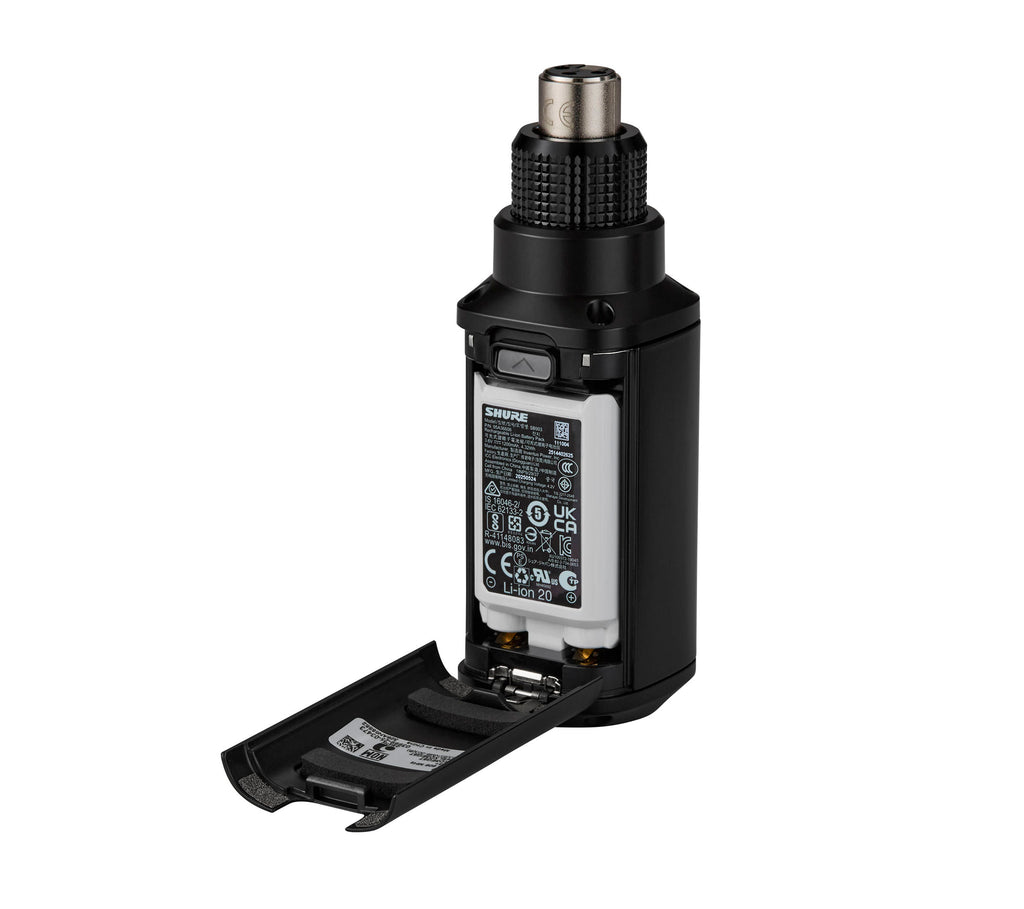

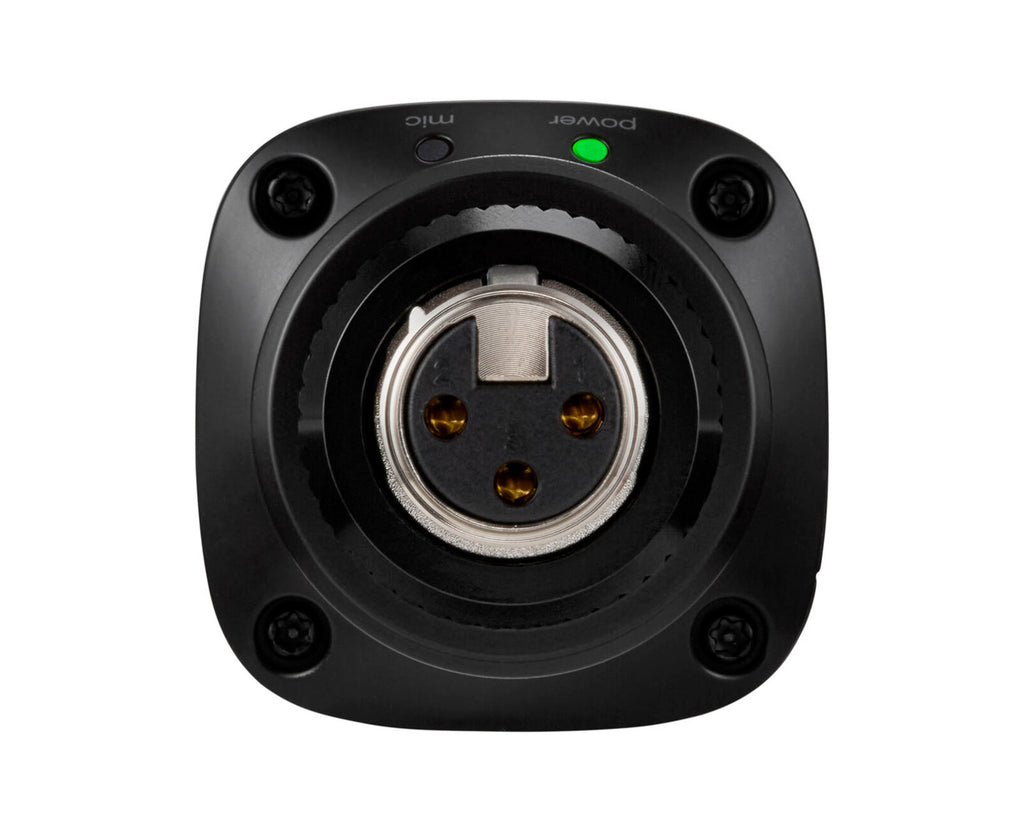

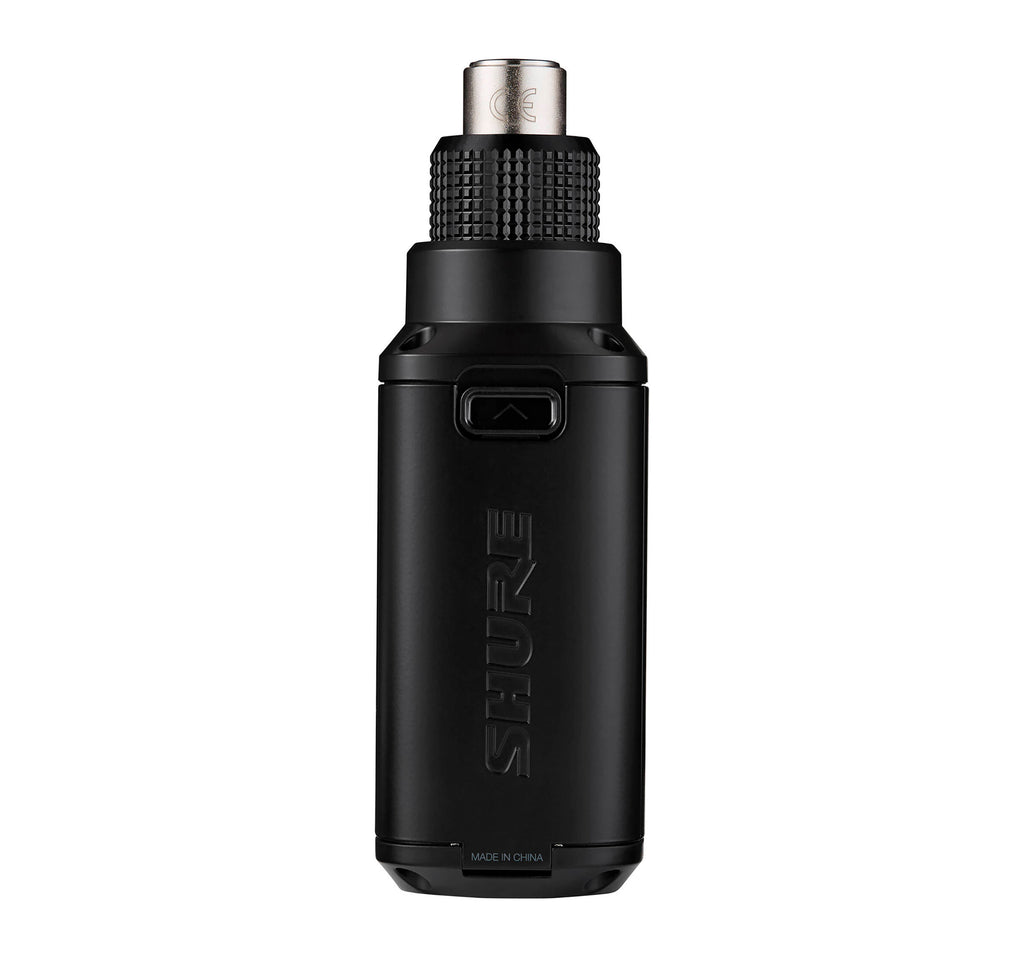

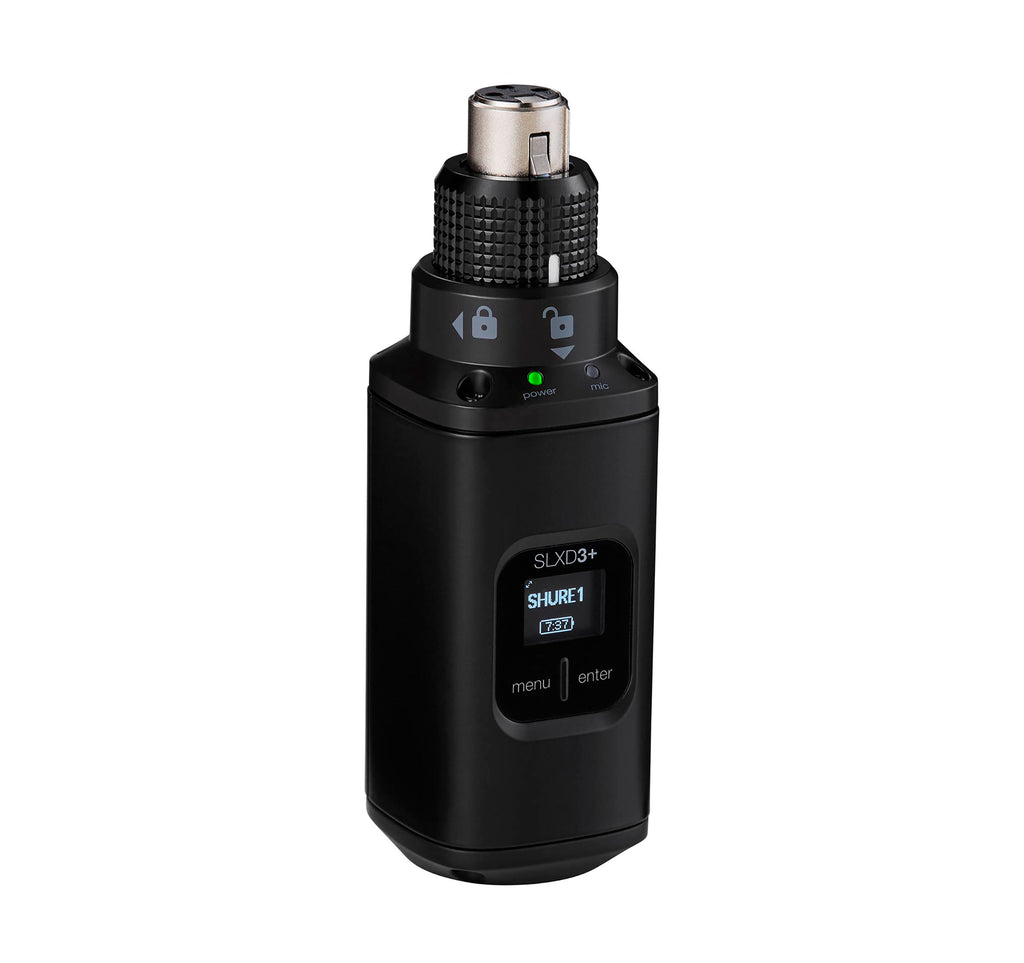

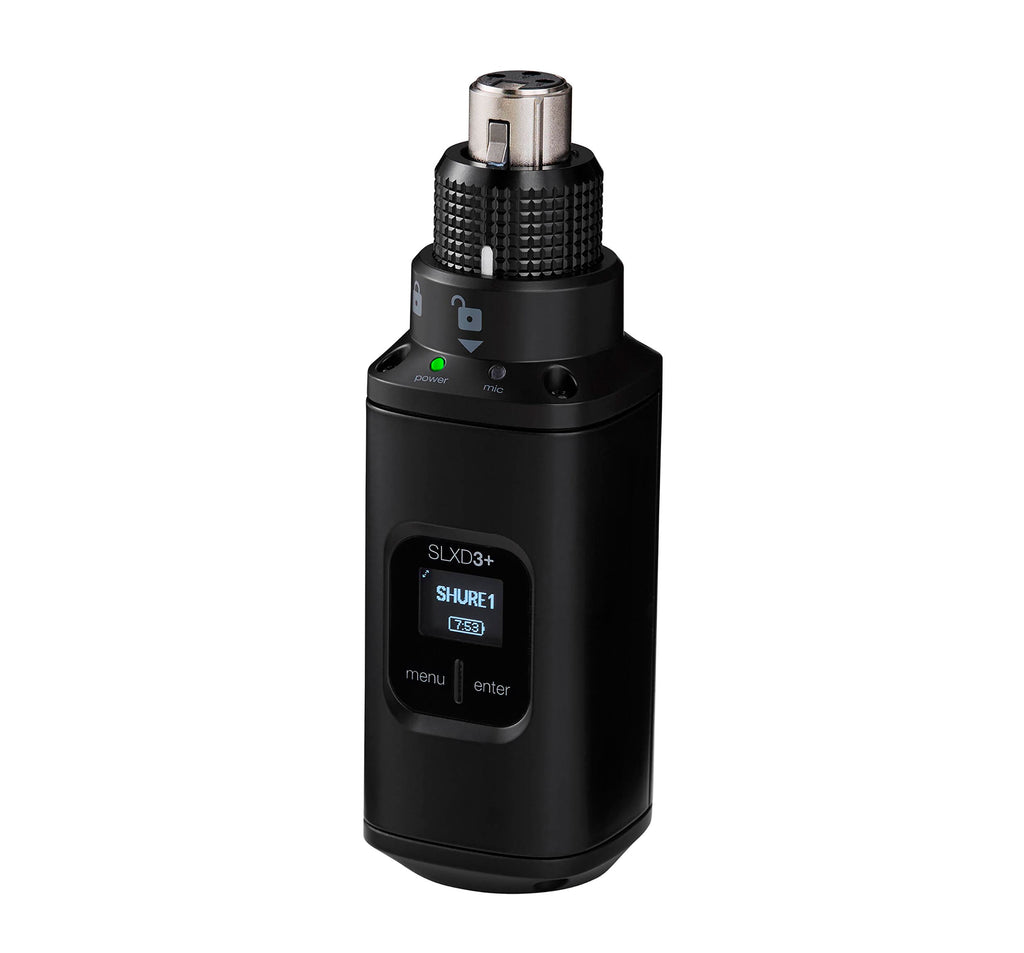

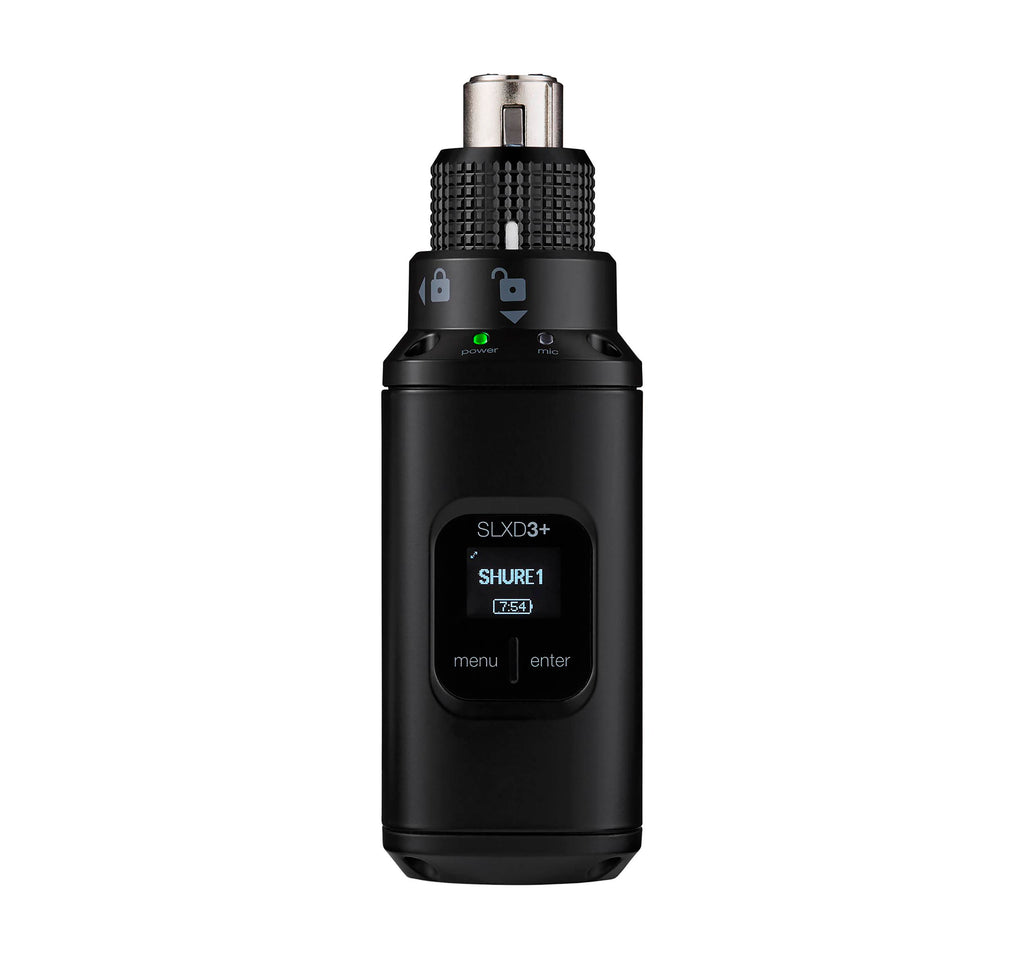

The Shure SLXD3+TA Digital Wireless Plug-On Transmitter (TAA Compliant) is designed to convert any XLR microphone into a wireless solution for broadcast, field production, and live sound applications. Its rugged, compact form factor is ideal for handheld, boom-mounted, or fixed-position microphones. A patented locking XLR mechanism ensures a secure, wobble-free connection, making it perfect for ENG mics, shotgun microphones, interview setups, and boundary microphones in demanding environments.
High-Quality Audio and RF Performance
Built on the SLX-D+ platform, the SLXD3+ delivers pristine 24-bit digital audio with over 118 dB of dynamic range for clear and accurate sound reproduction. It supports both dynamic and condenser microphones, with selectable +12 to +48 VDC phantom power for full compatibility. A wide tuning range of up to 138 MHz (region dependent) simplifies frequency coordination and ensures reliable performance, supporting up to 11 systems per 6 MHz band and 14 systems per 8 MHz band in dense RF conditions.
Advanced Control, Integration, and Power Options
The SLXD3+ features ShowLink Ease for real-time, two-way communication with compatible receivers, allowing automatic synchronization and remote adjustment of settings like frequency, RF power, and control locks. It integrates seamlessly with Shure Wireless Workbench desktop software and the mobile app for centralized monitoring and control via Wi-Fi or Bluetooth. For secure operation, it includes AES-256 encryption. Power options include up to 8 hours of use on two AA batteries or optional SB903 rechargeable batteries, with compatibility for Shure charging accessories for efficient workflow management.
Product Specification:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible:
Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Plug-On Microphone
RF Output Power: 1 / 10 / 30 mW
Antenna: Fixed Sleeve Dipole
Input Level: Microphone / Line
Audio I/O: No
Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power:
Voltage is Unspecified
12 / 48 V Phantom Power
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: No Microphone Included
Cable Length: 4' / 1.2 m
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: No
Physical:
Environmental Resistance: No
Housing: ABS, Aluminum
Product Dimensions: 5 x 1.6 x 1.6" / 126 x 41 x 41 mm
Product Weight: 0.6 lbs.
ShippingDimensions: 11 x 5.28 x 3.15 inch
Shipping Weight: 1.5 lbs.
