Description

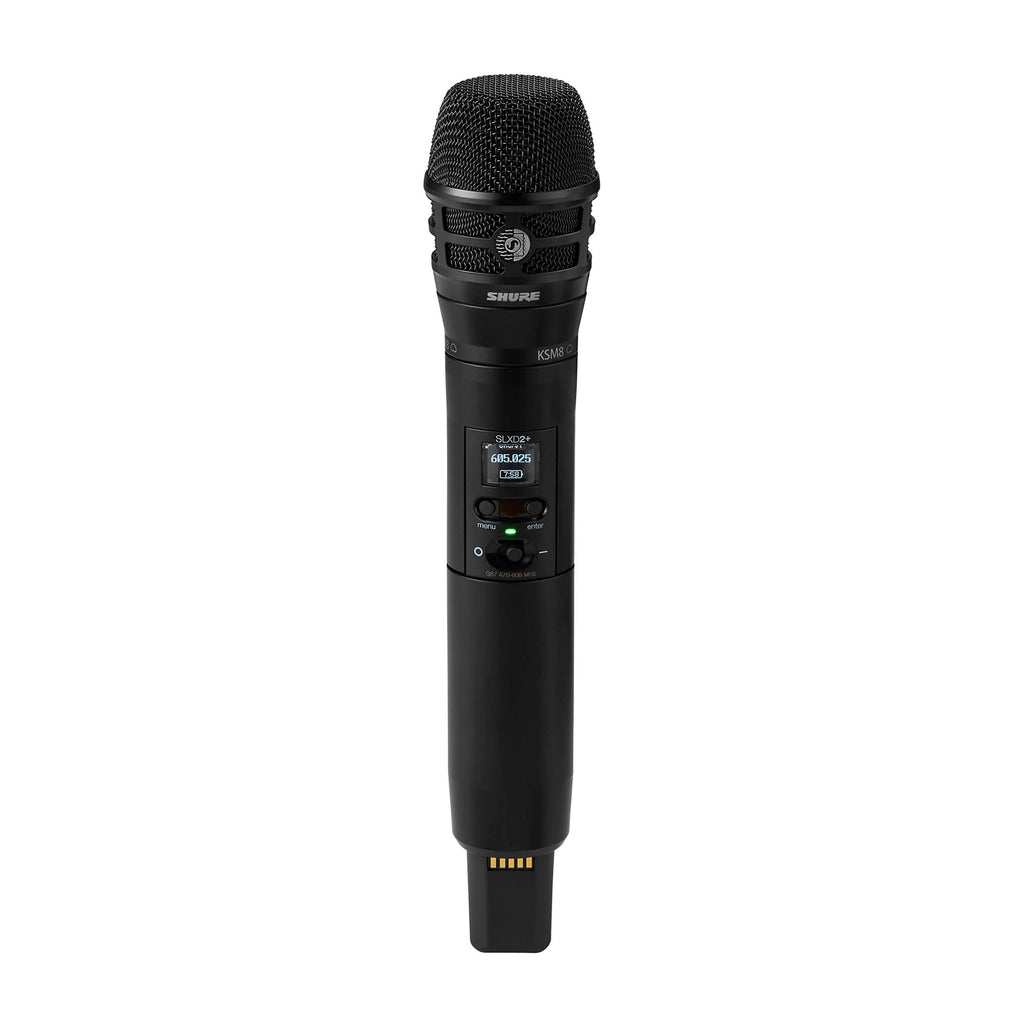

The Shure SLXD2+TA/K8B Digital Wireless Handheld Transmitter with KSM8 Cardioid Capsule (TAA Compliant) - G57: 470 to 608 MHz is designed for live performance, installed sound, and houses of worship. It features a rugged aluminum, stage-ready build with a backlit LCD screen for essential system information. This version is equipped with the KSM8 Dualdyne cardioid dynamic capsule, which uses an innovative dual-diaphragm design to minimize proximity effect and maintain consistent sound even with varying mic distance. It delivers condenser-like clarity with the reliability and feedback control of a dynamic microphone, making it ideal for both speech and live vocals.
High-Quality Audio and RF Performance
When paired with an SLX-D+ receiver, the SLXD2+ provides transparent 24-bit digital audio with over 118 dB of dynamic range for clean and detailed sound reproduction. Its wide tuning bandwidth of up to 138 MHz (region dependent) allows for flexible frequency coordination and dependable operation across diverse venues. Built for demanding RF environments, the system supports high channel counts, making it suitable for scalable wireless setups.
Advanced Control, Flexibility, and Power Options
The SLXD2+ includes ShowLink Ease technology for real-time, two-way communication with compatible receivers via BLE, enabling automatic frequency synchronization and remote control of settings such as RF power and locks. It also supports over-the-air firmware updates and interference management without needing to handle the microphone. The interchangeable capsule design allows compatibility with options like Beta 58A, Beta 87A, SM58, and Nexadyne capsules. For power, it operates up to 8 hours on two AA batteries or optional SB903 rechargeable batteries, providing accurate runtime readouts when used with compatible charging accessories.
Product Specification:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: Yes: Android & iOS
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 mW
Antenna: Fixed Single-Band Helical
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power:
N/A: Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Off/On Switch
Auto-Level/Gain: No
Sync Method: IR
Display: Backlit LCD
Microphones:
Microphone Type: 1x Handheld with Interchangeable Capsule
Polar Pattern: Cardioid
Frequency Response: 40 Hz to 16 kHz
Sensitivity: -51.5 dBV/Pa
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)
Transmitter Battery Life: 8 Hours
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: Aluminum
Product Dimensions: 6.9 x 1.5" / 176 x 37.1 mm
Product Weight: 1 lbs.
ShippingDimensions: 11 x 5.28 x 3.15 inch
Shipping Weight: 1.5 lbs.
